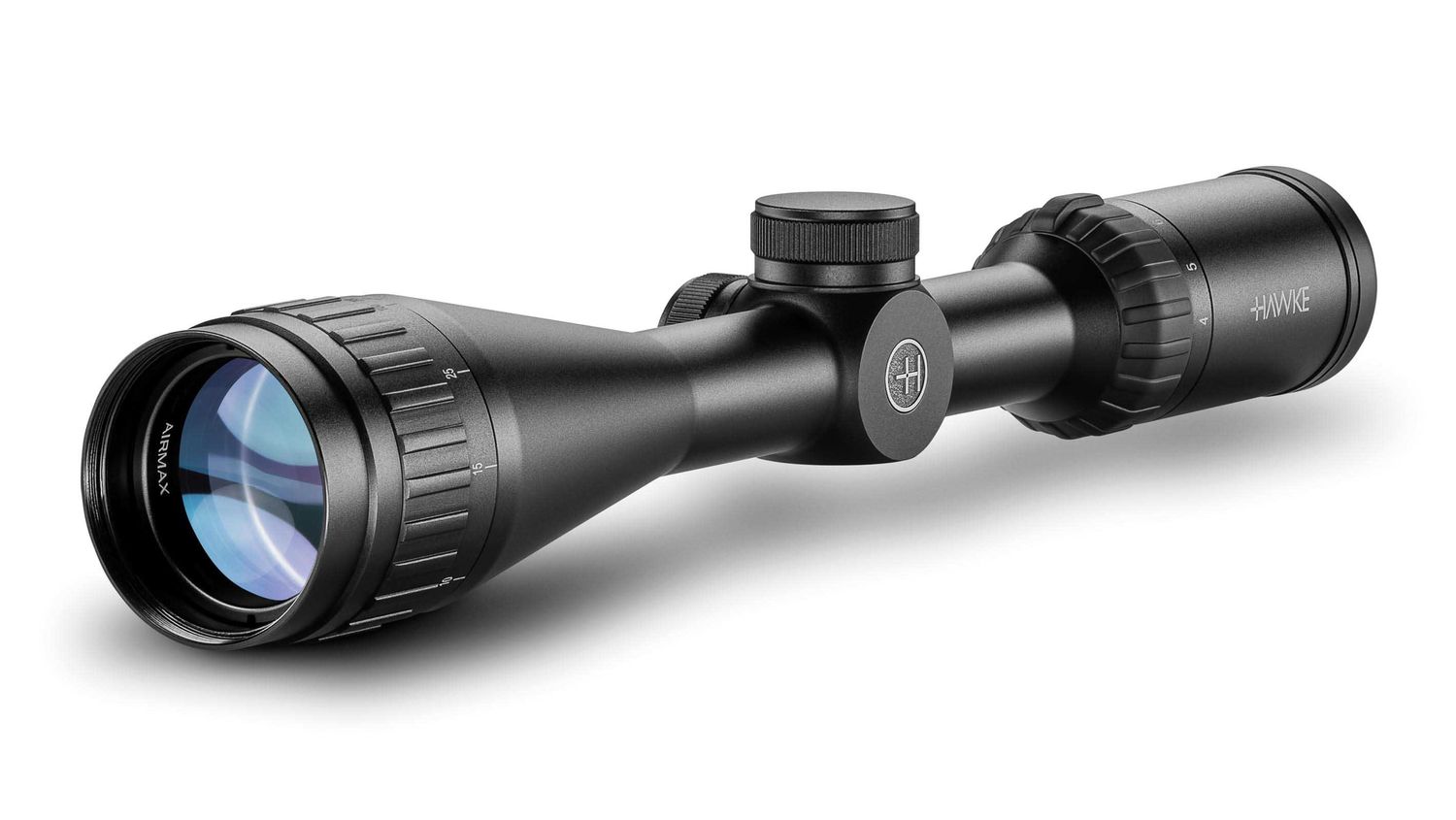

Hawke Airmax AO 4-12x40 Riflescope AMX Reticle
Product Details
The Hawke Airmax AO 4-12x40 Riflescope - AMX Reticle Enhances your competitive edge in precision and low-light target acquisitions. The riflescope is optimized for airguns and features a 40mm objective that will collect more light at dawn and dusk than an average scope. The fully multi-coated optics offers 16 layers of anti-reflection coatings to increase resolution, contrast, and image brightness. Located in the 2nd focal plane is an etched-on-glass AMX ranging duplex reticle. It is specially designed for airguns with bent trajectories and features 0.75 MOA dots on a thin crosshair with spacing of half mil-dot spacing. To further assist with precision aiming, the parallax effect can be corrected from 7.5 yd to infinity by using the adjustable objective ring. To compensate for wind and ballistic bullet drop, the riflescope offers 80 MOA of windage and elevation adjustment range and a 1/4 MOA per click impact point correction.
The lightweight and durable aluminum housing features a 1" single-piece maintube. It is filled with nitrogen for fogproof and waterproof performance. The overall design features a slender, unobtrusive shape and low-profile capped turrets. To ease the zooming process, the fast-focus eyepiece is outfitted with a high-torque knurled rubber zoom ring. To keep your scope's lenses protected from debris, dust, and dirt while it is not used, one objective lens cap and one ocular lens cap are also included.
AMX Reticle: Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.Half Mil Dot spacing on the lower post provides increased aim points for long shots. The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
Features
- Capped Low-Profile Turrets
- 1 Inch Mono-tube chassis
- Wide Angle
- 16 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
- AMX reticle designed for airguns
- Nitrogen purged
- Shockproof
- Waterproof
- Fog proof
- All calibre rated
- Hawke Warranty
Specifications
- Objective Lens: 40mm
- Reticle: AMX
- Parallax: Adjustable Objective
- Magnification: 4 - 12x
- Optical System: System H2
- Focal Plane: SFP (Second Focal Plane)
- Scope Tube: 1 Inch
- Field of View: 29.9 - 11ft @100yds | 10 - 3.7m @100m
- Field of View (°): 5.7 - 2.1
- Eye Relief: 3.5in | 90mm
- PX/Focus (Error free from): 10yds - ∞ | 9m - ∞
- Exit Pupil: 0.39 - 0.13″ | 10 - 3.3mm
- Click Value: 1⁄ 4MOA
- Elevation Turret Clicks (max): 80 MOA
- Windage Turret Clicks (max): 80 MOA
- Ocular Type: Fast Focus
- Power Selector: Rubber Coated Posi-Grip
- Lens Coating: Fully Multi-Coated - 16 Layers
- Length: 12.9in | 327mm
- Weight: 18.4oz | 522g
- Turret Type (Elevation): Capped. Low-Profile. Resettable
- Turret Type (Windage): Capped. Low-Profile. Resettable
