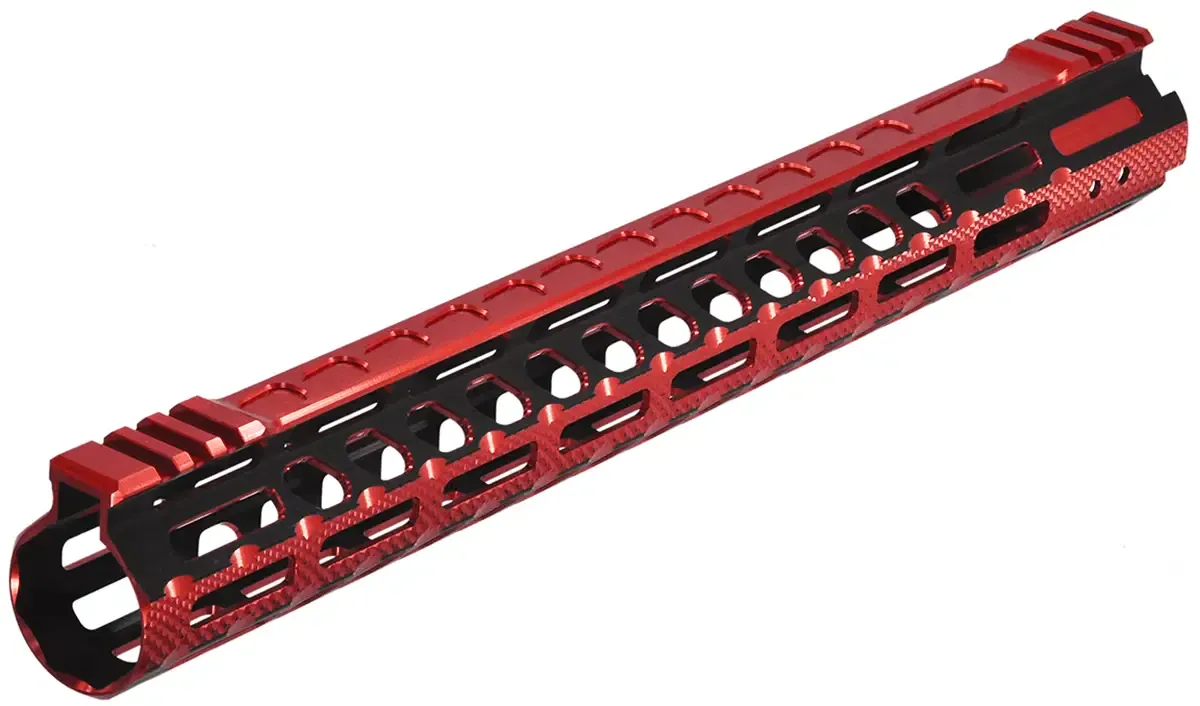

UTG PRO® M-LOK® AR15 15" Ultra Slim Rail, Black & Red 2-Tone

The UTG PRO® Ultra Slim handguard, with its new minimalist look and feel, features weight reduction lightening cuts and a reduced top Picatinny rail with 3 slots at the front and rear. The Ultra Slim is equipped with M-LOK® slots at the 3, 6, and 9 O'clock positions. A uniquely knurled surface on the left and right side of the handguard provides an aesthetically pleasing new look while providing addition grip traction for the user.

Features

• Proudly Designed and Made in USA
• 15" M-LOK® Ultra Slim Free Float Handguard with Proprietary Steel Barrel Nut Included
• Features 8 M-LOK® Slots on 3 Slot Tracks at the 3, 6 and 9 O'Clock Positions for Mounting M-LOK® Rails and Direct Accessories
• Compatible with Left or Right Handed Standard Mil-spec AR15 Upper Receivers
• Ultra Slim Design with Lightening Cuts Made Throughout the Handguard to Massively Reduce Weight, While Still Allowing for a High Level of Modularity
• Includes 2 M-LOK® Accessories, an 8-Slot Picatinny Rail Section and a QD Sling Swivel Adaptor, Ready to Use Right Out of the Box
• Integral Anti-rotation Tabs and a Steel Barrel Nut Provide a Secure and Seamless Installation with the Upper Receiver While Completely Preventing the Handguard From Rotating Under Heavy Use
• Ergonomically Grooved Handguard Surface and Overall Octagonal Profile Features Additional Left and Right Sided Grip Serrations
• 3-Slot Top Picatinny Rail Found at the Forward and Rearward of the Handguard
• Precision Machined from 6061-T6 Aircraft Grade Aluminum with a Matte Black Hard Coat Anodize
• Barrel Nut Wrench, Hardware, and Installation Instructions Included for Quick Out of the Box Installation
• Designed to Fit with Standard Gas Tube and Barrel Diameter Not Exceeding 1" Not Compatible with Piston System, Re-designed or Over-sized Upper Receivers

Specifications

• 922R Compliant: Yes
• Color(s): Black/Red
• Compatible with: AR15
• M-LOK Slots: 32 total (8 on the left, right, and bottom surfaces, plus 1 front and 1 rear on all 45° faces.)
• Made in USA: Yes
• Materials: 6061-T6 Aluminum
• Modular System: M-LOK®
• Patent: US PAT. 8806792
• Picatinny Slots: 6 Top (3 at front, 3 at rear)
• Surface Finish: Anodized
• Torque Specification: 35-60 ft-lbs (barrel nut) | 25 in-lbs (T20 Torx)
• Weight: 11.5 oz (326 g)
• Gas Tube Channel Height: 1.04 in (26.5 mm) from center of bore
• Gas Tube Channel Width: .44 in (11.2 mm)
• Height: 1.98 in (50 mm)
• Inner Diameter: 1.33 in (33.8 mm)
• Installed Length: 15 in (381 mm)
• Length: 15.3 in (389 mm)
• Width: 1.53 in (39 mm)

Parts Included

• 1 x UTG PRO® M-LOK® AR15 15" Ultra Slim Rail, Black & Red 2-Tone.
• 1 x Barrel Nut for Super Slim Free Float Handguards
• 1 x Locking Ring for Super Slim Free Float Handguards
• 1 x M-LOK® QD Sling Swivel Adaptor
• 1 x 8 Slot Rail For Super Slim M-LOK® Rail
• 1 x Barrel Nut Wrench
• 4 x Spacer Ring
• 7 x Button Head Torx Drive Screw
• 1 x T20 Torx Wrench
• 1 x Allen Wrench 3/32"
• 1 x Mount Users Manual
