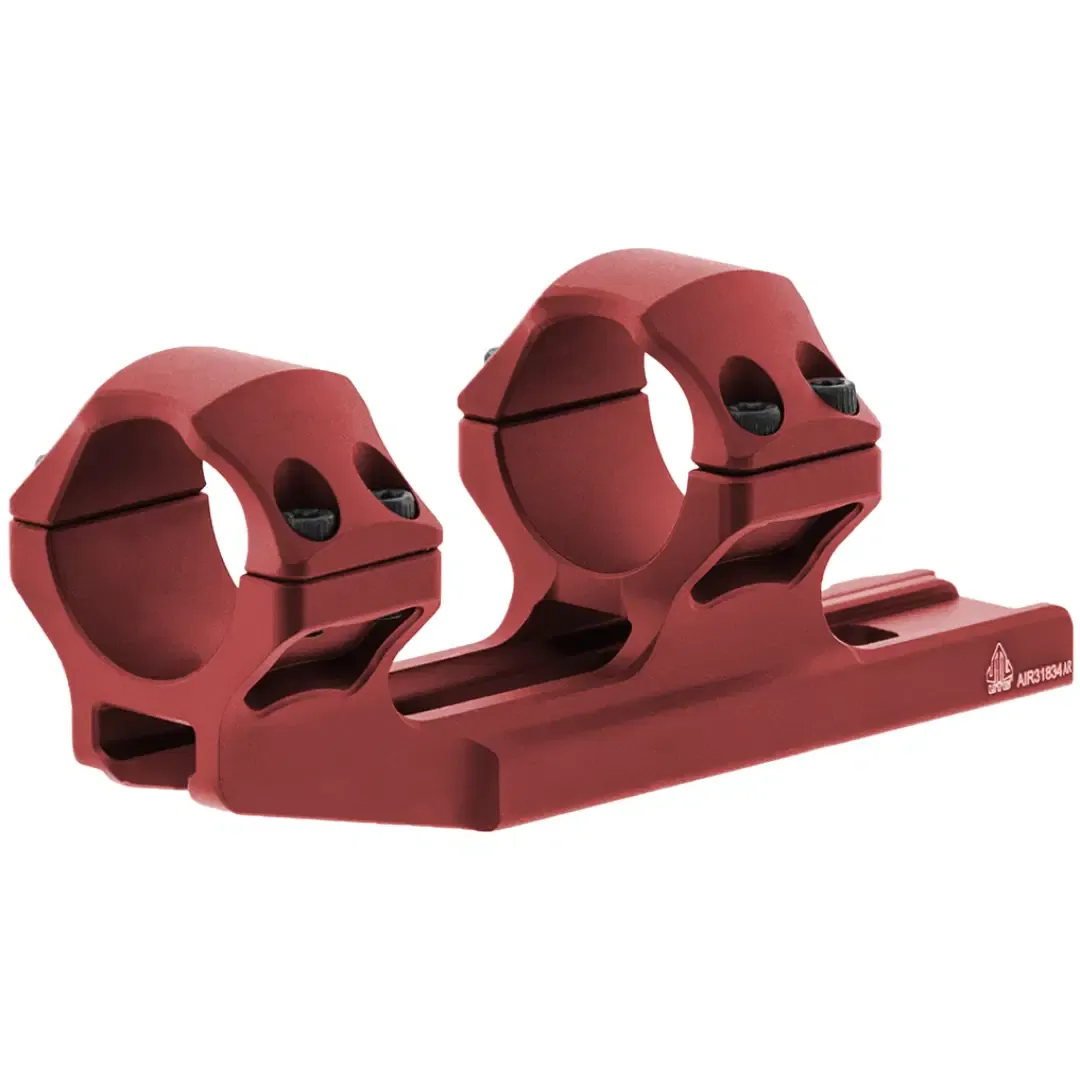

UTG ACCU-SYNC® 1" Medium Profile 34mm Offset Picatinny Rings, Red

UTG® ACCU-SYNC® 30mm Picatinny Cantilever Mount, 34 mm Offset, Medium Profile, Red.

Features

• UTG ACCU-SYNC® 30mm Medium Profile 34mm Offset Scope Ring Mount for a Precise Fit on MIL-STD-1913 Picatinny Rails
• Precision CNC Machined from Aircraft Grade Aluminum and Finished in a Red Anodize
• Significant Lightening Cuts to Massively Reduce Weight Without Compromising Durability
• Radiused Edges and Corners to Prevent Snagging, Scratching, or Tearing of Other Gear and for Effortless Access to Scope Windage and Elevation Turrets
• Single Mount Utilizes Locking Torx Screws and Square-shaped Integral Recoil Stops For a Secure Zero Hold
• 18mm Saddle Height, 34mm Offset Distance, 100mm Base Length, Medium Profile Fits 30mm Tube Optics with up to a 65mm Outer Objective Diameter
• Includes a T20 Torx Wrench for Simple and User Friendly Installation
• NOTE: We recommend to tighten the ring top screws with a torque value of about 25 inch-lb and the side plate screw with torque value of about 35 inch-lb.

Specifications

• Color(s): Red
• Compatible with: Picatinny
• Height Profile: Medium
• Materials: 6061-T6 Aluminum
• Mount Type: Picatinny
• Quick-detachable: No
• Required Picatinny Space: 12 slots
• Surface Finish: Anodized
• Torque Specification: 25 in-lbs (T20, Top Screws) | 35 in-lbs (T20, Side Plate)
• Weight: 5.1 oz (145 g)
• Base Length: 3.94 in (100 mm)
• Center Height: 1.30 in (33 mm)
• Inner Diameter: 30 mm
• Length: 5.28 in (134 mm)
• Max Fit Obj. Bell Dia: 2.56 in (65 mm)
• Offset Distance: 1.34 in (34 mm)
• Ring Distance (Inner): 1.73 in (44 mm)
• Ring Distance (Outer): 3.7 in (94 mm)
• Ring Width: .98 in (25 mm)
• Saddle Height: 0.71 in
• Saddle Height: .71 in (18 mm)
• Width: 1.84 in (46.7 mm)
