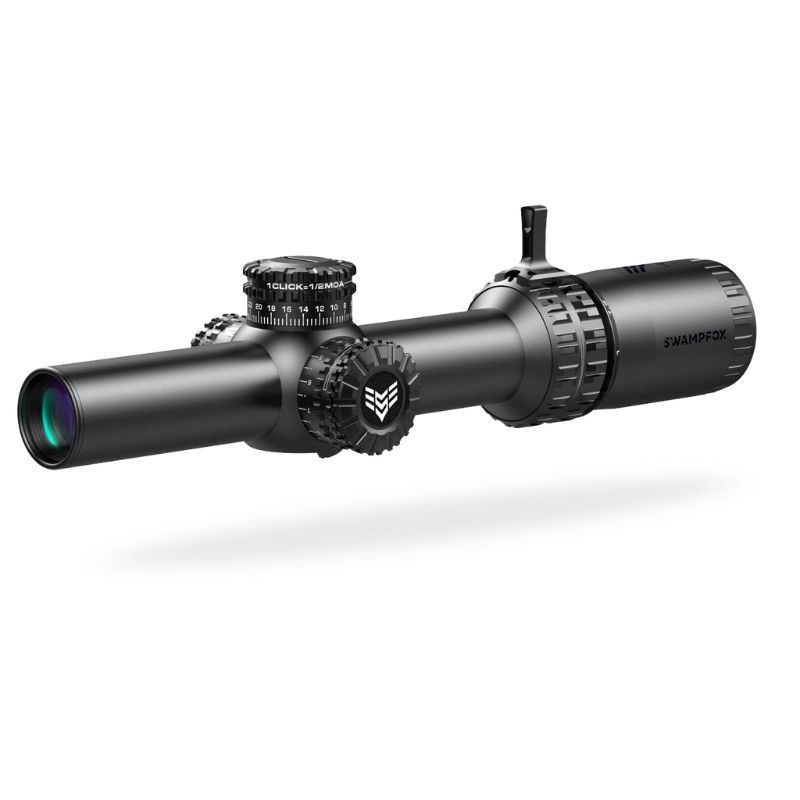

Arrowhead variable magnification rifle scope (1x–10x) from Swampfox Optics. It features a 24 mm diameter objective lens with multi-coated optics. For aiming, it uses a glass-etched Guerilla DOT BDC reticle with a backlit dot offering 12 brightness levels. The dot illumination is powered by a single CR2032 battery.
The scope body is made of 6061-T6 aluminum alloy, creating a compact design capable of withstanding shocks of up to 1100 G. The seals used allow the device to meet the IPX7 waterproof rating. Meeting the requirements of this certification means that the scope can remain submerged in water up to one meter deep for up to half an hour.
The device was designed for short- and medium-range operations, thanks to its smooth magnification adjustment. At a distance of 100 m, the scope provides a field of view of 35.2 m at minimum magnification and 3.5 m at maximum magnification. Additionally, the reticle can be adjusted horizontally and vertically within a range of 100 MOA, with 1/2 MOA per click. The focus adjustment knobs are easily accessible and produce a distinctive click when turned.
The user can adjust the diopter in the scope within a range of -2 to +2. The eye relief is set at 89 mm. Even when the lenses are regularly protected by caps, it is important to keep them clean for a clear image using dedicated optics cleaning tools. If necessary, the battery can be easily replaced by unscrewing the cap from the side tray on the scope housing.
FEATURES
| Magnification | 1-10x |
| Tube Diameter | 30mm |
| Objective Lens Diameter | 24mm |
| Exit Pupil (mm) | 8.0mm-2.3mm (1X-10X) |
| Eye Relief (in) | 3.46-3.54" (1X-10X) |
| FOV @ 100 Yards (ft) | 115.6-11.5' (1X-10X) |
| Click Value | 1/2 MOA or 0.1 MIL (reticle dependent) |
| Parallax Setting | 100 yds |
| Travel Per Rotation | 60 Clicks/ 30 MOA |
| Max Elevation Adjustment | 100 MOA |
| Max Windage Adjustment | 100 MOA |
| Lens Coating | Fully Multi-Coated/ Anti-fog/ Hydrophobic |
| Illumination | 12 Position Illumination Turret |
| Battery | Side-mounted CR2032 Battery |
| Reticle | BDC or MOA Glass Etched Illuminated |
| Reticle position | SFP (Second Focal Plane) |
| Magnification Required for Reticle Accuracy | 10x |
| Fast Focus Diopter | Yes, -2 to +2 |
| Turret Style | Push/Pull Locking Turrets with Zero Reset |
| Length | 10.91" |
| Weight | 20.36 oz |
| Waterproof Rating | IPX7 |
| Impact Resistance | 1,100 G Forces |
