Name: Pard Pantera Zoom Thermal Imaging Scope | Pro-Outdoor
Brand: PARD
SKU: PA6Z-25/50LRF
Price: 71739.13 ZAR
Availability: InStock

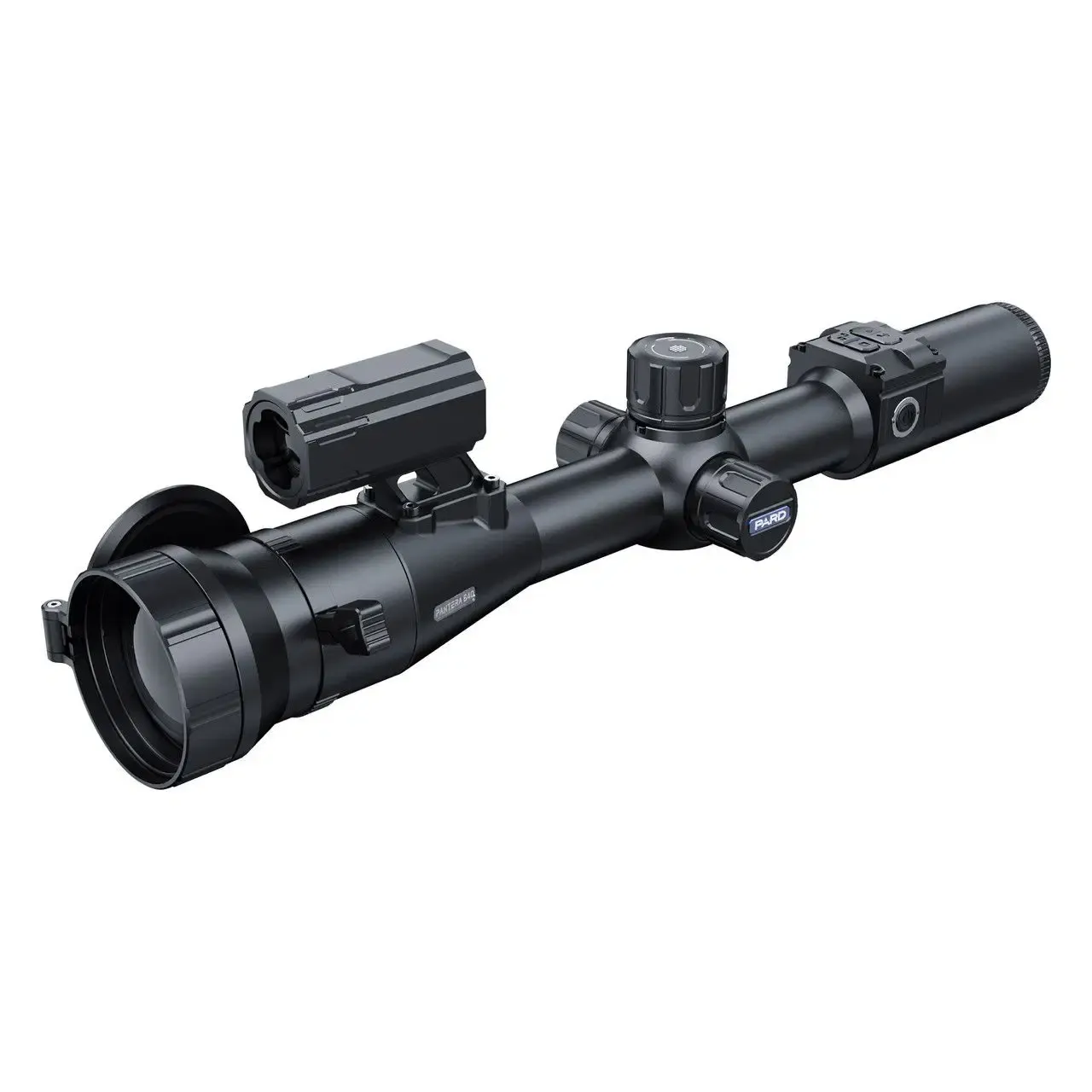

Pard Pantera Zoom Thermal Imaging Scope

Product Details

The Pantera 640-Zoom w/LRF features a 640×512 resolution sensor with 12μm pixel pitch and a high-sensitivity sensor (NETD ≤ 20mK) for crisp thermal imaging. Its optical zoom ranges from 1.3x to 2.5x, with an 8x digital zoom for extended viewing. The system includes a built-in laser range finder (LRF) with a 1200-yard range and integrated ballistic calculator, all displayed through the world’s first TRUE circular display with 100mm eye relief.

Features

Versatile Zoom, Tailored to Your Needs: Select from 1.3x or 2.5x optical base magnification to suit different engagement ranges. The 2/4/6/8× digital zoom enhances the ability to observe fine details—giving you the flexibility to adapt instantly in the field.
World's First True Circular Display: This device proudly features the first true circular display ever developed, setting a new global standard in optical design. Combined with an extended 100mm eye relief, it delivers a more immersive, comfortable, and natural viewing experience—perfect for demanding tactical or outdoor use.
Smart Ballistics, Reliable Rangefinding: This system pairs a powerful 1200-yard LRF with a built-in ballistic calculator for instant, intelligent aiming solutions. No guesswork—just real-time shooting data based on distance, bullet weight and so on. Ideal for precision shooters, hunters, and tactical professionals.

Specifications

Model: Pantera 480, Pantera 640
Classification: Thermal Imaging Scope
Type: Uncooled VOx(vanadium oxide)
Pantera 480 Resolution(pixel): 480*360
Pantera 640 Resolution(pixel): 640*512
Pixel Size(µm): 12*12
NETD: ≤20mK（0.02℃）
Frame Rate(Hz): 50
Pantera 480 Detection Distance(m): 1800/2600
Pantera 640 Detection Distance(m): 2600/3900
Pantera 480 Objective lens(mm): 35/50
Pantera 640 Objective lens(mm): 50/75
Pantera 480 Optical Magnification(x): 2.1/3.0
Pantera 640 Optical Magnification(x): 2.2/3.3
Digital Zoom(x): 2/4/6/8
Pantera 480 Field of View (HxV) Horizontal: 7.1°/5.0°
Pantera 640 Field of View (HxV) Horizontal: 7.0°/4.7°
Pantera 480 Field of View (HxV) Vertical: 7.1°/5.0°
Pantera 640 Field of View (HxV) Vertical: 7.0°/4.7°
Pantera 480 Field of View (HxV) Diagonal: 10.0°/7.0°
Pantera 640 Field of View (HxV) Diagonal: 9.9°/6.6°
Eye Relief(mm): 100
Diopter Adjustment(D): -5~+3
Type: IPS
Resolution(pixel): 800*800
Reticle Style: 6
Reticle Color: Red/White/Yellow/Green
Scene Mode: City/Rain/Forest
Image mode: WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
Photo Resolution(pixel): 1536*1536
Photo Format: .JPG
Video Resolution(pixel): 768*768
Video Format: .mp4
Storage(GB): Micro SD card(Max. 128)
Image Engine: Pard IREA
LRF detection range(m/yd): 1000/1200
Ballistic Calculator: Yes
PIP: Yes
Hot Track: Yes
Gyroscope: Yes
Recoil-activated recording: Yes
Loop Recording: Yes
E-compass: Yes
Shutter: Mechanical Shutter
Microphone: Yes
Firmware Upgrade: Yes
USB Tpye-C: Yes
HDMI Output: Yes
WiFi: Yes
Supported Apps: PardVision2
Battery Type: Lithium Ion 18650*1
Output Voltage(V): 3.7
Operating Time(h): ≤6
External power supply(V): Type-C
Degree of protection: IP67
Operating Temp(°C/°F): -30 ~ +55 / -22 ~ +131
Recoil Resistance(J): 6000
Housing: Aluminum Alloy
Objective Lens: All-glass multi-coated lens
Pantera 480 Product Dimension/with LRF(L * W * H, mm): "Pantera 480-35mm Lens: 352*93*82 Pantera 480-50mm Lens: 364*93*82"
Pantera 640 Product Dimension/with LRF(L * W * H, mm): "Pantera 640-50mm Lens： 364*93*82 Pantera 640-75mm Lens： TBD"
Pantera 480 N.W/pcs(with LRF&battery, g): "Pantera 480-35mm Lens: 622 Pantera 480-50mm Lens: 681.5"
Pantera 640 N.W/pcs(with LRF&battery, g): "Pantera 640-50mm Lens： 681.5 Pantera 640-75mm Lens： TBD"
