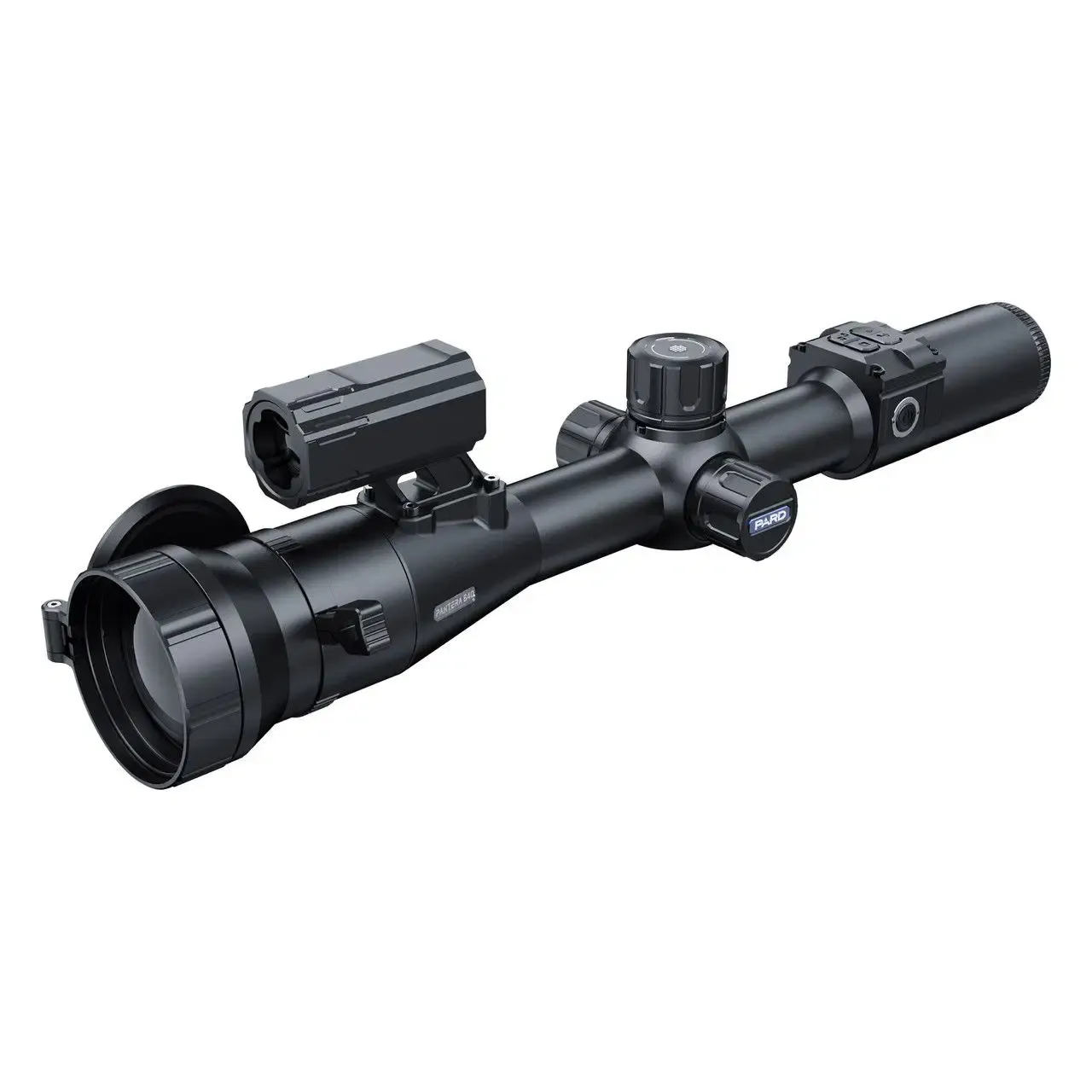

Pard Pantera 480 50mm Thermal Imaging Scope

The Pantera thermal scopes offer 100mm of eye relief in a lightweight, compact design with 25mm or 50mm lens options. Each includes a LRF effective to 1200 yards, feeding an onboard ballistics calculator for instant point-of-impact adjustments. Made from aircraft-grade aluminum, Pantera features a round 800x800 IPS display and mounts easily with included 30mm rings. Tested to 6000j recoil, it includes 2.1x–3.0x base magnification (model dependent), 2–8x digital zoom, and either a 480x360 or 640x512 thermal sensor, with target acquisition from 2400–5500 yards (2200m–5000m). All models use vanadium oxide sensors, 12μm pixel pitch, ≤20mK NETD, and a 50Hz refresh rate for high sensitivity in low contrast conditions. Features include six thermal display options, four reticle colors, six reticle styles, three scene modes, Ballistics Calculator, PIP mode, Internal Gyroscope, Recoil-Activated and Loop Recording, Hot Target Tracking, Electronic Compass, Mechanical Shutter, Integrated Microphone, and firmware updates via PARD.com. Pantera runs on a removable 18650 Li-Ion battery for up to 5 hours, operates in -22° to 131°F, is IP67 rated, and supports Bluetooth, JPG image capture, MP4 video recording, and storage to a 128GB micro SD card.

Features

Specifications

• Model: Pantera 480, Pantera 640
• Classification: Thermal Imaging Scope
• Type: Uncooled VOx(vanadium oxide)
• Pantera 480 Resolution(pixel): 480*360
• Pantera 640 Resolution(pixel): 640*512
• Pixel Size(µm): 12*12
• NETD: ≤20mK（0.02℃
• Frame Rate(Hz): 50
• Pantera 480 Detection Distance(m): 1800/2600
• Pantera 640 Detection Distance(m): 2600/3900
• Pantera 480 Objective lens(mm): 35/50
• Pantera 640 Objective lens(mm): 50/75
• Pantera 480 Optical Magnification(x): 2.1/3.0
• Pantera 640 Optical Magnification(x): 2.2/3.3
• Pantera 480 Field of View (HxV) Horizontal: 7.1°/5.0°
• Pantera 640 Field of View (HxV) Horizontal: 7.0°/4.7°
• Pantera 480 Field of View (HxV) Vertical: 7.1°/5.0°
• Pantera 640 Field of View (HxV) Vertical: 7.0°/4.7°
• Pantera 480 Field of View (HxV) Diagonal: 10.0°/7.0°
• Pantera 640 Field of View (HxV) Diagonal: 9.9°/6.6°
• Eye Relief(mm): 100
• Diopter Adjustment(D): -5~+3
• Type: IPS
• Resolution(pixel): 800*800
• Reticle Style: 6
• Reticle Color: Red/White/Yellow/Green
• Scene Mode: City/Rain/Forest
• Image mode: WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
• Photo Resolution(pixel): 1536*1536
• Photo Format: .JPG
• Video Resolution(pixel): 768*768
• Video Format: .mp4
• Storage(GB): Micro SD card(Max. 128)
• Image Engine: Pard IREA
• LRF detection range(m/yd): 1000/1200
• Ballistic Calculator: Yes
• PIP: Yes
• Hot Track: Yes
• Gyroscope: Yes
• Recoil-activated recording: Yes
• Loop Recording: Yes
• E-compass: Yes
• Shutter: Mechanical Shutter
• Microphone: Yes
• Firmware Upgrade: Yes
• USB Tpye-C: Yes
• HDMI Output: Yes
• WiFi: Yes
• Supported Apps: PardVision2
• Battery Type: Lithium Ion 18650*1
• Output Voltage(V): 3.7
• Operating Time(h): ≤6
• External power supply(V): Type-C
• Degree of protection: IP67
• Operating Temp(°C/°F): -30 ~ +55 / -22 ~ +131
• Recoil Resistance(J): 6000
• Housing: Aluminum Alloy
• Objective Lens: All-glass multi-coated lens
• Pantera 480 Product Dimension/with LRF(L * W * H, mm): "Pantera 480-35mm Lens: 352*93*82 Pantera 480-50mm Lens: 364*93*82"
• Pantera 640 Product Dimension/with LRF(L * W * H, mm): "Pantera 640-50mm Lens： 364*93*82 Pantera 640-75mm Lens： TBD"
• Pantera 480 N.W/pcs(with LRF&battery, g): "Pantera 480-35mm Lens: 622 Pantera 480-50mm Lens: 681.5"
• Pantera 640 N.W/pcs(with LRF&battery, g): "Pantera 640-50mm Lens： 681.5 Pantera 640-75mm Lens： TBD
