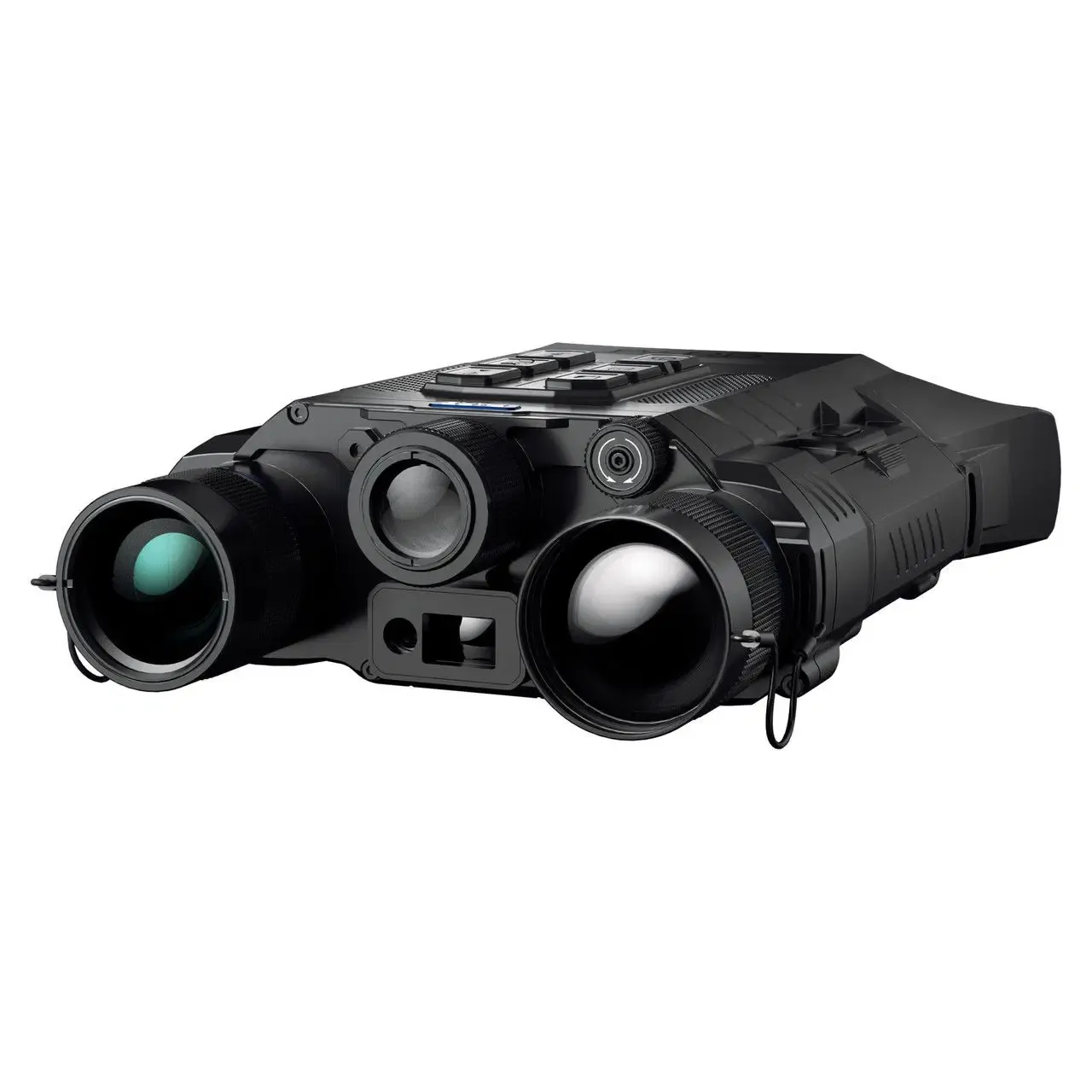

Name: Pard Osprey 480 Multi-spectral Binocular 35mm 940nm
Brand: PARD
SKU: OS4-35/50-940LRF
Price: 41521.74 ZAR
Availability: InStock

Pard Osprey 480 Multi-spectral Binocular 35mm 940nm

Product Details

The Osprey Multi-Spectral Binocular features a built-in laser rangefinder accurate to 1200 yards and high-resolution thermal sensors, 384x288 or 640x512, with ≤25mK sensitivity, combining advanced thermal and night vision in one device. It supports independent or simultaneous use with Picture-in-Picture mode and includes an 850nm IR illuminator reaching 350 yards. Recording is supported on a removable 128GB micro SD card. Powered by a replaceable 21700 Li-Ion battery, it delivers 6 hours of use. Additional features include a 35mm lens, multiple image modes, 25mm eye relief, 640x480 video, electronic compass, microphone, Wi-Fi, and IP67 weatherproof aluminum alloy construction.

Features

Sharper Vision, Enhanced Detail: With a 384x288, or 640x512 thermal resolution sensors, experience clearer images, finer details, and more accurate target identification—especially in challenging conditions.
Industry-Leading Sensitivity (NETD ≤ 20mK): The advanced sensor with NETD ≤ 20mK offers superior thermal sensitivity, enabling detection of even the faintest heat signatures. It reveals fine details that ordinary sensors miss—giving you an edge in critical moments.
Long-Range Accuracy with 1200yd LRF: Measure distances precisely up to 1200 yards with the built-in LRF. It ensures you stay informed and on target—no matter how far your objective lies.

Specifications

Model: Osprey 480, Osprey 640
Classification: Multi-spectral Binocular
Thermal Sensor Type: Uncooled Vox (vanadium oxide)
Osprey 480 Resolution(px): 480*360
Osprey 640 Resolution(px): 640*512
Pixel Size(µm): 12*12
NETD: ≤20mK（0.020℃)
Frame Rate(Hz): 50
Detection Distance(m): 1800
Thermal Sensor Image Engine: Pard IREA
Objective Lens(mm): 35
Osprey 480 Optical Magnification(x): 2.4
Osprey 640 Optical Magnification(x): 1.8
Digital Zoom(x): 2/4/6/8
Osprey 480 Field of view (HxV) Horizontal: 9.4°
Osprey 640 Field of view (HxV) Horizontal: 12.5°
Osprey 480 Field of view (HxV) Vertical: 7.1°
Osprey 640 Field of view (HxV) Vertical: 10.0°
Osprey 480 Field of view (HxV) Diagonal: 11.8°
Osprey 640 Field of view (HxV) Diagonal: 16.0°
Thermal Sensor Focus Range: 3m-∞
Thermal Sensor Display Type: LCD
Resolution(px): 640*480
Scene Mode: City/Rain/Forest
Image Mode: WT-HOT/BK-HOT/EDGE/RD-HOT/IN-
Eye Relief(mm): 5
Diopter adjustment(D): -5~3
Osprey 480 Resolution(px): 2688*1520
Osprey 640 Resolution(px): 2688*1520
Pixel Size(µm): 2.9
Sensitivity(lux): 0.001
Frame Rate(Hz): Color:60/Mono:30
Visible Light Sensor Image Engine: Pard IREA
Objective Lens(mm): 50
Optical Magnification(x): 3.5
Digital Zoom(x): 2/3
Field of view (HxV) Horizontal: 6.4°
Field of view (HxV) Vertical: 4.8°
Field of view (HxV) Diagonal: 8°
Visible Light Sensor Focus Range: 3m-∞
Visible Light Sensor Display Type: LCD
Visible Light Sensor Display Resolution(px): 640*480
Visible Light Sensor Display Scene Mode: City/Rain/Forest
Visible Light Sensor Display Image Mode: WT-HOT/BK-HOT/EDGE/RD-HOT/IN-
Visible Light Sensor Display Eye Relief(mm): 25
Visible Light Sensor Display Diopter adjustment(D): -5~3
Photo Resolution(px): Thermal: 2048*1536/Night Vision: 2048*1536
Photo Format: .JPG
Video Resolution(px): Thermal: 1024*768/Night Vision: 1920*1440
Video Format: .mp4
Storage: Micro SD card (128 GB,Max)
LRF Detection Range: 1000m/1200yd
PIP: Yes
Gyroscope: Yes
Loop Recording: Yes
E-compass: Yes
Shutter: Mechanical shutter
Microphone: Yes
Firmware Upgrade: Yes
USB Tpye-C: Yes
HDMI Output: Yes
WiFi: Yes
Supported Apps: PardVision2
Battery Type: Lithium Ion 21700*1
Output Voltage(V): 3.7
Operating Time(h): ≤6
External Power Supply: Type-C
Protective Class: IP67
Operating Temp(°C/°F): -30 ~ +55 / -22 ~ +131
Recoil Resistance(J): 6000
Objective lens: All-glass multi-coated lens
Product dimension (with IR illuminator&LRF, L x W x H): 220*137*58
N.W/pcs(with LRF&battery, g): 704.5
