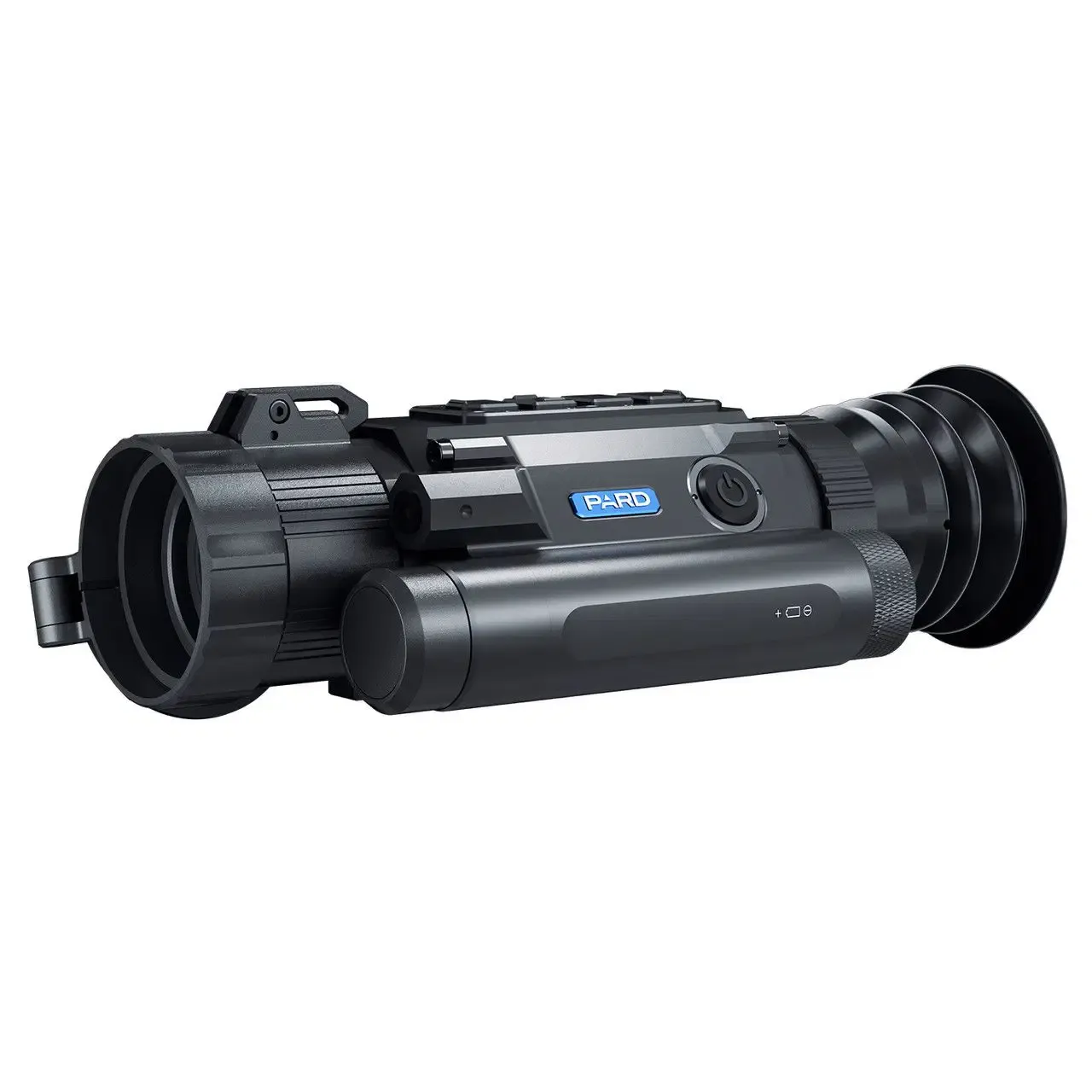

Pard Ocelot 256 Thermal Imaging Scope
SKU OC2-19
R13 695.65
Sold out
Sold out
Save this product for later
Pard Ocelot 256 Thermal Imaging Scope
Product Details
The Ocelot 256 19mm thermal monocular offers a compact and ergonomic design, weighing just 14.8 ounces and measuring 182 × 68 × 79mm for easy handling in the field. Equipped with a high-sensitivity sensor (NETD ≤ 25mK), it delivers clear thermal images even in low-contrast environments. The variable magnification ranges from 3.2x to 25.6x, providing flexibility for both close-up observation and long-range spotting.
Features
- Ultra-Compact and Lightweight Design: Weighing just 14.8oz and measuring 182x68x79mm, this device is an ultra-compact design for easy carry. Perfect for field missions or mobile tasks, it minimizes bulk without sacrificing functionality—ideal when space and efficiency are important.
- Crystal-Clear Thermal Imaging: Featuring a high-sensitivity sensor with NETD ≤ 25mK, the device delivers exceptionally sharp thermal images. It detects even the slightest temperature changes, providing enhanced clarity and detail—crucial for identifying targets, tracking movement, and making accurate decisions in challenging visual conditions.
- Flexible Magnification Range: With 3.2x to 25.6x variable magnification, this device adapts seamlessly to various observation distances. Whether scanning wide terrain or zooming in for close-up detail, users enjoy smooth transitions and precise focus—ideal for target identification.
Specifications
- Type: Uncooled VOx(vanadium oxide)
- Resolution(pixel): 256*192
- Pixel Size(µm): 12*12
- NETD: ≤25mK（ 0.025℃)
- Frame rate(Hz): 50
- Human Detection Distance(m): 900
- Objective Lens(mm): 19
- Optical Magnification(x): 3.2
- Digital Zoom(x): 2/4/6/8
- Field of View (Horizontal): 9.2°
- Field of View (Vertical): 6.9°
- Field of View (Diagonal): 11.5°
- Focus range: 3m-∞
- Diopter adjustment(D): -5~5
- Eye Relief(mm): 30
- Type: OLED
- Resolution(pixel): 1024*768
- Reticle Style: 5
- Reticle Color: 4(Red/White/Yellow/Green)
- Scene Mode: City/Rain/Forest
- Image Mode: WT-HOT/BK-HOT/IN-HOT/RD-HOT/SKY
- Photo resolution(pixel): 1024*768
- Photo Format: .JPG
- Video Resolution(pixel): 1024*768
- Video Format: .mp4
- Image Engine: Pard IREA
- PIP: Yes
- Gyroscope: Yes
- Loop Recording: Yes
- E-compass: Yes
- Storage(GB): Built-in EMMC (32 GB)
- Shutter: Mechanical shutter
- Microphone: Yes
- Firmware Upgrade: Yes
- USB Type-C: Yes
- WiFi: Yes
- Supported Apps: PardVision2
- Battery Type: Lithium Ion 18650
- Output Voltage(V): 3.7
- Operating Time(h): ≤5
- External Power Supply: Type-C
- Protective Class: IP67
- Operating Temp(°C/°F): -30 ~ +55 / -22 ~ +131
- Housing: Aluminium Alloy
- Objective Lens: All-glass multi-coated lens
- Product Dimension(with LRF, L * W * H, mm): 180*65*40
- N.W/pcs(with LRF&battery, g): 420
