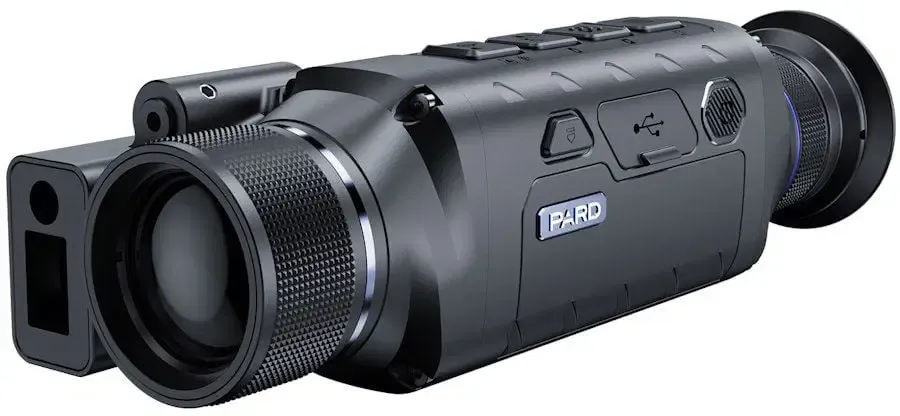

Pard Leopard 640 Thermal Imaging Monocular 35mm

Introducing the Pard Leopard 480 Thermal Imaging Monocular - 35mm Lens. A state-of-the-art device tailored for those requiring effective thermal imaging in a compact and portable format. It features a robust 480 x 360 resolution sensor made from uncooled VOx (vanadium oxide), offering remarkable sensitivity of less than 20mK. With a 35mm objective lens, the monocular is capable of detecting objects at distances of up to 1200 meters, making it ideally suited for applications such as wildlife observation, search and rescue operations, and tactical assessments. Its IP67 rating ensures protection against harsh environmental conditions, including dust and water immersion, allowing reliable operation in a variety of weather scenarios.

Introducing the Pard Leopard 640 Thermal Imaging Monocular. A cutting-edge device built for those requiring high-resolution thermal imaging in a compact and lightweight package. With a 640 x 512 resolution, this monocular features an advanced sensor that utilises uncooled VOx (vanadium oxide) technology, providing exceptional thermal sensitivity of less than 20mK. This allows users to detect minute temperature differences in their surroundings, with a remarkable detection distance of up to 1800 meters. Available with a 35mm objective lens, the monocular is suitable for various applications, including wildlife observation, search and rescue operations, and security assessments. The IP67 rating guarantees its durability against dust and water, making it an ideal partner for outdoor adventures.

Incorporating advanced optics and display technology, the Pard Leopard 640 includes a 1920 x 1080 pixel AMOLED display that ensures sharp and vivid images. Users can switch between 6 image modes and 3 scene modes-City, Rain, and Forest-to adapt to different environments, making it exceptionally versatile. With 2.2x optical magnification complemented by a 2/4/6/8 digital zoom, this monocular allows users to focus on distant subjects with clarity. Adding to its functionality, features like Picture-in-Picture (PIP), a built-in gyroscope for image stabilisation, and a mechanical shutter enrich the user experience, while loop recording and Hot Track capabilities offer additional utility for monitoring and documentation.

Designed for convenience, the Pard Leopard 640 operates on a removable and rechargeable 18650 lithium-ion battery, providing up to 6 hours of runtime. Connectivity options such as USB Type-C, HDMI output, and Wi-Fi allow users to transfer data and connect to the PardVision2 app for enhanced functionality. The device is constructed from a robust combination of aluminium alloy and composite materials, ensuring both durability and lightweight portability at just 360g. Measuring 169 x 58 x 48mm, the Pard Leopard 640 is designed for easy handling and transport, making it a premium choice for anyone in need of advanced thermal imaging capabilities on the go.

Features

• WT-HOT, BK-HOT, EDGE, RD-HOT, IN-HOT, SKY
• 1920 x 1080 AMOLED Display
• -/< 6h of max battery life
• 640 x 512 resolution
• 35mm lens
• NETD -/< 20mk sensitivity
• Ip67 rating
• Super tiny and compact design
• 6 image modes
• 3 scene modes
• Removable & rechargeable 18650 li-ion battery
• Stand by mode

Specifications

Sensor

• Type: Uncooled VOx (vanadium oxide)
• Resolution (Pixel): 640 x 512
• Pixel Size (Um): 12 x 12
• Netd (Mk): -/< 20 mK (0.02C)
• Frame Rate (Hz): 50
• Detection Distance (M): 1800

Optics

• Objective Lens (Mm): 35
• Optical Magnification (X): 2.2
• Digital Zoom (X): 2/4/6/8
• Field Of View (Horizontal): 12.5
• Field Of View (Vertical): 10.0
• Field Of View (Diagonal): 16.0
• Eye Relief (Mm): 20
• Diopter Adjustment (D): -5 - 5

Display

• Type: AMOLED
• Resolution (Pixel): 1920 x 1080
• Scene Mode: City, Rain, Forest
• Image Mode: WT-HOT, BK-HOT, EDGE, RD-HOT, IN-HOT, SKY

Photo / Video

• Photo Resolution (Pixel): 1440 x 1080
• Photo Format: .JPG
• Video Resolution (Pixel): 1440 x 1080
• Video Format: .mp4
• Storage (Gb): Micro SD card (Max. 128GB)
• Image Engine: Pard IREA

Main Function

• PIP: Yes
• Gyroscope: Yes
• Loop Recording: Yes
• Hot Track: Yes
• E-Compass: Yes
• Shutter: Mechanical shutter
• Microphone: Yes
• Firmware Upgrade: Yes

Connections

• USB Type-C: Yes
• HDMI Output: Yes
• Wi-Fi: Yes
• Supported Apps: PardVision2

Power Supply

• Battery Type: Lithium-ion 18650x1
• Output Voltage (V): 3.7
• Operating Time (H, Max): -/<6
• External Power Supply (V): USB Type-C

Environmental Characteristic

• Degree Of Protection: IP67
• Operating Temp (C/F): -30 - +55 / -22 - +131

Material

• Housing: Aluminium Alloy+Composite
• Eyepiece: All-glass multi-coated lens

Measurement

• Product Dimension/With LRF (L X W X H, Mm): 169 x 58 x 48
• N.W/Pcs (With Lrf & Battery, G): 360
