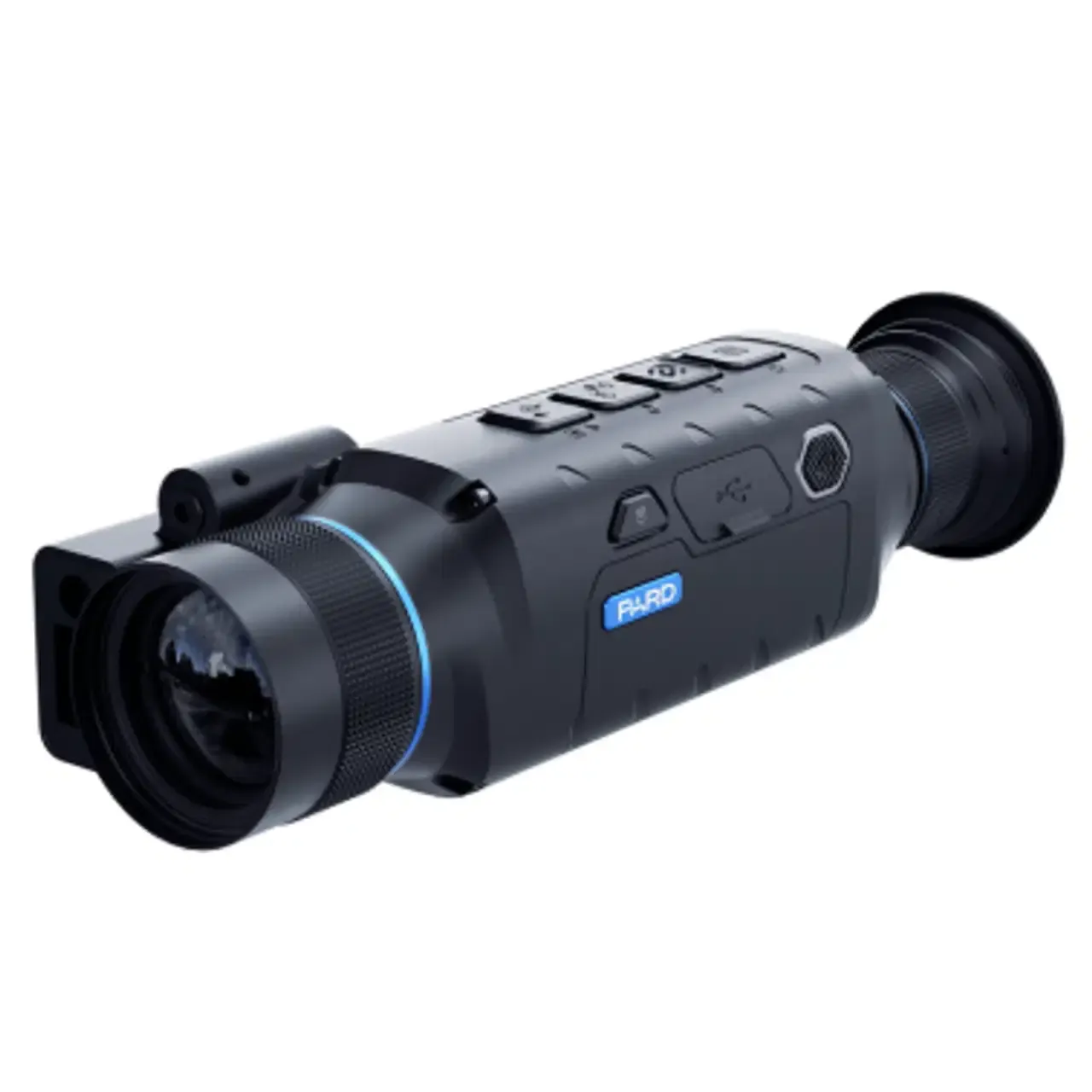

Pard Leopard 480 Laser Rangefinder Thermal Imaging Monocular 35mm

The Pard Leopard 480 LE4-35 LRF is a highly capable thermal monocular built for users who demand performance, portability, and precision in one compact device. Equipped with a high-sensitivity VOx thermal sensor, a crisp AMOLED display, and an integrated laser rangefinder, this monocular is ideal for hunters, security professionals, and outdoor enthusiasts who require real-time detection, measurement, and recording in any environment.

The Leopard thermal monoculars are Pard’s latest innovation in handheld thermal imaging, introduced in 2024. Designed to be lightweight yet rugged, these devices offer options with or without integrated LRFs and are available with both 480x360 and 640x512 resolution sensors. All models feature intuitive controls, compact form factors, and advanced imaging powered by the Pard IREA engine. The Leopard series is suited for wildlife observation, tactical use, and search & rescue operations in diverse conditions.

The Leopard 480 LE4-35 LRF is fitted with a 480x360 resolution VOx thermal sensor boasting a 12 µm pixel pitch and NETD ≤20 mK, ensuring thermal detail clarity even in fog, rain, or darkness. Paired with a 35mm objective lens, this monocular delivers an optical magnification of 2.8x, with a detection range of up to 1800 meters and an angular field of view of 16.4° diagonal.

The unit integrates a precise laser rangefinder (LRF) with a measuring distance of up to 1000 meters, making it ideal for accurate distance estimation in the field. The 1920x1080 AMOLED display offers high-definition visuals with selectable scene modes (City, Rain, Forest) and six thermal palettes, including White Hot, Black Hot, Red Hot, Iron Hot, Edge, and Sky.

Advanced features like PIP (picture-in-picture), hot tracking, gyroscope, mechanical shutter, and e-compass elevate the device’s real-world performance. It supports photo and video capture at 1440x1080 resolution, stored on a microSD card (up to 128GB). Connectivity includes USB Type-C, HDMI output, and Wi-Fi streaming through the PardVision2 app.

Powered by a standard 18650 Li-Ion battery, the Leopard LE4-35 LRF provides up to 6 hours of operation and supports charging via USB Type-C. The body is made from aluminum alloy and composite materials, rated IP67 for waterproof and dustproof protection, and weighs only 360g including LRF and battery.

Features

• 480x360 VOx uncooled thermal sensor with 12 µm pixel pitch
• NETD ≤20 mK for high thermal sensitivity
• 35mm objective lens, 2.8x optical magnification
• Detection range: up to 1800 meters
• Digital zoom: 2x / 4x / 6x / 8x
• Field of view: 16.4° diagonal (35mm)
• Integrated laser rangefinder: 1000 meters range
• 1920x1080 AMOLED display with multiple color and scene modes
• PIP, hot tracking, e-compass, mechanical shutter
• Photo/video capture at 1440x1080 resolution (.JPG / .MP4)
• MicroSD card support up to 128GB (SD Card not included)
• USB Type-C, HDMI output, and Wi-Fi via PardVision2
• Compact & lightweight: 360g with LRF & battery
• IP67 waterproof and dustproof rating

Specifications

General properties

• Manufacturer: PARD
• Thermal Monocular Series: PARD Leopard

• Made in: China

• In production since: 2024

• Warranty: 3 years

• SKU: PARD-LE4-35-LRF

Optical properties

• Variable magnification: No

• Magnification.: 3.50 x

• Minimal magnification.: 3.50 x

• Maximum magnification.: 3.50 x

• Diopter range: -5/+5 dpt

• Lens diameter.: 35.00 mm

• Field of view: 163.90 m/1000m

• Field of view (deg.): 9.40 °

• Max. field of view: 163.90 m/1000m

• Eye relief: 20.00 mm

• Range of detection: 1,800.00 m

Thermal sensor properties

• Thermal sensor type: VOx Uncooled

• Thermal sensor resolution: 480x360

• Thermal sensor pixel count: 0.17 MP

• Pixel pitch: 12.00 μm

• NETD: 20.00 mK

• Refresh Rate: 50.00 Hz

• Calibration mode: Shutter

Display properties

• Display type: AMOLED

• Screen Resolution: 1920x1080

• Display pixel count: 2.07 MP

Recording properties

• Image Capture: Yes

• Image Resolution: 2048x1536

• Video recording: Yes

• Video resolution: 1024x768

• Video output: Yes

Rangefinding properties

• Maximal rangefinder range: 1,000.00 m

• Measurement increment: Meter, Yard

Physical properties

• Length: 169.00 mm

• Width: 58.00 mm

• Height: 48.00 mm

• Weight: 360.00 g

• Material: Aluminium

• Working temperature range: -30°C to +55°C

• Power Supply: 18650

• Battery life: 6.00 h

• Color: Black

Special features

• Waterproof: Yes

• Fogproof: Yes

• Special features: Fogproof, Shockproof, Waterproof

• Connectivity: Wifi

• Tripod adaptable: No

• Compass: No

• Built-in rangefinder: Yes

• Image stabilizer: No

• Automatic Brightness Control: No
