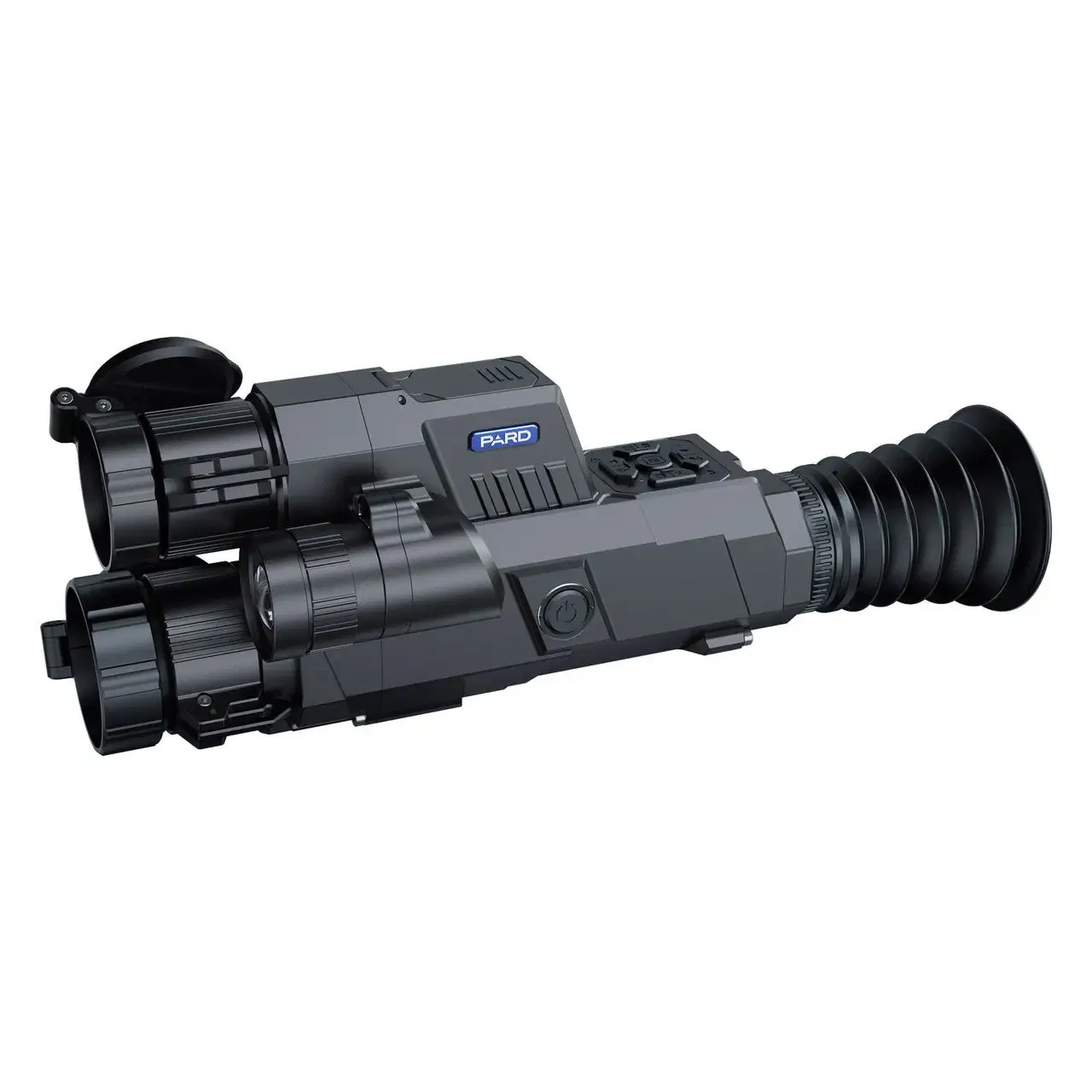

Pard Landsat 480 Compact Multi-spectral Rifle Scope 70mm 940nm
SKU LA4C-35/70-940LRF
R45 434.78
In stock
1
Save this product for later
Pard Landsat 480 Compact Multi-spectral Rifle Scope 70mm 940nm
Product Details
The Landsat4 and Landsat6 from PARD combine thermal detection, HD night vision, a ballistics calculator, and laser rangefinder in one unit. Landsat4 uses a 480x360 sensor with 2.1x optical magnification; Landsat6 uses a 640x512 sensor with 1.8x optical magnification. Both have 35mm multi-coated lenses, 12µm pixel pitch, ≤20mK NETD, and detect human-sized targets up to 1800yds (Landsat4) and 2100yds (Landsat6). Night vision is powered by a 2560x1440 CMOS sensor with .001 lux sensitivity and 2.9μm pixel pitch. The VLEA engine supports a 70mm lens, 4.3x base magnification, 2x digital zoom, and 3.4°x3.4° FOV. The 800x800 IPS LCD displays 6 reticle styles, 4 reticle colors, 3 scene modes, 6 thermal options, and 100mm eye relief. It supports photo (2592x1944) and video (1024x768 thermal / 1440x1080 night vision) recording to a 128GB micro SD card (not included). A 1200yd laser rangefinder feeds the ballistics calculator for automatic impact adjustments. PIP mode displays thermal and night vision together. Other features include Wi-Fi (via PardVision2 app), USB-C/HDMI output, IP67 rating, 6000J recoil resistance, -22℉ to 131℉ operation, HOT tracking, gyroscope, compass, microphone, loop recording, and a 26.5 oz (750g) aluminum chassis powered by removable lithium-ion 21700 batteries.
Features
- Detect Fast, Identify Clearly: Thermal imaging enables fast target detection and night vision to examine fine details with ultra-high clarity. This multi-spectral design gives you the speed of heat detection and the precision of visual confirmation—all in one device.
- Reliable Thermal Detection with 12μm Pixels: With a 480×360 sensor, or 640x512 on the 640 model, and resolution and 12μm pixel size, this sensor provides solid thermal performance. It captures temperature variations effectively, aiding in precise target recognition.
- Smart Ballistics, Reliable Rangefinding: This system pairs a powerful 1200-yard LRF with a built-in ballistic calculator for instant, intelligent aiming solutions. No guesswork—just real-time shooting data based on distance, bullet weight and so on. Ideal for precision shooters, hunters, and tactical professionals.
Specifications
- Model: Landsat 480 C, Landsat 640 C
- Classification: Multi-spectral Scope
- Type: Uncooled Vox(vanadium oxide)
- Landsat 480 C Resolution(pixel): 480*360
- Landsat 640 C Resolution(pixel): 640*512
- Pixel Size(µm): 12*12
- NETD: ≤20mK（0.02℃)
- Frame Rate(Hz): 50
- Landsat 480 C Human Detection Distance(m): 1800
- Landsat 640 C Human Detection Distance(m): 2100
- Image Engine: PARD IREA
- Landsat 480 C Objective lens(mm): 35
- Landsat 640 C Objective lens(mm): 45
- Landsat 480 C Optical Magnification(x): 2.5
- Landsat 640 C Optical Magnification(x): 2
- Landsat 480 C Digital Zoom(x): 2/4/6/8
- Landsat 640 C Digital Zoom(x): 2/4/6/8
- Landsat 480 C Field of View (HxV) Horizontal: 7.1°
- Landsat 640 C Field of View (HxV) Horizontal: 8.8°
- Landsat 480 C Field of View (HxV) Vertical: 7.1°
- Landsat 640 C Field of View (HxV) Vertical: 8.8°
- Landsat 480 C Field of View (HxV) Diagonal: 10.0°
- Landsat 640 C Field of View (HxV) Diagonal: 12.4°
- Thermal Sensor Focus range: 3m-∞
- Landsat 480 C Resolution(pixel): 2560*1440
- Landsat 640 C Resolution(pixel): 2560*1440
- Pixel Size(μm): 2.9
- Sensitivity(lux): 0.001
- Frame Rate(Hz): Color mode: 60 / Mono: 30
- Image Engine: PARD VLEA
- Objective Lens(mm): 50/70
- Optical Magnification(x): 4.4/6.1
- Digital Zoom(x): 2
- Field of View (HxV) Horizontal: 4.8°/3.4°
- Field of View (HxV) Vertical: 4.8°/3.4°
- Field of View (HxV) Diagonal: 6.8°/4.8°
- Visible Light Sensor Focus range: 3m-∞
- Type: IPS
- Resolution(pixel): 800*800
- Reticle Style: 6
- Reticle Color: 4(Red/White/Yellow/Green)
- Scene Mode: City/Rain/Forest
- Image Mode: WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
- Eye Relief(mm): 100
- Diopter Adjustment(D): -5~+3
- Photo Resolution(pixel): 1536*1536
- Photo Format: .JPG
- Video Resolution(pixel): Thermal: 768*768/Night Vision: 1440*1080
- Video Format: .mp4
- Storage(GB): Micro SD card (Max. 128)
- LRF Detection Range(yd/m): 1200/1000
- Ballistic Calculator: Yes
- PIP: Yes
- Gyroscope: Yes
- Loop Recording: Yes
- Recoil-activated recording: Yes
- E-compass: Yes
- Shutter: Mechanical shutter
- Microphone: Yes
- Firmware Upgrade: Yes
- IR power(W): 5
- IR Illuminating Level: 3 Levels
- IR Distance(m): 350
- IR Wavelength(nm): 850/940
- USB Type-C: Yes
- HDMI Output: Yes
- WiFi: Yes
- Supported Apps: PardVision2
- Battery type: Li-ion 21700*1
- Output Voltage(V): 3.7
- Operating Time(h): ≤6
- External Power Supply Type: Type-C
- Degree of Protection: IP67
- Operating Temp(°C/°F): -20 ~ +50 / -4 ~ +122
- Recoil Resistance(J): 6000
- Housing: Aluminum Alloy
- Objective lens: All-glass multi-coated lens
- Product Dimension(L * W * H, mm): 265*92*90
- Landsat 480 C N.W/pcs(with IR illuminator&LRF&battery, g): 750
- Landsat 640 C N.W/pcs(with IR illuminator&LRF&battery, g): 785
