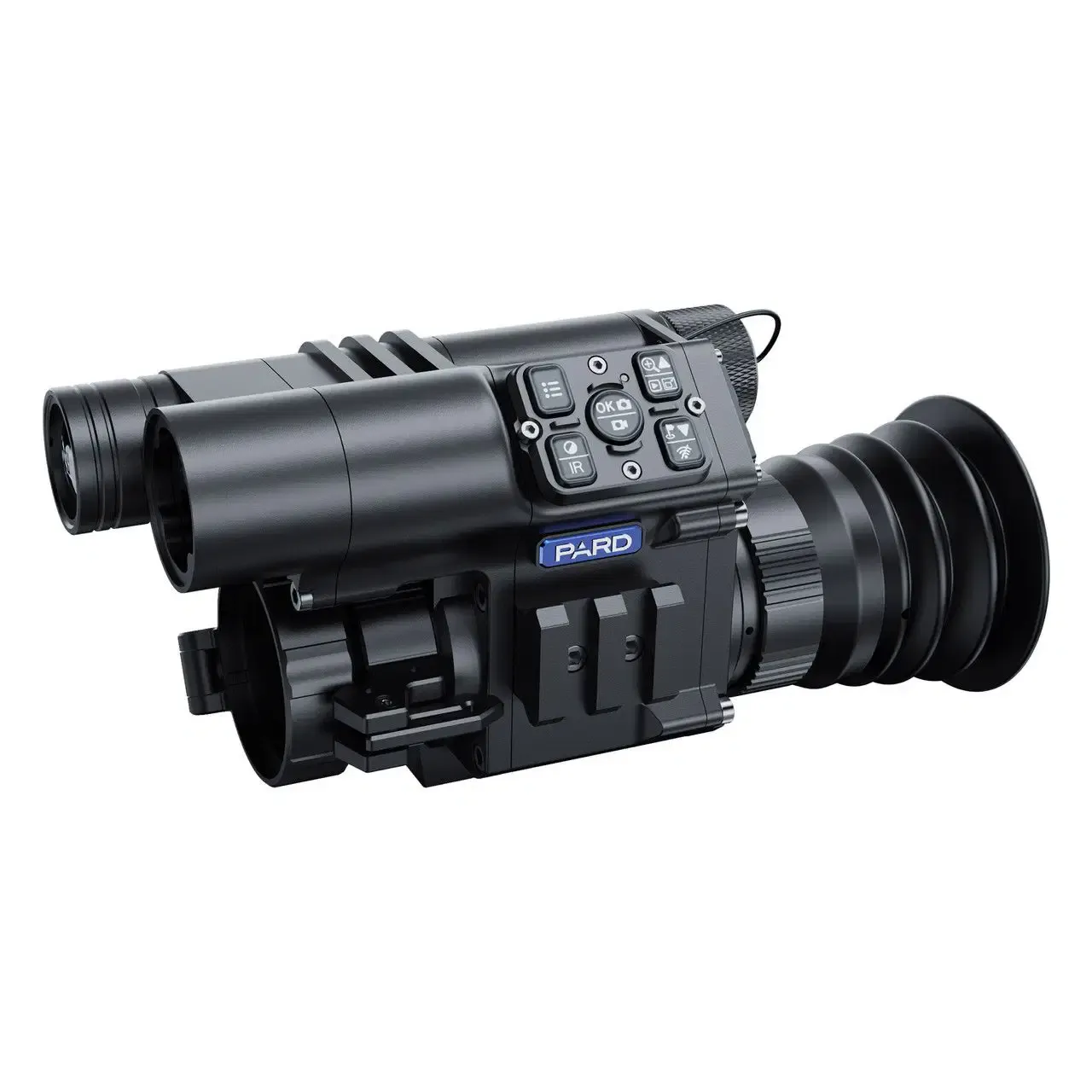

Pard FD1(LRF) Night Vision Front Clip-on 850nm

The PARD FD1-LRF Night Vision Clip-On quickly converts your daytime riflescope into a high-performance digital night vision system—no re-zeroing required. It features a 1920×1080 CMOS sensor, a sharp 1440×1080 OLED display, and an integrated laser rangefinder with ballistic calculator for accurate long-range shots. The built-in IR illuminator offers visibility up to 380 yards, while picture-in-picture zoom and recoil-activated video recording enhance usability. Compact, IP67-rated, and shockproof up to 6000 J, the FD1-LRF is a rugged, all-in-one solution for hunters and tactical users alike.

Features

• Extended 350m IR Illumination:
  With a powerful infrared emitter reaching up to 380 yards, this device ensures clear target visibility in total darkness. Perfect for night operations, it enhances detection range and maintains stealth without visible light exposure.
• Vivid OLED Visuals with Exceptional Clarity: The 1440x1080 OLED display offers enhanced brightness, sharper resolution, and superior contrast compared to traditional LCDs. It provides more lifelike imagery, making it easier to spot and identify targets.
• Sharp Vision & True Low-Light Performance: Delivering 1920x1080 resolution, this CMOS sensor captures ultra-clear images with fine detail. Its 0.001 lux sensitivity ensures visibility in extreme darkness—making it ideal for night patrols, wildlife observation, or tactical missions.

Specifications

• Type: CMOS
• Resolution(px): 1920*1080
• Pixel Size(µm): 2.9
• Frame Rate(Hz): Color:60/B&W:30
• Image Engine: PARD VLEA
• Optics FD1 Purpose: RifleScope/Monocular
• Optics FD1-LRF Purpose: Clip-on
• Objective Lens(mm): 30
• FD1 Optical Magnification(x): 3.5
• FD1-LRF Optical Magnification(x): 1
• FD1 Digital Zoom(x): 2
• FD1-LRF Digital Zoom(x): N/A
• Field of view (HxV) Horizontal: 7.9
• Field of view (HxV) Vertical: 5.9
• Field of view (HxV) Diagonal: 9.9
• FD1 Eye Relief(mm): 30
• FD1-LRF Eye Relief(mm): N/A
• FD1 Diopter Adjustment: - 5D~+5D
• FD1-LRF Diopter Adjustment: N/A
• Display FD1 Purpose: RifleScope/Monocular
• Display FD1-LRF Purpose: Clip-on
• Type: OLED
• Resolution(px): 1440*1080
• Reticle Style: 6
• FD1 Reticle Color: Red/White/Yellow/Green
• FD1-LRF Reticle Color: N/A
• Display Image Mode: Color /Mono
• Photo Resolution(px): 2592*1944
• Photo Format: .JPG
• Video Resolution(px): TBD
• Video Format: .mp4
• Storage: TF card(128 GB,Max)
• FD1 Main function Purpose: RifleScope/Monocular
• FD1-LRF Main function Purpose: Clip-on
• LRF Detection Range: 1200yd
• FD1 Ballistic Calculator: Yes
• FD1-LRF Ballistic Calculator: N/A
• FD1 PIP: Yes
• FD1-LRF PIP: N/A
• Self-motivated Recording: Yes
• Loop Recording: Yes
• Microphone: Yes
• IR Wavelength(nm): 850nm
• IR Illuminating Level: 3 Levels
• USB Tpye-C: Yes
• WiFi: Yes
• Supported Apps: PardVision
• Battery Type: Lithium Ion 18650
• Output Voltage(V): 3.7
• Operating Time(h): ≤8
• External Power Supply: Type-C
• Protective Class: IP67
• Operating Temp: --4℉~122℉/-20℃~50℃
• Recoil Resistance(J): 6000
• Housing: Aluminum Alloy
