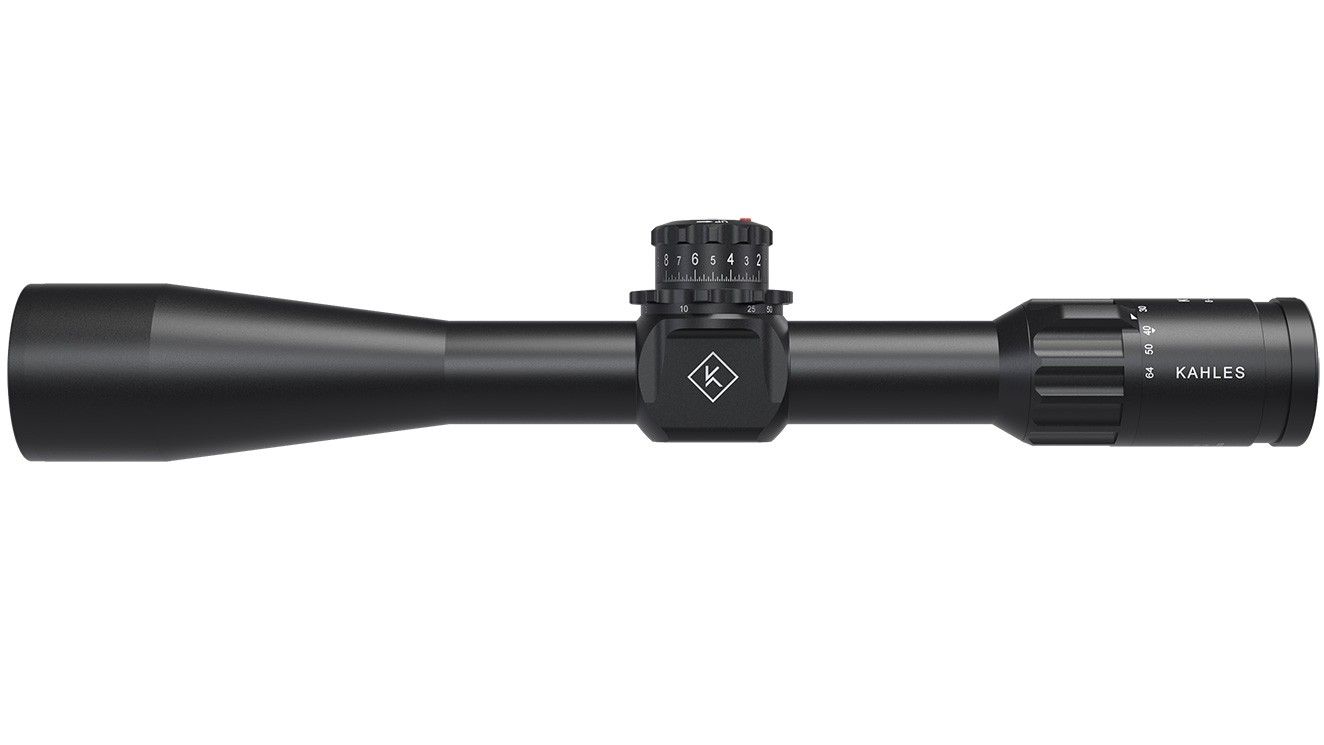

Kahles K864 8-64x56 Riflescope

Designed to meet the highest standards of F-Class competition, the K864 provides unbeatable precision and an unequalled field of view. Offering championship-level clarity and control, it gives shooters the edge they need to perform at their best.

Features

• Unique ergonomics specifically designed for F-Class demands.
• True 8x zoom with uncompromised optical performance across the entire adjustment range.
• Second Focal Plane: Where riflescopes have reticles in the second focal plane, the size of the reticle remains constant, regardless of magnification. As a result, the coverage area changes with the chosen magnification.
• Non-illuminated reticle: Non-illuminated, fine-structured reticle for precise aiming.
• Main tube diameter 36 mm: The main tube has a diameter of 36 mm.
• MOA 1/8: Click resolution MOA: 1/8 MOA click corresponds to a point of impact shift of 0.36 cm at a distance of 100 m.
• Adjustment direction CCW: The adjustment direction of the elevation and windage turrets is designed to be counter-clockwise (ccw).
• Top mounted parallax: The top mounted parallax adjustment sits below the elevation turret. The patented central arrangement allows for simple and intuitive operation of all controls with the preferred hand, without needing to reach over.
• Windage right: The windage adjustment is located on the right side.
• Easyread: Adjustment turrets with EASYREAD labelling provide excellent readability and clear identification under challenging conditions.
• Revolution Indicator: The REVOLUTION INDICATOR (mechanical) uses the Indicator Pin as a reference: depending on its position, it continuously displays the current revolution level, ensuring a reliable and instantly recognisable position indication.
• Indexstop: The INDEXSTOP (mechanical stop) is positioned 2–3 clicks below the zero indicator and is set after sighting in, allowing a quick and repeatable return to zero.
• Visionflex: VISIONFLEX creates an exceptionally wide field of view and opens a remarkably generous eyebox, delivering a natural, fatigue-free viewing experience that remains consistent across all magnifications.

Specifications

• Magnification: 8-64x56
• Diopter compensation: +2 / -3 dpt
• Twilight factor (DIN 58388): 21,2-59,9
• Impact correction per click: 1/8 MOA
• Adjustment range (E/W): E/W (MIL):16/11.6 | E/W (in/100 yds):57.6/42 | E/W (MOA):55/40
• Parallax adjustment: 8 - ∞
• Focal plane: 2.
• Warranty: 10 years
