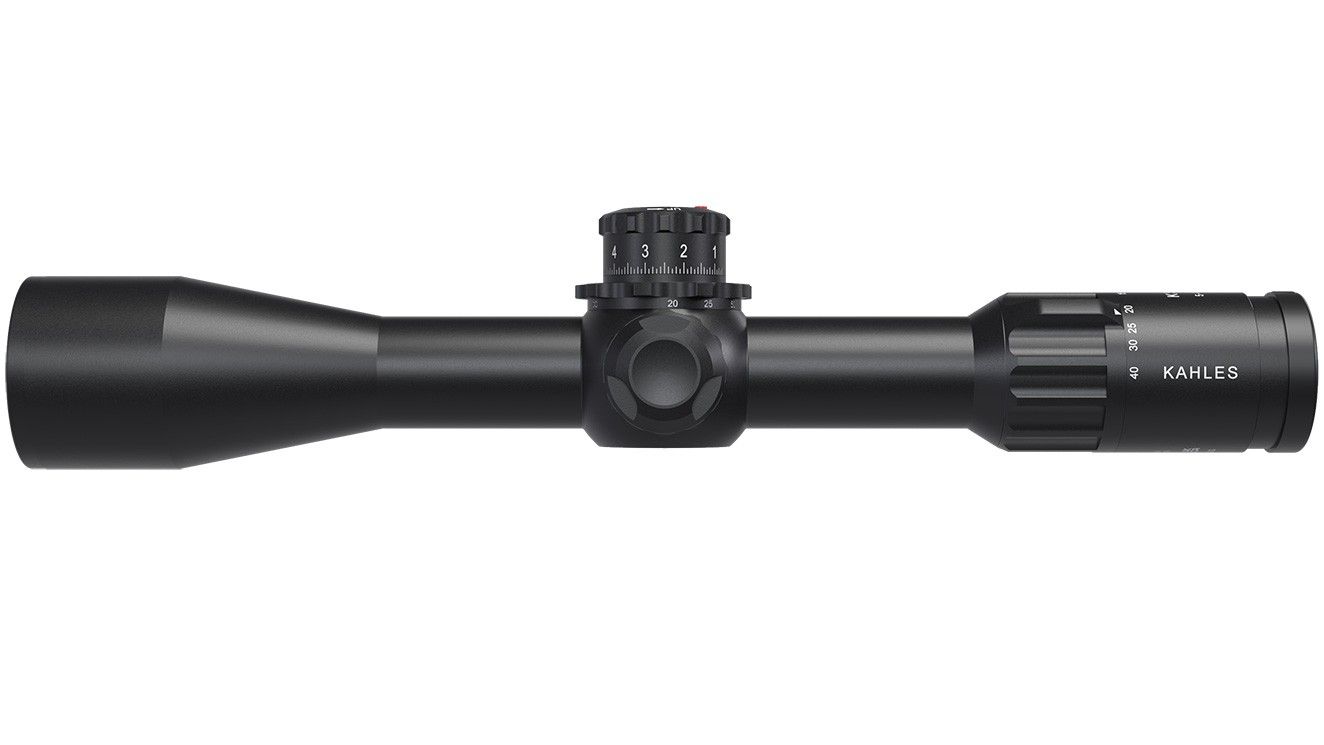

Kahles K540i 5-40x56i Riflescopes Right

Designed for professional long-range shooting, the K540i sets a bold new standard. Its unparalleled field of view provides maximum downrange clarity and enables seamless target transition, essential in fast-paced scenarios.

REFINED introduces: 10 MIL Windage – increased usability in dynamic environments

Features

• Ergonomic, shooter-specific configurations for optimal control.
• True 8x zoom with uncompromised optical performance across the entire adjustment range.
• First focal plane: Where riflescopes have reticles in the first focal plane, the size of the reticle remains proportional to the target and adjusts with the magnification. This allows for precise aiming points and reliable distance measurement, regardless of the chosen magnification.
• Illuminated reticle: Illuminated, fine-structured reticle for precise aiming and optimal visibility.
• Main tube diameter 36 mm: The main tube has a diameter of 36 mm.
• 10MIL per revolution turrets: The elevation and windage adjustments with 100 clicks per full revolution allow for fast and precise adjustments under demanding conditions. Enlarged click intervals and clear EASYREAD labelling ensure excellent tactile feedback and secure operation.
• Adjustment direction CCW: The adjustment direction of the elevation and windage turrets is designed to be counter-clockwise (ccw).
• Top mounted parallax: The top mounted parallax adjustment sits below the elevation turret. The patented central arrangement allows for simple and intuitive operation of all controls with the preferred hand, without needing to reach over.
• Windage left or right: Models featuring parallax adjustment integrated into the elevation turret offer ergonomic and intuitive access to all controls. This innovative design allows the windage adjustment to be positioned on either side of the turret housing – left for right-handed shooters and right for left-handed shooters. Thus adjustments can be made without ever leaving the shooting position.
• Easyread: Adjustment turrets with EASYREAD labelling provide excellent readability and clear identification under challenging conditions.
• Revolution Indicator: The REVOLUTION INDICATOR (mechanical) uses the Indicator Pin as a reference: depending on its position, it continuously displays the current revolution level, ensuring a reliable and instantly recognisable position indication.
• Indexstop: The INDEXSTOP (mechanical stop) is positioned 2–3 clicks below the zero indicator and is set after sighting in, allowing a quick and repeatable return to zero.
• Twistguard: The patented anti-rotation mechanism of the windage turret prevents unintentional adjustments by means of a freely rotating protective cap – without additional locking mechanisms, it is immediately ready for use.
• Visionflex: VISIONFLEX creates an exceptionally wide field of view and opens a remarkably generous eyebox, delivering a natural, fatigue-free viewing experience that remains consistent across all magnifications.

Specifications

• Magnification: 5-40x56i
• Objective lens diameter: 56 mm
• Exit pupil: 7.7-1.4 mm
• Eye relief: 92 mm
• Field of view: 10.2 - 1.3 m/100 m
• Diopter compensation: +2/–3 dpt
• Twilight factor (DIN 58388): 16.7-47.3
• Impact correction per click: .1 MRAD
• Adjustment range (E/W): 2,9 / 1,2
• Parallax adjustment: 20 - ∞
• Tube diameter: 36 mm
• Length: 409 mm
• Weight: 1115 g
• Focal plane: 1.
• Illuminated: Yes
• Warranty: 10 years
