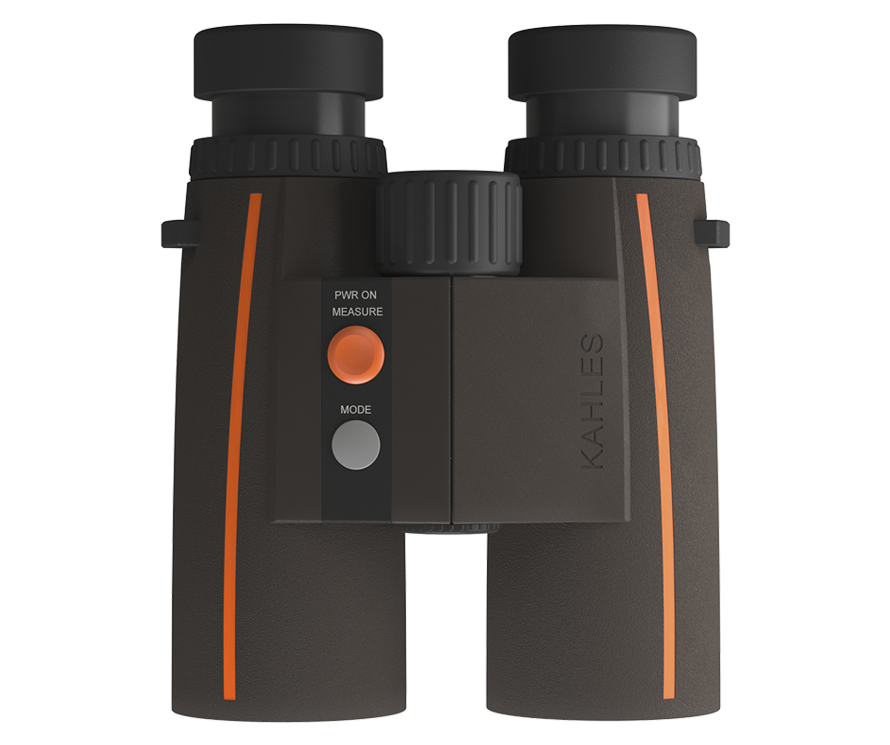

Kahles Helia 42 RF 8x42

The lightweight and ergonomic HELIA 42 RF perfectly combines brilliant optics with reliable targeting up to 1,200 m on common hunting targets (deer, tree). It stands out for intuitive simple handling and useful hunting features like patented EAC (Enhanced Angle Compensation) and scan mode.

EAC Function:

• Assume the distance from the target is 400 m
• Assume an angle of 40°
• Rifleman's rule result: 306 m
• EAC function result: 321 m

Features

• Easy and reliable targeting up to 1,200 m on common hunting targets
• Intuitive simple menu navigation
• Patented EAC-function (Enhanced Angle Compensation) for angle correction
• Long-range (LR) function for ranging easy to detect targets up to 3,600 m
• Premium-quality OLED display with five manual brightness settings and display in meter or yards
• Scan Mode, temperature and air pressure display
• Extra long battery lifetime ~ 4,000 measurements

Specifications

• Magnification: 8 | 10
• Objective lens diameter (mm): 42 | 42
• Eye relief (mm): 18 | 16
• Exit pupil diameter (mm): 5,3 | 4,2
• Pupil distance (mm): 58 - 73 | 58 - 73
• Twilight factor (ISO 14132-1): 18,3 | 20,5
• Field of view (m/1.000m): 122 | 107
• Field of view (°): 7,0 | 6,1
• Field of view apparent (°): 56 | 61
• Near focus (m): 5 | 5
• Diopter compensation (dpt): ± 4 | ± 4
• Measure range - standard (m): 5 - 1.200 | 5 - 1.200
• Measure range - LR (m) easy to measure targets: up to 3.600 | up to 3.600
• Range-finding accuracy (m):
  • +/- 1 up to 100 | +/- 1 up to 100
  • +/- 2 up to 1.000 | +/- 2 up to 1.000
  • +/- 0,5% over 1.000 | +/- 0,5% over 1.000
• Display type: OLED | OLED
• Brightness levels: 5 | 5
• Measurement duration: 1 s | 1 s
• Display Auto-off: 5 s | 5 s
• Adjustment position twist-in eye cups: 4 | 4
• Waterproof (nitrogen filling): √ | √
• Height x Width x Depth approximately (mm): 145 x 132 x 73 | 145 x 132 x 73
• Weight (g): 900 | 900
• m/yds display: √ | √
• Laser class: 1 | 1
• Single measurement: √ | √
• Scan measurement: √ | √
• Angle correction: EAC-Function | EAC-Function
• LR measurement: √ | √
• Temperature measurement: √ | √
• Air pressure measurement: √ | √
• Battery type: CR2 Lithium (3V DC) | CR2 Lithium (3V DC)
• Battery lifetime: ~ 4.000 range cycles | ~ 4.000 range cycles
• Guarantee: 10 years | 10 years
• Guarantee electronics: 2 years | 2 years
• Operating temperature mechanical (°C): -10 / +55 | -10 / +55
• Operating temperature electronical (°C): -10 / +55 | -10 / +55
• Accessories (inclusive): Ocular and objective cover,Carrying strap with quick release fastener.
