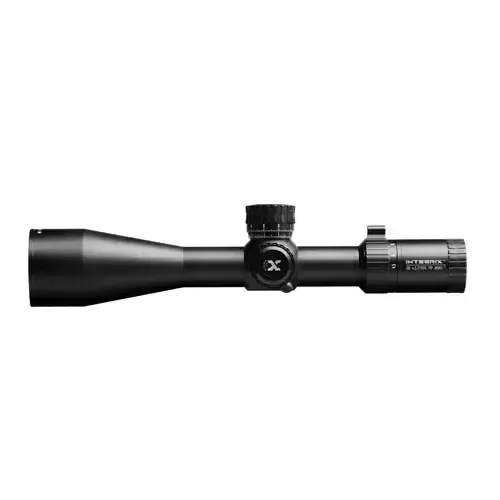

Integrix® iX6 4.5-27x56 34mm FFP LR/ELR Scope, M1 MRAD

Dropping to dealers first quarter 2025, the INTEGRIX® iX6 4.5-27X56 modernizes the 5-25X magnification range to offer even greater versatility for long range engagements. Its large objective lens and 34mm tube allow for maximum light and clarity in low light conditions and travel in your windage and elevation adjustments. Available in 2 different precision reticle options, this riflescope is a well-rounded optic for the advanced long-range marksman.

Features

• Patented Mil precision reticle with quick ranging system and wind holds out to 12 Mils
• Individually centration tested German SCHOTT glass and Japanese OHARA
• Multi-coated lenses for glare, reflection, and scratch resistance
• Over 92% light transmission for maximum low light performance
• Edge-to-edge HD image quality, contrast, and resolution with minimized aberrations
• Extra wide 25 to 4 ft FOV at 100 yards (8.4 to 1.4 m at 100 m) with large consistent eyebox
• Durable and reliable environmental performance rated from -40°F (-40°C) to 160°F (71°C)
• 3x Nitrogen purged for fog and IPX7 waterproofing
• Rated for .338 LAPUA Magnum with life fire testing and collimator confirmation onsite
• Red and green reticle Illumination with 8 brightness intensities and 12 hour automatic shutoff
• Intuitive lockable and zero resettable windage and elevation turrets
• Elevation turret equipped with patented zero stop, simple and easy to set
• Side adjustable parallax turret for smooth adjustment from 30 yds / 27 m to infinity
• Ultra compact and lightweight combined with the expanded versatility of 6 power
• Serrated power ring and rear adjustable eyepiece
• Effortless magnification transitions with oversized throw lever included

Specifications

• Auto Shutoff 12 hrs
• Ballistic Drop Compensation No
• Battery Loading Left Side Turret
• Battery Type CR2032 3V
• Brightness Mode(s) Manual
• Brightness Settings 8
• Caliber Rating .338 Lapua Magnum
• Click Value 0.1 MRAD
• Diopter Adjustment -3D to +2D
• Diopter Type Friction Secured
• Elevation Travel 32.5 MRAD (Up 19 MRAD / Down 13.5 MRAD)
• Exit Pupil 11 - 2.1 mm
• Eye Relief 3.94 in (100 mm)
• Field of View (Angular FOV) 4.8° - 0.8°
• Field of View (Linear FOV) 25.1- 4.2 ft @ 100 yds (8.4 - 1.4 m @ 100 m)
• Focal Plane FFP (First Focal Plane)
• Illuminated Yes
• Light Transmission 92%
• Magnification Max. 27X
• Magnification Min. 4.5X
• Materials 6061-T6 Aluminum
• Parallax 30 yds (27.4 m) - Infinity
• Parallax Control Left Side Adjustable Turret
• Range Estimation Yes
• Reticle M1 MRAD
• Reticle Color Red and Green
• Reticle Type Etched Glass
• Surface Finish Anodized
• Temperature Operating Range -40⁰F to +160⁰F (-40⁰C to +71⁰C)
• Travel Per Revolution 10 MRAD
• Waterproof Rating IPX7
• Weight 33.7 oz (956 g)
• Windage Travel 14 MRAD
• Zero Stop No
• Elevation Turret Diameter 1.65 in (42 mm)
• Elevation Turret Height 1.92 in (49 mm)
• Eyepiece Diameter 1.81 in (46 mm)
• Front Mounting Space 1.97 in (50 mm)
• Length 14.13 in (359 mm)
• Objective Diameter 2.56 in (65 mm)
• Objective Lens Diameter 56 mm
• Objective Tube Length 4.96 in (126 mm)
• Ocular Tube Length 3.46 in (88 mm)
• Parallax/Illumination Turret Diameter 1.50 in (38 mm)
• Parallax/Illumination Turret Height 2.05 in (52 mm)
• Rear Mounting Space 1.97 in (50 mm)
• Total Mounting Space 5.71 in (145 mm)
• Tube Diameter 34 mm
• Windage Turret Diameter 1.65 in (42 mm)
• Windage Turret Height 1.88 in (48 mm)

Recticle Breakdown

UNIT	A	D	E	F	G	H	I
MIL	24	0.05	0.1	0.1	0.15	0.4	0.03

UNIT	J	K	L	M	N	O	P
MIL	12	0.2	0.1	9	0.4	0.2	0.5

UNIT	Q	R	S	T	U	V	W
MIL	0.05	1.5	1	0.1	0.2	0.5	1

UNIT	B
INCH @ 400 YARDS	18

UNIT	C
INCH @ 1000 YARDS	18
