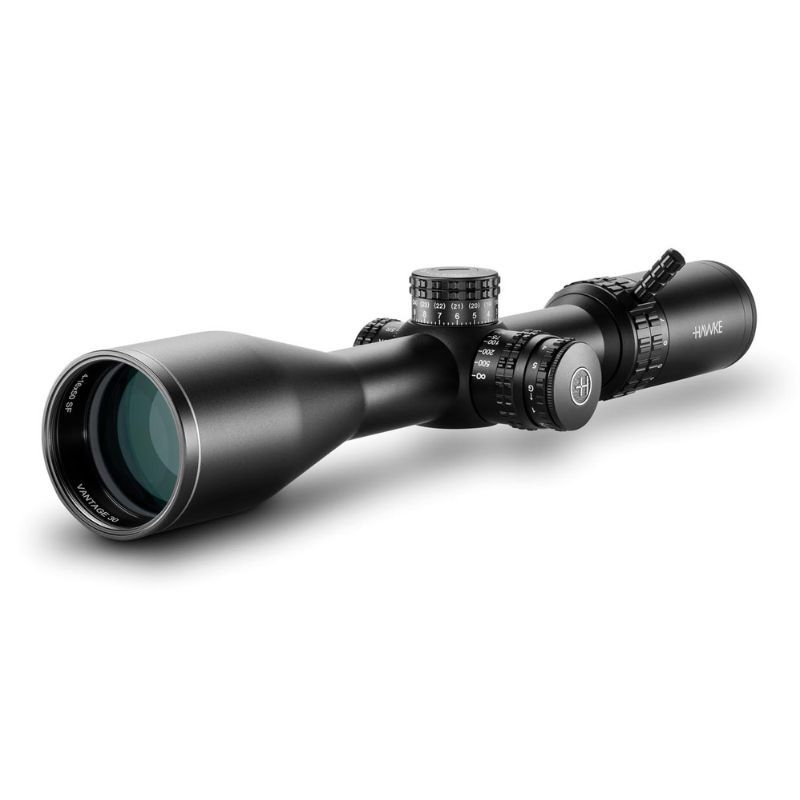

Hawke Vantage HD 30 4-16x50 SF Rimfire 22 LR Reticle
SKU SHAWKE14414
R6 852.17
In stock
1
Hawke Vantage HD 30 4-16x50 SF Rimfire 22 LR Reticle
Product Details
DESCRIPTION
Registered reticle design exclusive to Hawke. Bullet Drop Compensating (BDC) aim points calculated for your specific caliber. Easy to zero and outstanding downrange accuracy with illuminated aim points for all lighting conditions. Distances etched into the reticle field of view.
Designed for .22 LR of all speeds, it can be used at 16x magnification for High Velocity ammo and 12.1x magnification for Standard Velocity ammo. Zero at 50 yards and the bullet drop compensating reticle provides accurate aim points in 25 yard increments out to 200 yards.
It can also be used on lower magnification for distances in metres (13.9x for High Velocity ammo and 10.5x for Standard Velocity ammo).
FEATURES
- 30mm Monotube Chassis
- Exposed, Locking Elevation & Windage
- Illuminated Glass Reticle
- 11 Layer Fully Multi-Coated Lenses
- 3.5 Inch Eye Relief
SPECIFICATIONS
| Objective Lens | 50mm |
| Reticle | Rimfire .22 LR (16x) |
| Illumination | 5 Levels (Red & Green) |
| Illumination Control | Stepped Rheostat |
| Parallax | Side Focus |
| Magnification | 4 - 16x |
| Optical System | System H2 |
| Focal Plane | SFP (Second Focal Plane) |
| Scope Tube | 30mm |
| Field of View | 28.8 - 7.8ft @100yds
9.6 - 2.6m @100m |
| Field of View (°) | 5.5 - 1.5 |
| Eye Relief | 3.5in
90mm |
| PX/Focus (Error free from) | 10yds - ∞
9m - ∞ |
| Exit Pupil | 0.49 - 0.12″
12.5 - 3.1mm |
| Click Value | 1⁄ 4MOA |
| Elevation Turret Clicks (max) | 95 MOA |
| Windage Turret Clicks (max) | 95 MOA |
| Ocular Type | Fast Focus |
| Power Selector | Knurled Posi-Grip with Removable Zoom Lever |
| Lens Coating | Fully Multi-Coated - 11 Layers |
| Length | 13.7in
347mm |
| Weight | 26.1oz
740g |
| Turret Type (Elevation) | Exposed, Locking, Resettable |
| Turret Type (Windage) | Exposed, Locking, Resettable |
