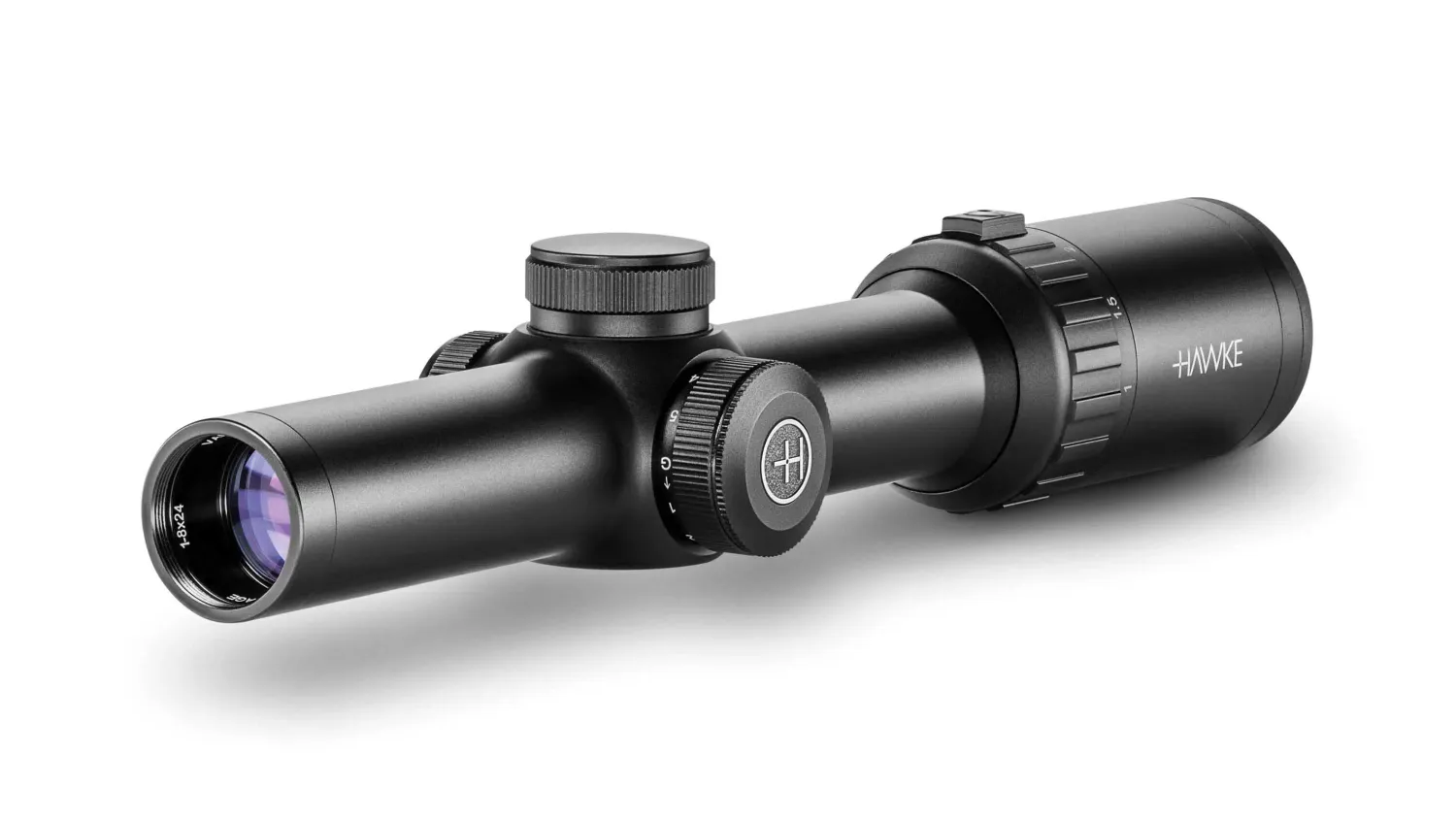

Hawke Vantage 30 WA 1-8x24 IR L4A Dot Reticle
SKU SHAWKE14400
R6 991.30
Sold out
Sold out
Save this product for later
Hawke Vantage 30 WA 1-8x24 IR L4A Dot Reticle
Product Details
DESCRIPTION
A variant of the classic L4 reticle, the L4A Dot uses a more open outer post design to keep more of the target visible while aiming. 30″ spacing from center to post at 100yds when on 4x magnification. This is equivalent to 83cm at 100m.
All Vantage riflescopes feature our H2 optics in a variety of configurations.
IR models feature precision glass etched reticles with multi-stage illumination in both red and green.
FEATURES
- Capped Low-Profile Turrets
- 30mm Mono-Tube Chassis
- Wide Angle
- Illumination
- 11 Layer Fully Multi-Coated Lenses
- High Torque Zoom Ring
- Fast Focus Eyebell
SPECIFICATIONS
| Objective Lens: | 24mm |
| Reticle: | L4A Dot |
| Parallax: | Fixed |
| Magnification: | 1-8x |
| Optical System: | System H2 |
| Focal Plane: | SFP (Second Focal Plane) |
| Scope Tube: | 30mm |
| Illumination: | 5 Levels - Red/Green |
| Field of View: | 120.4 - 15.1ft @100yds / 40.1 - 5m @100m
|
| Field of View: | 22.9 - 2.9° |
| Eye Relief: | 3.8in / 97mm
|
| PX/Focus: | 100yds / 91m
|
| Exit Pupil: | 0.94 - 0.12″ / 24 - 3mm
|
| Turret Type: | Capped |
| Turret Caps: | Yes |
| Click Value: | 1/2 MOA |
| Elevation Turret Clicks (max): | 210 MOA |
| Windage Turret Clicks (max): | 210 MOA |
| Ocular Type: | Fast Focus |
| Power Selector: | Knurled Posi-Grip with Removable Zoom Lever |
| Lens Coating: | Fully Multi-Coated - 11 Layers |
| Length: | 10.5″ / 267mm
|
| Weight: | 16.5oz / 468g
|
