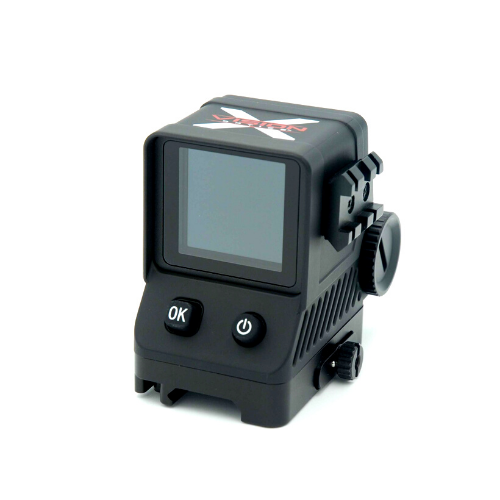

X-Vision Thermal Reflex Sight

DESCRIPTION

X-Vision Optics’ all-new Thermal Reflex Sight (TR1) is by far the best bang for your buck when it comes to thermal units on the market today. With a detection range up to 1000-yards, this incredibly compact sight produces crystal clear images on its 1.63” AMOLED display. The TR1 also features a quick-release Picatinny mount and IP67 weatherproof rating so it will hold up in any terrain and tough weather conditions.

High-Performance Detection Range

The Thermal Reflex Sight has a 1,000-yard detection range and a 500-yard recognition range. At a high frame rate of 25 Hz, the device captures sharp thermal images and smoothly tracks rapid motion in the distance. The objective lens is 13 mm in diameter and has a field of view of 23.6°×20.7°. This thermal reflex sight has a 1 to 4x magnification with a detector resolution of 400×300.

High-Quality Compact Design

The unit has a 1.63” display with infinite eye relief and five color palettes including White Hot, Black Hot, Red Hot, Color, and Target Highlight. Each palette option will detect heat and display it in the selected color. The device is capable of manual or automatic shutter calibration, ensuring a clear image every time.

Durable and Reliable

The thermal reflex sight provides both day and night use for hunting, scouting, and surveilling. This unit is capable of handling over 53 ft/lb. of recoil allowing compatibility with a large variety of firearms and crossbows. Additionally, the TR1 is dust and water-resistant to an international protection rating of IP67.

Precision Targeting

The visible 650 nm laser allows for rapid target acquisition and identification. The device has four reticle options along with four different reticle color options. The unit can save four sets of zeroing data, allowing for quick use and easy mounting on multiple firearms and crossbows as well as saving different ballistic models for the same firearm.

SPECIFICATIONS

• Magnification: 1-4x
• Detector: 320 x 280
• Pixel Size: 17µm
• Frame Rate: 25Hz
• Objective Lens: 13 mm
• Field of View: 6°×20.7°
• Detection Range: (target size: 1.7m x .5m, P(n)=99%) 520 yd / 476 m
• NETD:≤40mk
• Laser: 650nm
• Reticle: Multiple patterns and color options
• Display Screen: 63” Color AMOLED
• Power Supply: CR123 (qty. 1)
• Battery Life: 3.5 hours
• IP Rating: IP67
• Dimension: 3 in x 3.17 in x 2.9 in / 58.5mm x 80.5 mm x 74.5 mm
• Weight: 0.55 lb / 250 g
• Mount: Quick Release Mount
