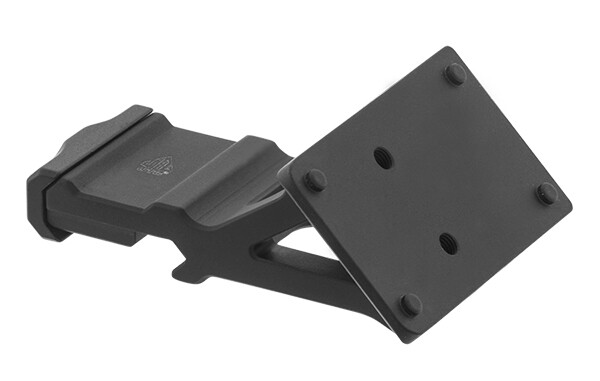

UTG Super Slim 45° Angle Mounts For RDM20 Reflex Micro Dot

UTG Super Slim RDM20 45 Degree Angle Mount, Black.

Features

• Precision CNC Machined from 6061-T6 Aircraft Aluminum and Finished in a Matte Black Anodization
• Low Profile Torx Locking Screw Base with Squared Recoil Stops for a Secure Zero Hold
• Compatible with UTG® OP3 Micro Dots: OP-RDM20R, OP-RDM20G, OP-RDM20CT and OP-RDM20CTS, utilizes the Common Docter Footprint
• CAUTION: Only use the included #6-48 screws for optic installation.
• NOTE: We recommend to tighten the #6-48 screw with torque value of about 12 inch-lb and the side plate screw with torque value of about 35 inch-lb.

Specifications

• Color(s): Black
• Compatible with: UTG® OP3 Micro, OP3 Micro SL, OP3 Micro SLS, DOCTER® Footprint
• Height Profile: 45 Degree
• Locking Mechanism: Torx Screw
• Materials: 6061-T6 Aluminum
• Mount Type: Picatinny
• Optic Footprint: For Docter®/Venom®/Noblex®
• Required Picatinny Space: 3 slots
• Surface Finish: Anodized
• Torque Specification: 25 in-lbs (T20 sideplate) | 12 in-lbs (T10 red dot mounting screws)
• Weight: 1.6 oz (44 g)
• Height: .8 in (20.3 mm)
• Length: 1.84 in (46.7 mm)
• Width: 2.54 in (64.5 mm)

Parts Included

• 3 x #6-48 T10 Torx Screw
• 1 x #8-32 Flat Head T20 Torx Screw
• 1 x T10 Torx Wrench
• 1 x T20 Torx Wrench
