UTG Sporting Accu-Sync Medium Profile 34mm Offset Picatinny Rings
Product Details
UTG® ACCU-SYNC® 1" Picatinny Cantilever Mount, 34 mm Offset, Medium Profile, Black.
Features
- 18 mm Saddle Height, 34 mm Offset Distance, 100 mm Base Length, Medium Profile Fits 1" Tube Optics with up to a 61 mm Outer Objective Diameter
- Precision CNC Machined from Aircraft Grade Aluminum with a Matte Anodization
- Designed with Lightening Cuts to Massively Reduce Overall Weight Without Compromising Structural Integrity and Durability
- Progressively Machined for a Precise Inner Ring Diameter to Achieve Optimal Tube Alignment
- Radiused Edges and Corners to Prevent Snagging, Scratching, or Tearing of Other Gear and for Effortless Access to Scope Windage and Elevation Turrets
- Utilizes Locking Torx Screws and Square-shaped Integral Recoil Stops for a Secure Zero Hold
- NOTE: We recommend to tighten the ring top screws with a torque value of about 25 in-lbs and the side plate screw with torque value of about 35in-lbs

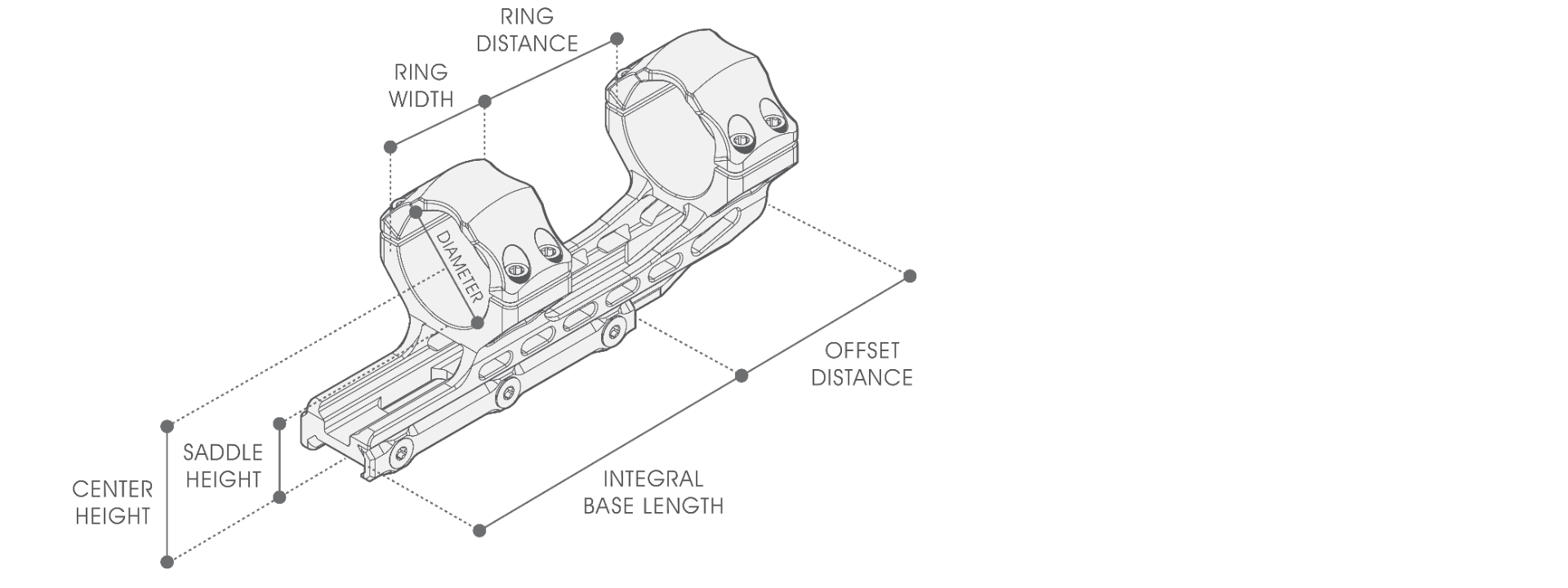

Specifications
| Color(s) | Black |
|---|---|
| Compatible with | Picatinny |
| Height Profile | Medium |
| Locking Mechanism | Torx Screw |
| Materials | 6061-T6 Aluminum |
| Mount Type | Picatinny |
| Quick-detachable | No |
| Required Picatinny Space | 11 slots |
| Surface Finish | Anodized |
| Torque Specification | 25 in-lbs (T20, Top Screw) | 35 in-lbs (T20, Side Plate) |
| Weight | 4.91 oz (139 g) |
| Base Length | 3.94 in (100 mm) |
|---|---|
| Center Height | 1.22 in (31 mm) |
| Inner Diameter | 1 in |
| Length | 5.28 in (134 mm) |
| Max Fit Obj. Bell Dia | 2.40 in (61 mm) |
| Offset Distance | 1.34 in (34 mm) |
| Ring Distance (Inner) | 1.73 in (44 mm) |
| Ring Distance (Outer) | 3.7 in (94 mm) |
| Ring Width | .98 in (25 mm) |
| Saddle Height | 0.71 in |
| Saddle Height | .71 in (18 mm) |
| Width | 1.66 in (42.1 mm) |
