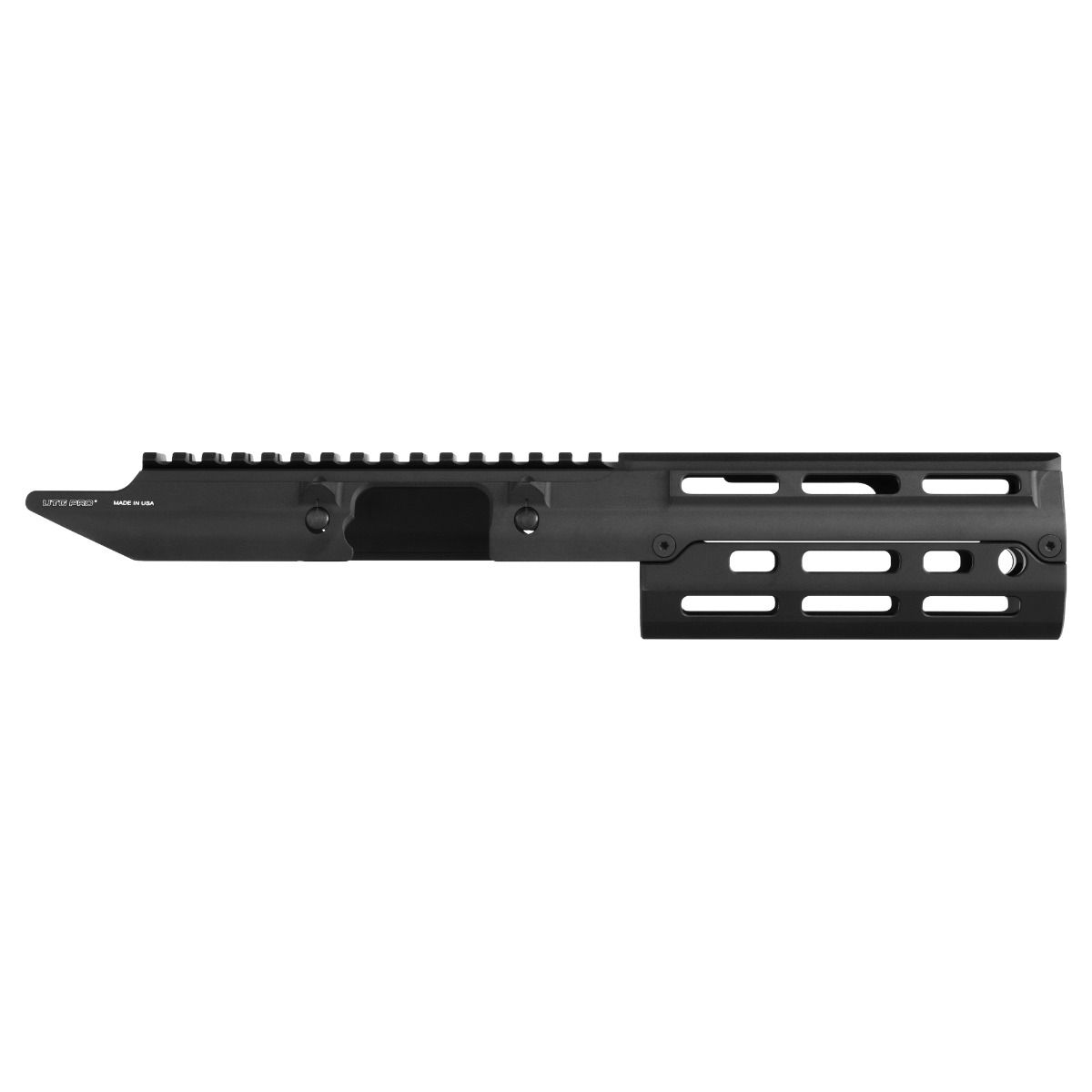

UTG PRO® Monolithic M-LOK® Handguard, for MP5®

Modernize the classic MP5® platform with the UTG PRO® Monolithic Handguard, combining your optics real estate and your handguard, all in one. Patented and easy-to-install locking interface, extra ergonomics to prevent hot spots and snag points, topped with an extended 16 slot picatinny rail and cutout for serial number identification. Tested, featured, and loved by MP5® aficionados across the globe.

Features

• Proudly designed and made in USA
• Monolithic Design Combines M-LOK® and Optics Real Estate into One Rigid Mount
• Patented Claw Mount Locking Interface
• Extended 16 Slot Picatinny Flat-Top with Cutout for Serial Number Identification
• 17 Full and 5 Half M-LOK® Slots Around Circumference of Handguard
• Chamfered Locking Recess Notch Prevents Hot Spots and Snag Points while Manipulating Charging Handle
• Overall Lightweight at 9.6 Oz Installed
• Integral Left and Right Side Anti-Rotational QD Sockets
• Designed for 9mm Receiver MP5 and Clones and Compatible with Most Collapsible and Fixed Stocks
• Type III Class 2 Matte Black Anodized 6061-T6 Aluminum with Dehorned Corners and Melted Contours
• NOTE: Based on user feedback, November 2024 and newer UTG PRO® Monolithic Handguards are Type III Class 2 matte black anodized. Previous handguards were finished in H-146 Graphite Black Cerakote®.

Specifications

• Color(s): Black
• Compatible with: MP5® & MP5® Clones
• M-LOK Slots: 17 (full) / 5 (half)
• Made in: USA Yes
• Materials: 6061-T6 Aluminum
• Modular System: M-LOK®
• Patent: US PAT. 11656059 | US PAT. 11796282
• Picatinny Slots: 16
• Surface Finish: Anodized
• Torque Specification: 20 in-lbs (T10 - 4x)
• Weight: 9.6 oz (272 g)

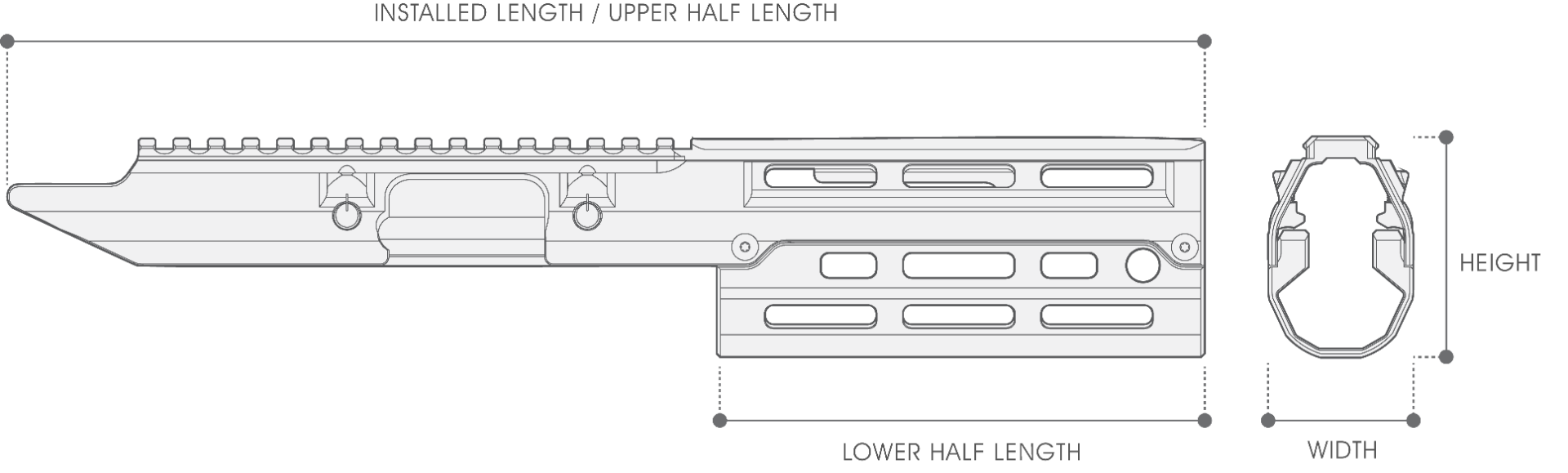

• Height: Upper Half: 1.45 in (36.8 mm), Lower Half: 1.43 in (36.3 mm)
• Installed Height: 2.07 in (52.6 mm)
• Length: Upper Half: 13.65 in (346.7 mm), Lower Half: 5.56 in (141.2 mm)
• Width: 1.69 in (42.9 mm)

Parts Included

• 1 x UTG PRO® Monolithic M-LOK® Handguard, for MP5®
• 4 x #6-32 Pan-Headed Screw, T10
• 4 x #6-32 Flat-Headed Screw, T10
• 4 x Locking Lug
• 1 x #10-32 Brass-Tipped Set Screw, T10
• 1 x T10 Wrench
• 1 x User Manual
