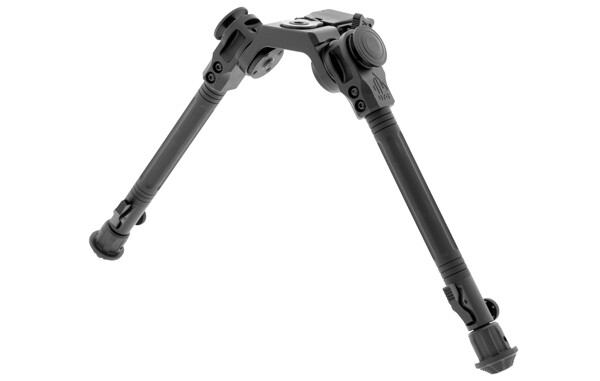

UTG® Over Bore Bipod, 7"–11" Center Height, Quick Detachable, Picatinny

UTG® Over Bore Bipod, 7.3"-11.4" Center Height, Picatinny.

Features

• Quick detachable Picatinny base designed to mount at the 12 o’clock
• Wide open angle and lower center of gravity improves stability
• Matte black anodized aluminum construction with reinforced steel components
• 3 position foldable with lockable notched legs
• Center height adjustable from 7.3"–11.4"
• 22° panning and 44° tension adjustable left and right tilt
• Oversized push buttons for easier gloved manipulation when locking and unlocking bipod articulation

Specifications

• Deployment Method: Manual | Posi-Lock Push Button
• Extendable Positions: 7
• Extension Method: Manual
• Foldable Positions: 0°, 45°, 90°
• Footpad Type: Rubberized
• Interchangeable Footpad: No
• Locking Mechanism: Torx Screw
• Materials: Aluminum, Rubber, Steel
• Mount Type: Picatinny
• Quick-detachable: Yes
• Required Picatinny Space: 1.58 in (40.13 mm)
• Retraction Method: Automatic
• Surface Finish: Anodized
• Swivel Stud to Picatinny Adaptor: No
• Tension Adjustable Panning: No
• Tension Adjustable Tilting: Yes
• Torque Specification: 35 in-lbs (T20, Side Plate)
• Weight: 24.1 oz (683 g)
• Center Height at 45°: 5.25 - 8.2 in (133.35 - 208.3 mm)
• Center Height at 90°: 7 - 11 in (177.8 - 279.4 mm)
• Center Height Stowed: .8 in (20.3 mm)
• Open Angle: 70°
• Panning Degree: 22°
• Tilting: 44°
• Width: 14 - 19.25 in (355.6 - 489 mm)

Parts Included

• 1 x UTG® Over Bore Bipod, 7.3"-11.4" Center Height, Picatinny.
• 1 x T20 Torx Wrench
• 1 x User Manual
