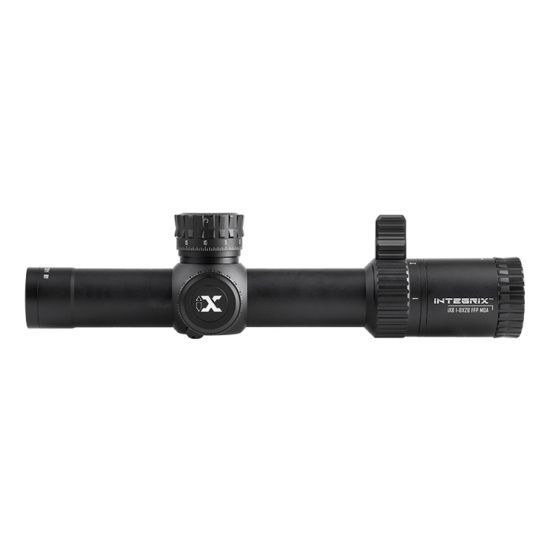

UTG INTEGRIX® iX8 1-8x28 34mm FFP LPVO Scope - A1 MOA
SKU UTGIX801FA1
R21 330.43
In stock
1
Save this product for later
UTG INTEGRIX® iX8 1-8x28 34mm FFP LPVO Scope - A1 MOA
Product Details
DESCRIPTION
INTEGRIX® is pinnacle performance. Years of experience were brought to the forefront through expert development and evaluation, countless testing, and meticulous manufacturing. German and Japanese glass lenses used exclusively in every INTEGRIX® optic are individually centration tested, multi-coated for glare, reflection, and scratch resistance, and upon assembly are inspected for concentricity as a whole.
THE END RESULT? Optimized image quality with over 92% light transmission, edge-to-edge sharpness, minute distortion, and high contrast resolution.
FEATURES
- Individually Centration Tested German and Japanese Glass, Concentric Tested Post Assembly
- Multi-Coated Lenses for Glare, Reflection, and Scratch Resistance
- Low Aberration Optimized Image Quality with Over a 92% Light Transmittance
- Edge to Edge Sharpness, High Contrast, and High-Resolution Standard
- Reliable Adverse Temperature and Environmental Performance with -40°F (-40°C) to 160°F (71°C) Operational Range and IPX7 Waterproof Rating
- Rated, at Minimum, for .338 LAPUA Magnum
- Red and Green Reticle Illumination with 10 Brightness Intensity Settings
- 12 Hour Automatic Shutoff
- Intuitive Lockable and Zero Resettable Windage and Elevation Turrets, Serrated and Oversized for Glove Use
- Serrated Power Ring and Rear Adjustable Eyepiece Diopter
- Make Transitioning Across Magnification Range Effortless with Included Oversized Throw Lever
ACCESSORIES INCLUDED
- Throw Lever
- Flip-open Lens Caps
- Hex Wrench 2 mm
- Hex Wrench 1.5 mm
- CR2032 Battery
- Cleaning Cloth
- User Manual
SPECIFICATIONS
| MATERIALS | 6061-T6 Aluminum |
|---|---|
| SURFACE FINISH | Anodized |
| FOCAL PLANE | FFP (First Focal Plane) |
| RETICLE | A1 MOA |
| RETICLE TYPE | Etched Glass |
| RETICLE ILLUMINATION | Yes |
| RETICLE COLOUR(S) | Red and Green |
| BRIGHTNESS SETTINGS | 10 |
| BRIGHTNESS MODE(S) | Manual |
| AUTO SHUTOFF (HRS) | 12 |
| TEMPERATURE OPERATING RANGE | -40⁰C to +71⁰C / -40⁰F to +160⁰F |
| WATERPROOF RATING | IPX7 |
| BALLISTIC DROP COMPENSATION | No |
| RANGE ESTIMATION | Yes |
| BATTERY LOADING | Left Side Turret |
| BATTERY TYPE | CR2032 3V |
| CLICK VALUE | 1/2 MOA |
| WINDAGE TRAVEL | Right 25 MOA / Left 25 MOA |
| TOTAL WINDAGE | 50 MOA |
| ELEVATION TRAVEL | Up 60 MOA / Down 40 MOA |
| TOTAL ELEVATION | 100 MOA |
| TRAVEL PER REVOLUTION | 50 MOA |
| MAGNIFICATION MAX. | 8 |
| MAGNIFICATION MIN. | 1 |
| ANGULAR FOV | Low Power: 21.8° / High Power: 2.7° |
| LINEAR FOV @ 100 YDS | Low Power: 115.5′ / High Power: 14.1′ |
| LINEAR FOV @ 100 M | Low Power: 38.5 m / High Power: 4.7 m |
| LIGHT TRANSMISSION | 92% |
| EYE RELIEF | 95 mm / 3.74 in |
| PARALLAX CONTROL | Fixed |
| PARALLAX | Preset @ 91.4 m / 100 yds |
| EXIT PUPIL | Low Power: 3.5 mm / High Power: 10 mm |
| OBJECTIVE LENS DIAMETER | 28 mm |
| DIOPTER ADJUSTMENT | -3D ~ +2D |
| DIOPTER TYPE | Friction Secured |
| CALIBER RATING | .338 Lapua Magnum |
| WEIGHT (OZ) | 716 g / 25.3 oz |
DIMENSIONS
| EYEPIECE LENGTH | 86 mm / 3.39 in |
|---|---|
| FRONT MOUNTING SPACE | 55 mm / 2.17 in |
| LENGTH (MM/IN) | 277 mm / 10.91 in |
| MAINTUBE DIAMETER | 34 mm |
| OBJECTIVE LENGTH | 27 mm / 1.06 in |
| OUTER EYEPIECE DIAMETER | 46 mm / 1.81 in |
| OUTER OBJECTIVE BELL DIAMETER | 35 mm / 1.38 in |
| REAR MOUNTING SPACE | 67 mm / 2.64 in |
