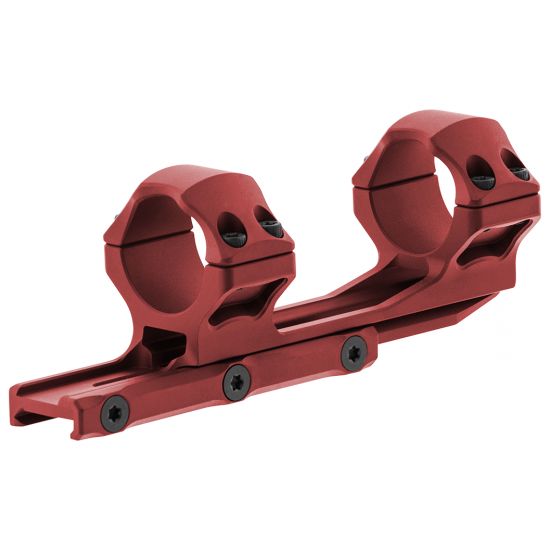

UTG® ACCU-SYNC® 30 mm Picatinny Cantilever Mount, 50 mm Offset, Medium Profile, Red

UTG® ACCU-SYNC® 30 mm Picatinny Cantilever Mount, 50 mm Offset, Medium Profile, Red

Features

• UTG ACCU-SYNC® 30 mm Medium Profile 50mm Offset Scope Ring Mount for a Precise Fit on MIL-STD-1913 Picatinny Rails
• Precision CNC Machined from Aircraft Grade Aluminum and Finished in a Red Anodize
• Significant Lightening Cuts to Massively Reduce Weight Without Compromising Durability
• Radiused Edges and Corners to Prevent Snagging, Scratching, or Tearing of Other Gear and for Effortless Access to Scope Windage and Elevation Turrets
• Single Mount Utilizes Locking Torx Screws and Square-shaped Integral Recoil Stops For a Secure Zero Hold
• 18mm Saddle Height, 50 mm Offset Distance, 100 mm Base Length, Medium Profile Fits 30 mm Tube Optics with up to a 65 mm Outer Objective Diameter
• Includes a T20 Torx Wrench for Simple and User Friendly Installation
• NOTE: We recommend to tighten the ring top screws with a torque value of about 25 inch-lb and the side plate screw with torque value of about 35 inch-lb.

Specifications

• Color(s): Red
• Compatible with: Picatinny
• Height Profile: Medium
• Materials: 6061-T6 Aluminum
• Mount Type: Picatinny
• Quick-detachable: No
• Required Picatinny Space: 14 slots
• Surface Finish: Anodized
• Torque Specification: 25 in-lbs (T20, Top Screws) | 35 in-lbs (T20, Side Plate)
• Weight: 5.4 oz (153 g)
• Base Length: 3.94 in (100 mm)
• Center Height: 1.30 in (33 mm)
• Inner Diameter: 30 mm

• Length: 5.9 in (150 mm)

• Max Fit Obj. Bell Dia: 2.56 in (65 mm)

• Offset Distance: 1.97 in (50 mm)

• Ring Distance (Inner): 2.36 in (60 mm)

• Ring Distance (Outer): 4.33 in (110 mm)

• Ring Width: .98 in (25 mm)

• Saddle Height: 0.71 in

• Saddle Height: .71 in (18 mm)

• Width: 1.84 in (46.7 mm)
