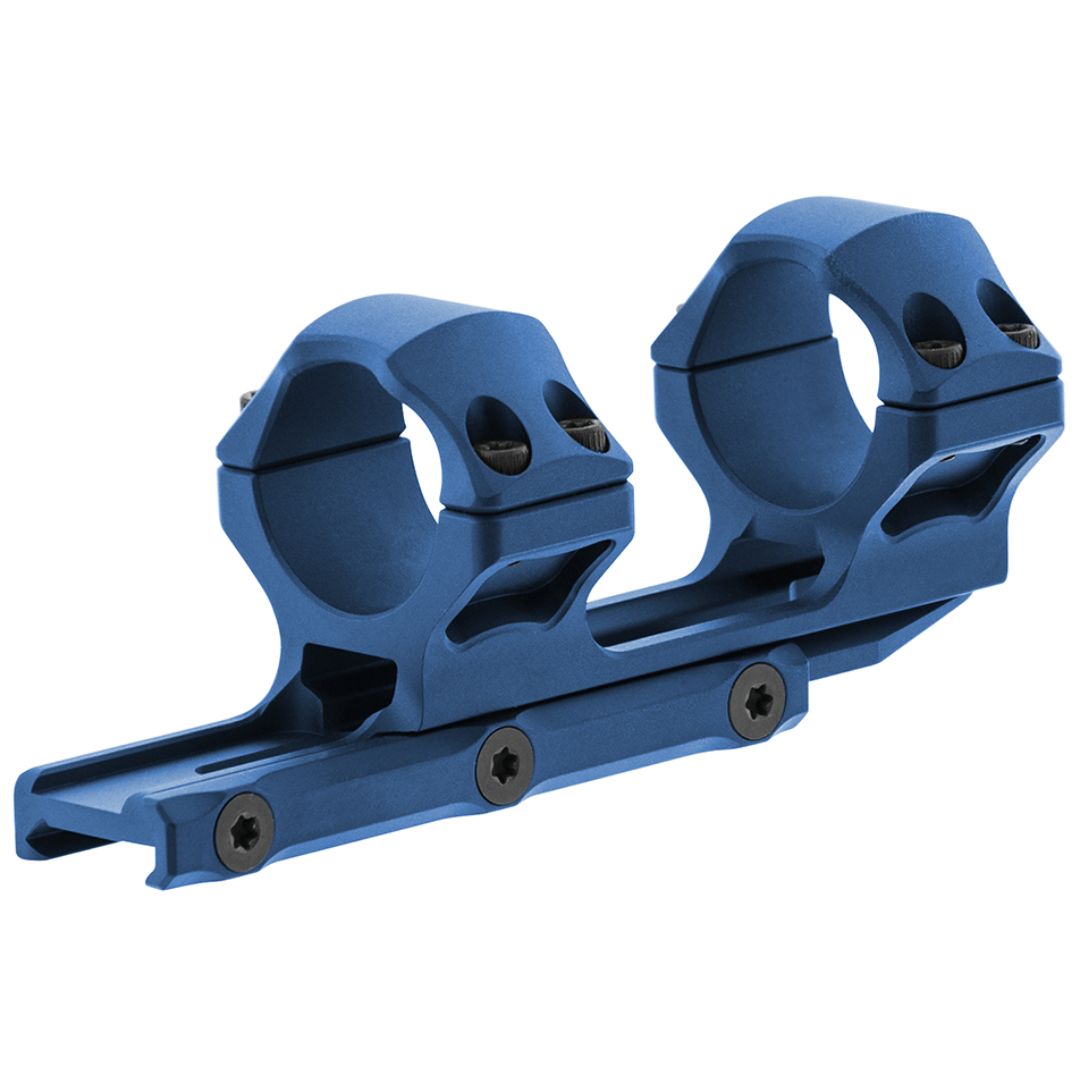

UTG ACCU-SYNC® 30mm Medium Profile 34mm Offset Picatinny Scope Rings - Blue
SKU AIR31834AB
R1 590.07
In stock
1
Save this product for later
UTG ACCU-SYNC® 30mm Medium Profile 34mm Offset Picatinny Scope Rings - Blue
Product Details
DESCRIPTION
- UTG ACCU-SYNC® 30mm Medium Profile 34mm Offset Scope Ring Mount for a Precise Fit on MIL-STD-1913 Picatinny Rails
- Precision CNC Machined from Aircraft Grade Aluminum and Finished in a Blue Anodize
- Significant Lightening Cuts to Massively Reduce Weight Without Compromising Durability
- Radiused Edges and Corners to Prevent Snagging, Scratching, or Tearing of Other Gear and for Effortless Access to Scope Windage and Elevation Turrets
- Single Mount Utilizes Locking Torx Screws and Square-shaped Integral Recoil Stops For a Secure Zero Hold
- 18mm Saddle Height, 34mm Offset Distance, 100mm Base Length, Medium Profile Fits 30mm Tube Optics with up to a 65mm Outer Objective Diameter
- Includes a T20 Torx Wrench for Simple and User Friendly Installation
- NOTE: We recommend to tighten the ring top screws with a torque value of about 25 inch-lb and the side plate screw with torque value of about 35 inch-lb.
SPECIFICATIONS
| MATERIALS | 6061-T6 Aluminum |
|---|---|
| COLOUR(S) | Blue |
| SURFACE FINISH | Anodized |
| QUICK-DETACHABLE | No |
| MOUNT TYPE | Picatinny |
| HEIGHT PROFILE | Medium |
| CANT | Yes |
| OPTIC TO MOUNT TORQUE VALUE | 25 in-lbs |
| MOUNT TO RAIL TORQUE VALUE | 35 in-lbs |
| WEIGHT | 145 g / 5.1 oz |

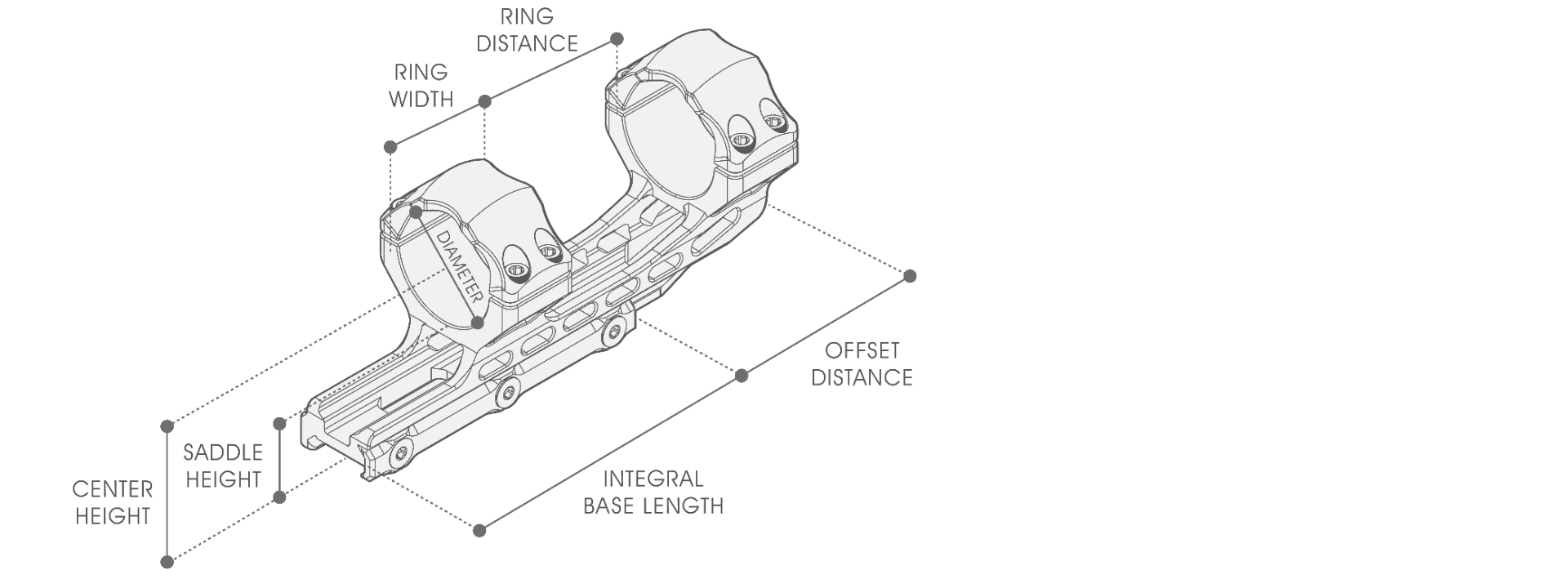

DIMENSIONS
| BASE LENGTH | 100 mm / 3.94 in |
|---|---|
| CENTER HEIGHT | 33 mm / 1.30 in |
| INNER DIAMETER | 30 mm |
| MAX FIT OBJECTIVE BELL DIAMETER | 65 mm / 2.56 in |
| OFFSET DISTANCE | 34 mm / 1.34 in |
| RING DISTANCE | 44 mm / 1.73 in |
| RING WIDTH | 25 mm / 0.98 in |
| SADDLE HEIGHT | 18 mm / 0.71 in |
