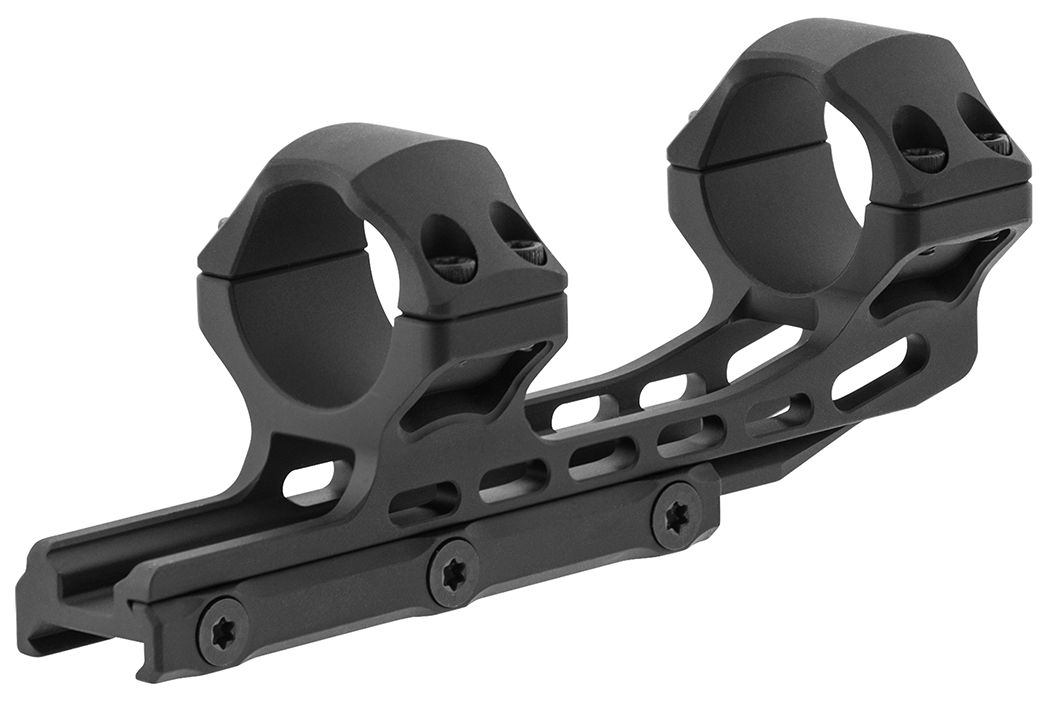

UTG ACCU-SYNC® 30mm High Profile 50mm Offset Picatinny Cantilever Mount Scope Rings - Black
SKU AIR32250
R1 373.91
In stock
1
Save this product for later
UTG ACCU-SYNC® 30mm High Profile 50mm Offset Picatinny Cantilever Mount Scope Rings - Black
Product Details
DESCRIPTION
22 mm Saddle Height, 50 mm Offset Distance, 100 mm Base Length, High Profile Fits 30 mm Tube Optics with up to a 73 mm Outer Objective Diameter. Precision CNC Machined from Aircraft Grade Aluminum with a Matte Anodization. Designed with Lightening Cuts to Massively Reduce Overall Weight Without Compromising Structural Integrity and Durability. Progressively Machined for a Precise Inner Ring Diameter to Achieve Optimal Tube Alignment. Radiused Edges and Corners to Prevent Snagging, Scratching, or Tearing of Other Gear and for Effortless. Access to Scope Windage and Elevation Turrets. Utilizes Locking Torx Screws and Square-shaped Integral Recoil Stops for a Secure Zero Hold.
NOTE: We recommend to tighten the ring top screws with a torque value of about 25 in-lbs and the side plate screw with torque value of about 35 in-lbs
FEATURES
- 8-32 Socket Head T20 Torx Screw
- 8-32 Flat Head T20 Torx Screw
- T20 Torx Wrench

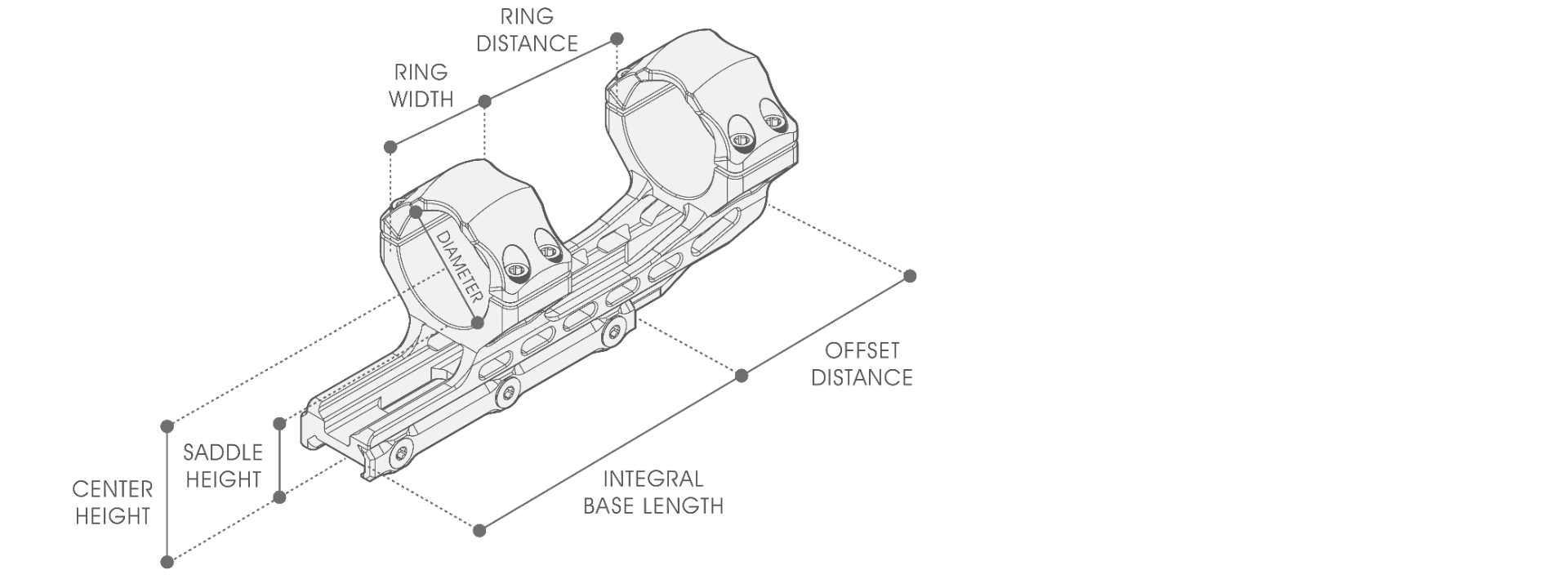

SPECIFICATIONS
| COLOR(S) | Black |
|---|---|
| HEIGHT PROFILE | High |
| MATERIALS | 6061-T6 Aluminum |
| MOUNT TYPE | Picatinny |
| QUICK-DETACHABLE | No |
| SURFACE FINISH | Anodized |
| WEIGHT | 170 g / 5.6 oz |
| BASE LENGTH | 100 mm / 3.94 in |
|---|---|
| CENTER HEIGHT | 37 mm / 1.46 in |
| INNER DIAMETER | 30 mm |
| MAX FIT OBJ. BELL DIA | 73 mm / 2.87 in |
| OFFSET DISTANCE | 50 mm / 1.97 in |
| RING DISTANCE (INNER) | 60 mm / 2.36 in |
| RING WIDTH | 25 mm / 0.98 in |
| SADDLE HEIGHT | 0.87 in |
| SADDLE HEIGHT | 22 mm / 0.87 in |
