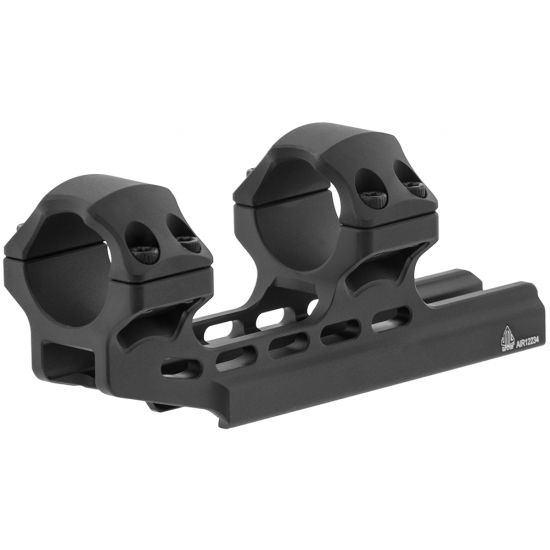

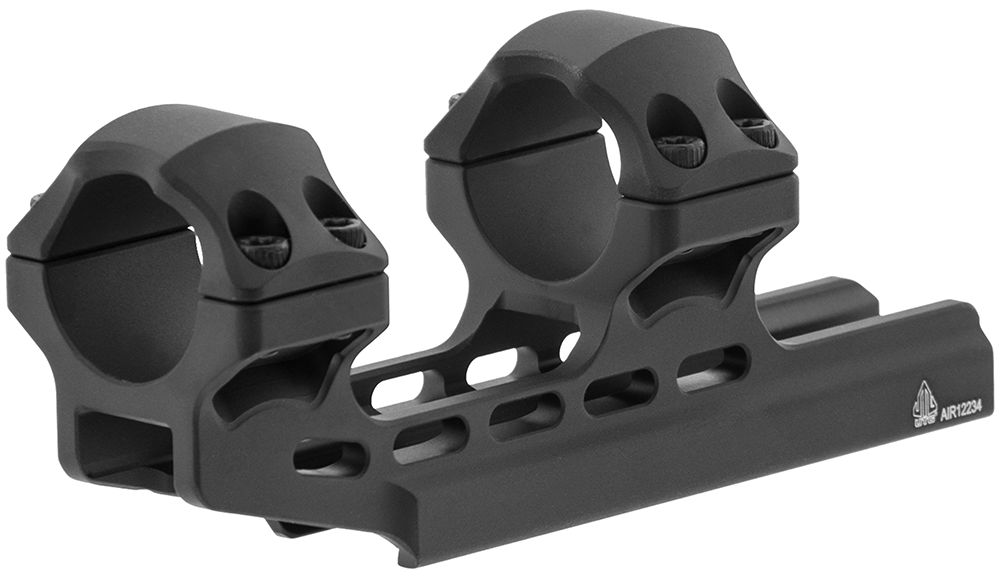

UTG ACCU-SYNC® 1" High Profile 34mm Offset Picatinny Scope Rings - Black

UTG® ACCU-SYNC® 1" Picatinny Cantilever Mount, 34mm Offset, High Profile, Black.

Features

• 22 mm Saddle Height, 34 mm Offset Distance, 100 mm Base Length, High Profile Fits 1" Tube Optics with up to a 69 mm Outer Objective Diameter
• Precision CNC Machined from Aircraft Grade Aluminum with a Matte Anodization
• Designed with Lightening Cuts to Massively Reduce Overall Weight Without Compromising Structural Integrity and Durability
• Progressively Machined for a Precise Inner Ring Diameter to Achieve Optimal Tube Alignment
• Radiused Edges and Corners to Prevent Snagging, Scratching, or Tearing of Other Gear and for Effortless Access to Scope Windage and Elevation Turrets
• Utilizes Locking Torx Screws and Square-shaped Integral Recoil Stops for a Secure Zero Hold
• NOTE: We recommend to tighten the ring top screws with a torque value of about 25 in-lbs and the side plate screw with torque value of about 35in-lbs

Specifications

• Color(s): Black

• Height Profile: High

• Locking Mechanism: Hex Screw
• Materials: 6061-T6 Aluminum
• Mount Type: Picatinny
• Quick-detachable: No
• Required Picatinny Space: 11 slots
• Surface Finish: Anodized
• Torque Specification: 25 in-lbs (T20, Top Screw) | 35 in-lbs (T20, Side Plate)
• Weight: 5.2 oz (147 g)

• Base Length: 3.94 in (100 mm)
• Center Height: 1.38 in (35 mm)
• Inner Diameter: 1 in
• Length: 5.28 in (134 .11 mm)
• Max Fit Obj. Bell Dia: 2.72 in (69 mm)

• Offset Distance: 1.34 in (34 mm)
• Ring Distance (Inner): 1.73 in (44 mm)
• Ring Distance (Outer): 3.7 in (94 mm)
• Ring Width: .98 in (25 mm)
• Saddle Height: 0.87 in
• Saddle Height: .87 in (22 mm)
• Width: 1.65 (42 mm)
