UTG® Recon 360® TL Bipod, 5.5"-7.0" Center Height, Picatinny

UTG® Recon 360® TL Bipod, 5.6"-7.2" Center Height, Picatinny.

Features

• 3 Position Folding Legs and Lockable Leg Extensions Equipped with Nonslip Rubberized Foot Pads
• Center Height Adjustable from 5.6″-7.2″
• Low Profile Offset Picatinny Mount with Knurled Thumb Nut and Reinforced Steel Cross Bolt
• Tunable Tension Adjustment Applies the Desired Amount of Tension to the Bipod's 360° Panning & 15° Left, Right, Forward, and Rearward Tilt
• Readjustable Tension Adjustment Lever is User Serviceable and Optimizes the Applied Tension with the Lever's Throw Distance and Positioning
• Durable Aircraft Aluminum Construction Finished in a Matte Black Anodization

Specifications

• Deployment Method: Manual | Posi-Lock
• Extendable Positions: 3
• Extension Method: Manual
• Foldable Positions: 0°, 45°, 90°
• Footpad Type: Rubberized
• Interchangeable Footpad: No
• Locking Mechanism: Slotted Knurled Thumb Nut
• Materials: 6061-T6 Aluminum, Rubber, Steel
• Mount Type: Picatinny/Swivel Stud
• Patent: US PAT. D758521 | US PAT. D758522
• Required Picatinny Space: 1 slot
• Retraction Method: Manual
• Surface Finish: Anodized
• Swivel Stud to Picatinny Adaptor: Yes
• Tension Adjustable Panning: No
• Tension Adjustable Tilting: No
• Torque Specification: 15 in-lbs (picatinny side plate)
• Weight: 12.1 oz (335 g)
• Center Height at 45°: 4.15 - 5.1 in (105.4 - 129.5 mm)
• Center Height at 90°: 5.3 - 6.9 in (134.6 - 175.25 mm)
• Center Height Stowed: 1.8 in (45 mm)
• Open Angle: 50°
• Panning Degree: 360°
• Tilting: 15°
• Width: 7.25 - 8.65 (184.15 -219.7 mm)

Parts Included

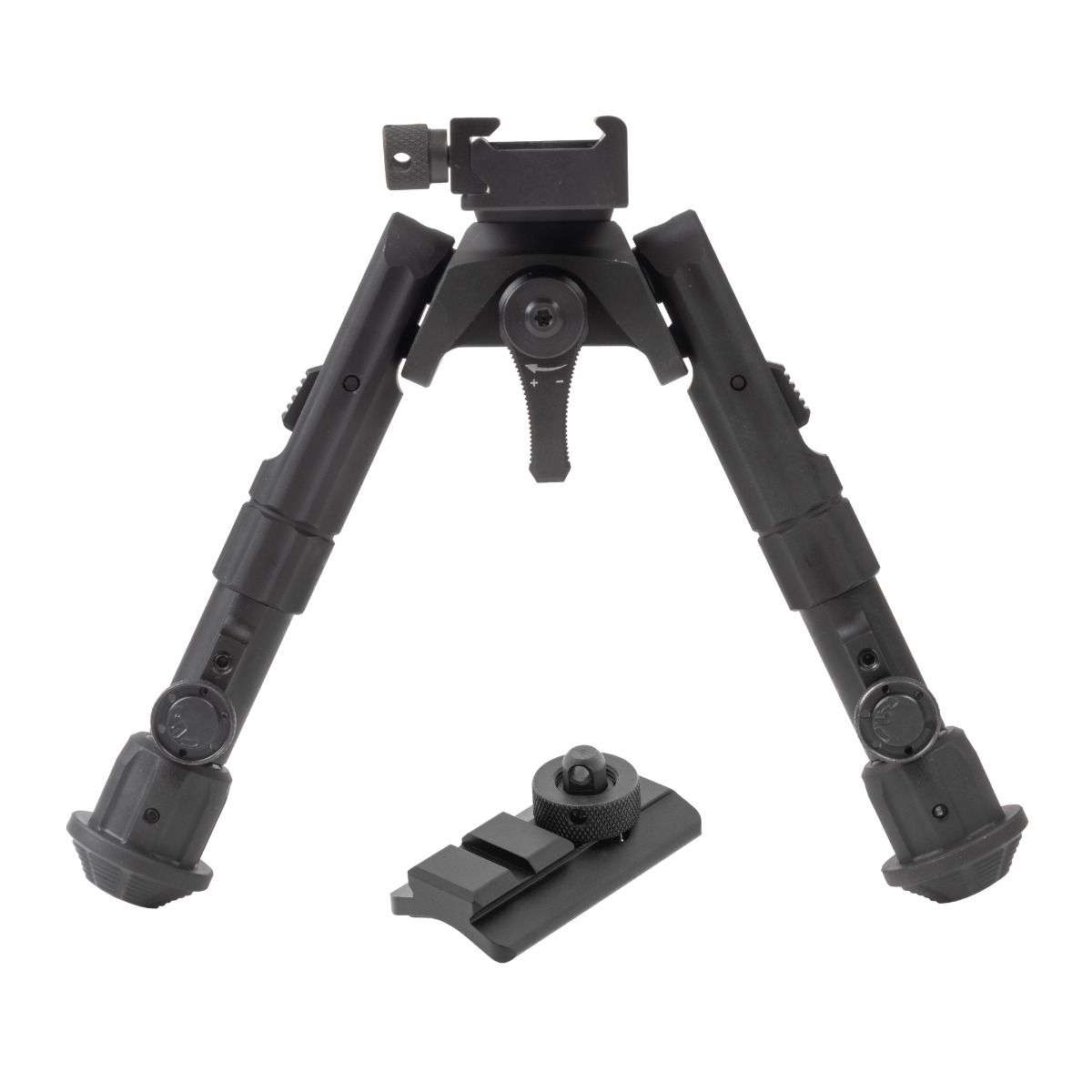

• 1 x UTG® Recon 360® TL Bipod, 5.6"-7.2" Center Height, Picatinny.
• 1 x Swivel Stud Adaptor
• 1 x User Manual

1. While holding the lever in place, use a T15 Torx wrench to remove the screw and lever cap.
2. Pull the lever out and rotate the exposed hex nut clockwise to increase and counterclockwise to decrease the amount of tension applied by the lever.
3. Reinstall lever to test lever tension. We recommend adjusting until max tension is achieved when the lever points straight down.
4. With max tension achieved, reinstall the lever with it pointing straight down. Using the T15 Torx wrench, reinstall the lever cap and screw. Recommended torque value is 15in-lbs.

Smooth 360° planning with additional 15° forward, rearward, left, and right tilt.

Tension Adjustment Throw Lever is User Friendly and Serviceable being re-adjustable over time.

1. Press down and hold the Posi-lock release.
2. Turn the bipod leg to the desired position, releasing the Posi-lock once done to lock the bipod leg into place.
3. To position the legs to face rearward and away from the muzzle rotate the base along its panning axis 180 degrees.

Tension Adjustment Throw Lever is User Friendly and Serviceable being re-adjustable over time.

1. Make sure the Locking Thumb Wheel is fully released by turning it counter-clockwise.
2. Extend the bipod leg by pulling it out of the leg housing. Set it at any of the pre-cut extension notches. Tighten the Locking Thumb Wheel by turning it clockwise to lock the leg.
3. To retract the bipod leg, loosen the Locking Thumb Wheel first. Press down the Leg Retraction Clamp before you push the extended leg upward into the housing.
