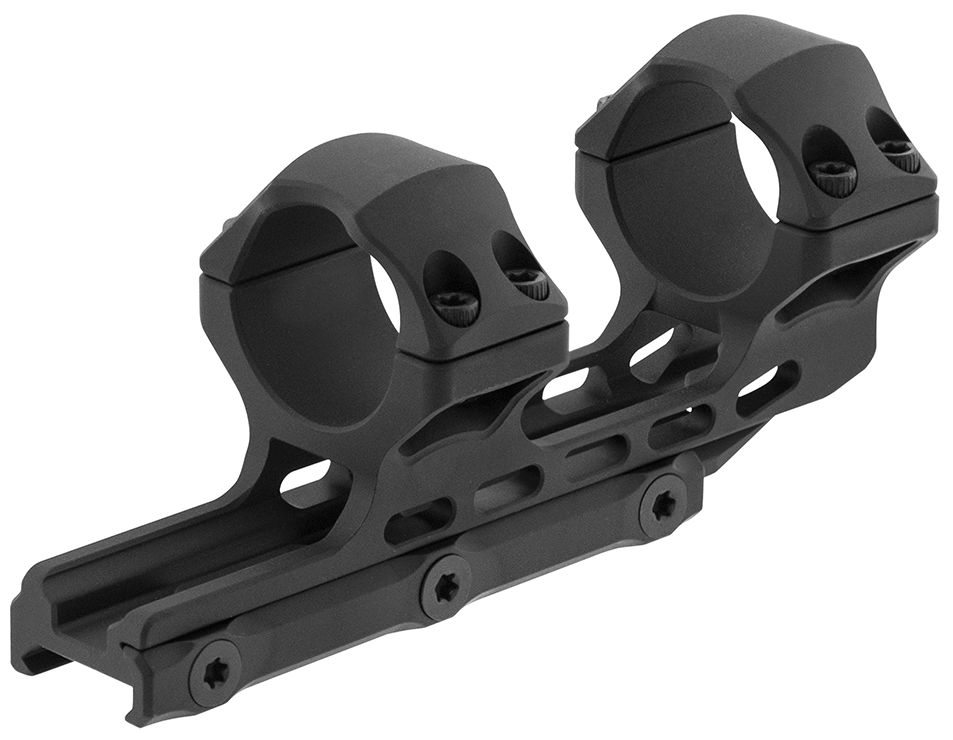

UTG® ACCU-SYNC® 30 mm Picatinny Cantilever Mount, 34 mm Offset, High Profile, Black
SKU AIR32234
R1 156.52
Sold out
Sold out
Save this product for later
UTG® ACCU-SYNC® 30 mm Picatinny Cantilever Mount, 34 mm Offset, High Profile, Black
Product Details
UTG® ACCU-SYNC® 30 mm Picatinny Cantilever Mount, 34 mm Offset, High Profile, Black
Features
- 22 mm Saddle Height, 34 mm Offset Distance, 100 mm Base Length, High Profile Fits 30 mm Tube Optics with up to a 73 mm Outer Objective Diameter
- Precision CNC Machined from Aircraft Grade Aluminum with a Matte Anodization
- Designed with Lightening Cuts to Massively Reduce Overall Weight Without Compromising Structural Integrity and Durability
- Progressively Machined for a Precise Inner Ring Diameter to Achieve Optimal Tube Alignment
- Radiused Edges and Corners to Prevent Snagging, Scratching, or Tearing of Other Gear and for Effortless Access to Scope Windage and Elevation Turrets
- Utilizes Locking Torx Screws and Square-shaped Integral Recoil Stops for a Secure Zero Hold
- NOTE: We recommend to tighten the ring top screws with a torque value of about 25 in-lbs and the side plate screw with torque value of about 35 in-lbs
Specifications
- Color(s): Black
- Compatible with: Picatinny
- Height Profile: High
- Materials: 6061-T6 Aluminum
- Mount Type: Picatinny
- Quick-detachable: No
- Required Picatinny Space: 11 slots
- Surface Finish: Anodized
- Torque Specification: 25 in-lbs (T20, Top Screws) | 35 in-lbs (T20, Side Plate)
- Weight: 5.4 oz (153 g)

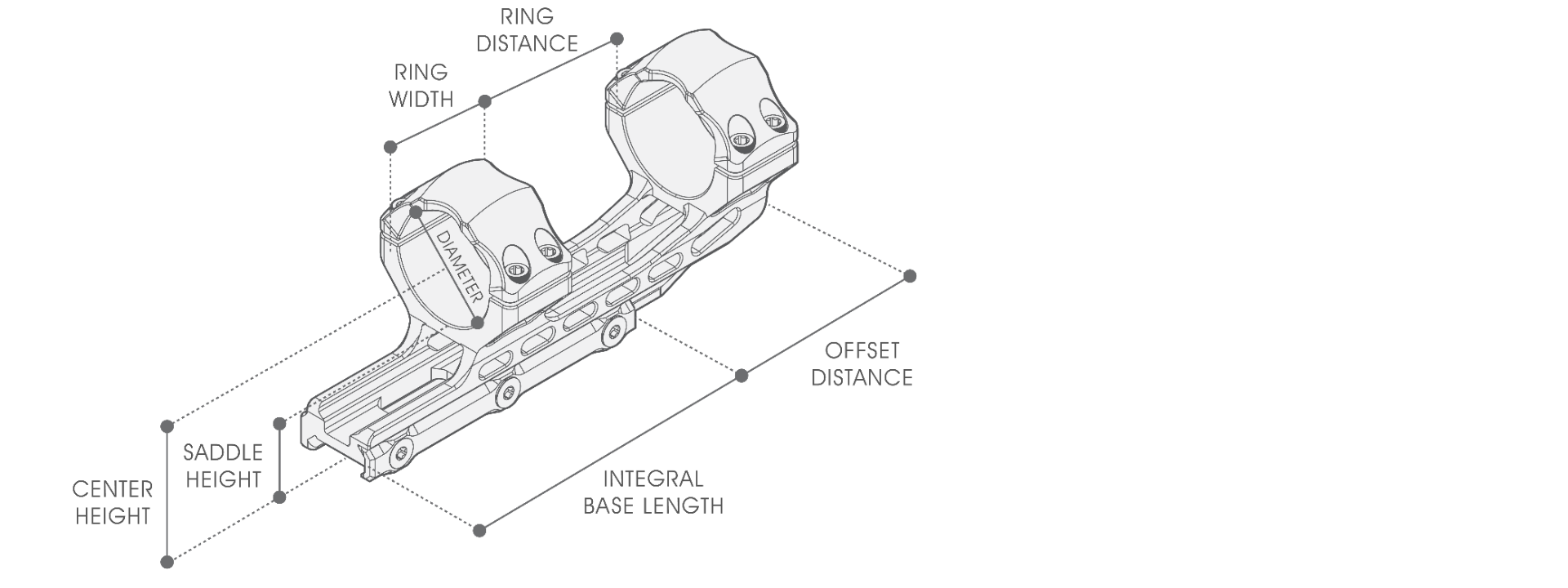

- Base Length: 3.94 in (100 mm)
- Center Height: 1.46 in (37 mm)
- Inner Diameter: 30 mm
- Length: 5.27 in (134 mm)
- Max Fit Obj. Bell Dia: 2.87 in (73 mm)
- Offset Distance: 1.34 in (34 mm)
- Ring Distance (Inner): 1.73 in (44 mm)
- Ring Distance (Outer): 3.7 in (94 mm)
- Ring Width: .98 in (25 mm)
- Saddle Height: 0.87 in
- Saddle Height: .87 in (22 mm)
- Width: 1.84 in (46.7 mm)
