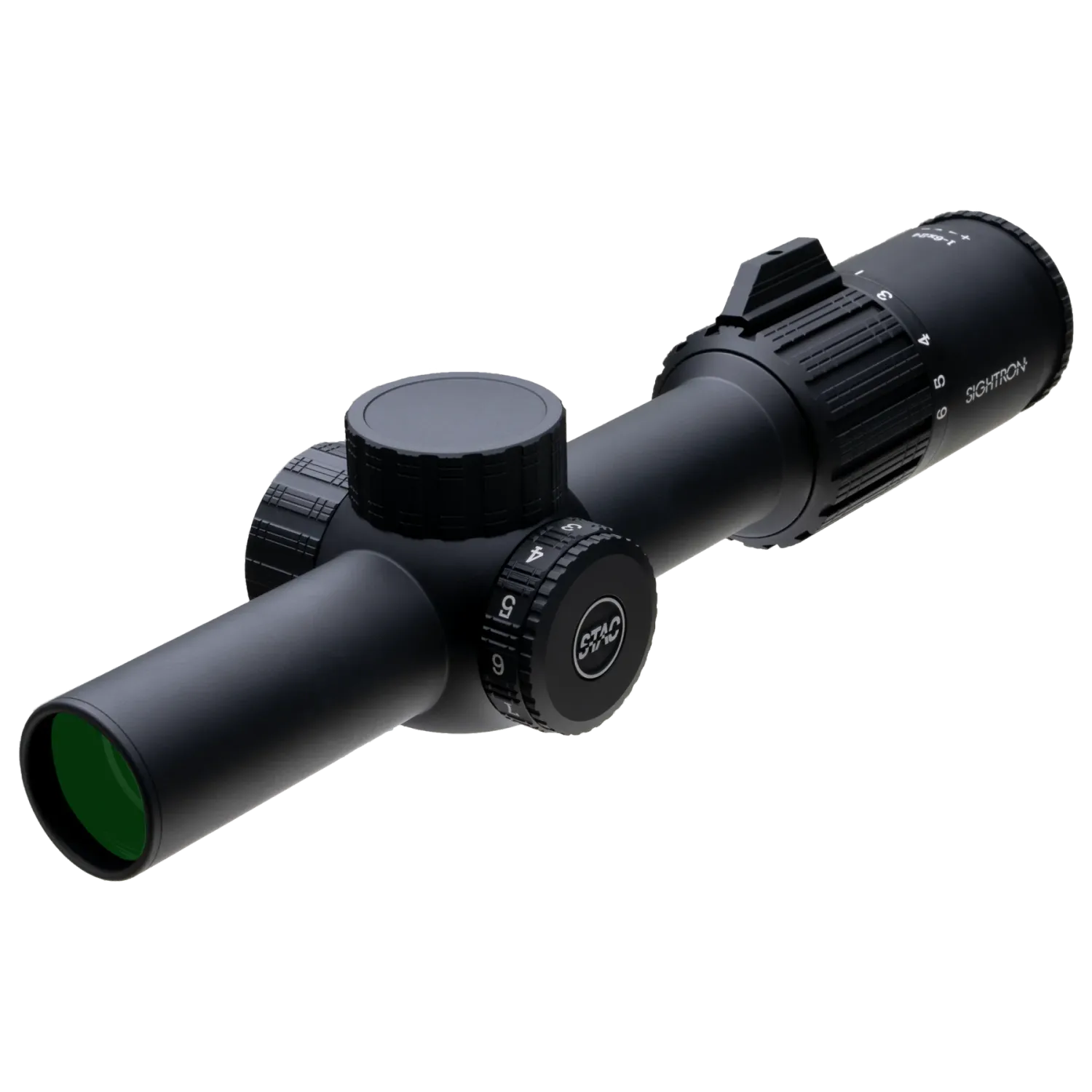

Built for modern sporting rifles chambered in .223 and 5.56. The S-TAC 1-6x24 utilizes the new AR1 reticle, making it great for fast target acquisition and mid-range shooting situations. The illuminated Halo helps with fast target acquisition at close range while the illuminated center dot ensures accurate mid-range target placement. The non-illuminated but easy-to-see drop bars indicate holdovers between 300-600 yards and indicators for 5 and 10mph crosswinds.
Features
ExacTrack W&E System |
Never experience drift with Sightron's patented windage and elevation adjustment technology. It provides proper alignment between the adjustments and the erector tube by maintaining the same constant and accurate point of pressure at zero or extreme adjustments. |
Exclusive Optical Design |
Using the right materials for the right applications, Sightron engineers build optical formulas around the best optical glass to reduce chromatic aberrations, improve color accuracy, while delivering excellent light transmission and best-in-class resolution and sharpness. |
Exclusive MC-333 Multi-Coating Technology |
Exclusive 3 Layer multi-coating process employs a new and revolutionary lens coating technology applied to both surfaces of the lenses for excellent anti-reflection performance and the highest light transmission. |
Second Focal Plane Reticle |
The reticle size remains constant at any zoom range. |
Reticle Material |
Etched reticle for a superior viewing experience. |
Shockproof |
1,000G Shock rating supports even the highest calibers. |
Waterproof |
Rated at IPX7 waterproof standards. |
Fogproof |
Nitrogen gas charged for a lifetime of fog free use. |
Tube Construction |
Milled from a single piece of lightweight, industrial grade aluminum. |
Specifications
Magnification | 1-6X |
Objective Lens Diameter | 24mm |
Eye Relief | 3.9 - 3.3 inches |
Field of View | 110ft (1x) - 19ft (6x) @100 yds |
Tube Size | 30mm |
Turret Style | Capped Low Profile |
Zero Stop | No |
Click Value | 1/4 MOA |
Minutes Per Revolution | 25 MOA |
Max Elevation Adjustment | 100 MOA |
Max Windage Adjustment | 60 MOA |
Parallax Setting | Parallax Free (100 yards) |
Focus Type | N/A |
Reticle Type | Illuminated AR1 |
Focal Plane | Second |
Illumination | 11 intensity levels |
Finish | Matte Black |
Waterproof | IPX 7 rated |
Anti-Reflection Tech | Exclusive MC-333 Multi-coating |
Fog Proof | Yes |
Length | 10.3 inches |
Weight | 22.4 oz |
Sunshade | N/A |
Item Number | 26022 |
UPC Code | 793139260222 |
Model Name | S-TAC1-6X24 IR AR1 |
