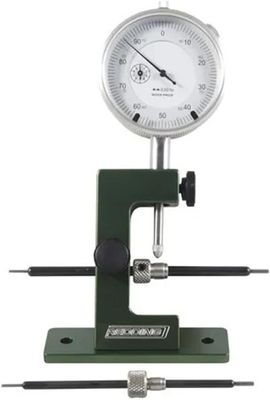

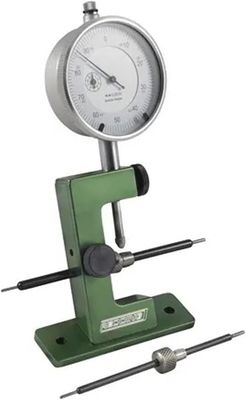

Redding Case Neck Wall Thickness Concentricity Gauge

A Case Neck Gauge possibly is one of the most important tools you will ever use! A quick and easy way to sort cases by neck wall thickness and uniformity. This tool allows you to accurately measure the neck wall thickness of the cartridge case and determine its uniformity. Two mandrel sizes are supplied to allow measurement of all cases from .17 cal. to .338 cal. including cases with small (.060) flash holes. For your convenience the mounting base allows direct attachment to your reloading bench, or use the Redding No. 30520 double “C” clamp.

Pilot stops are required for each caliber. Two pilot stops are supplied with the tool, 076-06121, .22 cal. and 076-06130, .30 cal.

Features

• Measures Cases with Flash Holes as Small as 0: The Redding Case Neck Concentricity Gauge is a great tool for reloaders to use to sort their brass by thickness and uniformity of case necks; many of today's top competitive target shooters measure and sort their brass for consistency and uniformity trying to get everything with their ammunition to be the exact same
• Accurate Measurement: This tool allows you to accurately measure the neck wall thickness of the cartridge case and determine its uniformity; two mandrel sizes are supplied to allow measurement of all cases from .17 cal. to .338 cal. including cases with small (.060) flash holes
• Features: For your convenience the mounting base allows direct attachment to your reloading bench, or use the Redding No. 30520 double "C" clamp; pilot stops are required for each caliber; two pilot stops are supplied with the tool, #06121, .22 cal. and #06130, .30 cal.
• Case Neck Uniformity: Uniformity of case neck wall thickness is an indication of the quality of the cartridge case itself; any large variation (over .0015") in neck wall thickness will generally indicate a similar or greater variation in the body and shoulder of the case; this variation cannot be corrected
• Includes: A separate pilot stop is required for each caliber - comes with 22 caliber and 30 caliber pilot stops; each pilot stop is CNC machined stainless steel, slightly undercut for a snug fit in the case mouth and smooth accurate indicator readings

Specifications

• Brand: Redding
• Product Type: Case Neck
• Size: Standard
