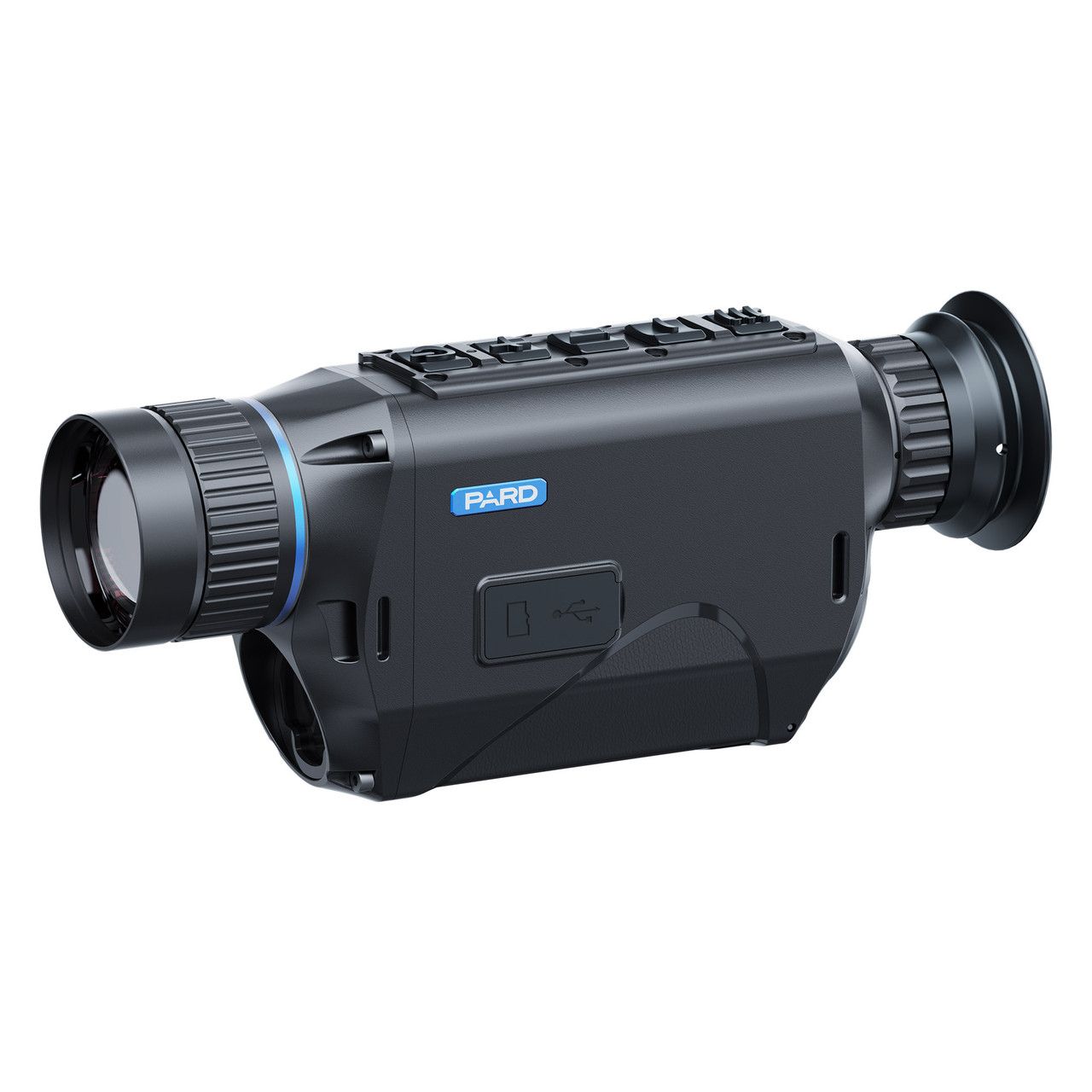

Pard Thermal Monocular TA32 LRF
SKU P-TA32-25
R26 521.74
Lens Size
In stock
1
Save this product for later
Pard Thermal Monocular TA32 LRF
Product Details
The TA is a compact digital thermal handheld available with either a 25mm or 35mm lens. The TA32 features a 384x288 thermal sensor, while the TA62 offers a 640x480 sensor. Both are available with an integrated Laser Range Finder (LRF) accurate to 1200 yards. Weighing just 10.6 oz (330g), the TA fits easily in your hand and includes powerful optical and digital zoom for clear magnification. The 1024x768 OLED display supports thermal detection up to 1400 yards (TA32) and 1500 yards (TA62), with a ≤25mK NETD and 12μm pixel pitch for high sensitivity in low thermal contrast environments. The TA records 1024x768 MP4 video at 50 fps, with download via HDMI or Wi-Fi to Android/iOS devices. LRF models can also capture 2592x1944 JPG photos. Six thermal color modes are included: White Hot, Black Hot, Red Hot, Iron Hot, Edge, and Sky. Powered by a removable 18650 battery, it runs 5–6 hours and operates between -4° and 122°F.
Features
- Best Value Thermal Monocular: Delivering premium thermal performance at an unbeatable price, this monocular detects subtle temperature differences even in low-contrast environments. Its advanced sensor produces sharp, detailed thermal images in any condition.
- Reliable Thermal Detection with 12μm Pixels: With 384x288 or 640x512, resolution and 12μm pixel size, this sensor provides solid thermal performance. It captures temperature variations effectively, aiding in precise target recognition.
- Long-Range Accuracy with 1200yd LRF: Measure distances precisely up to 1200 yards with the built-in LRF. It ensures you stay informed and on target—no matter how far your objective is.
Specifications
- Model: TA32, TA62, TA32-LRF, TA62-LRF
- Sensor Type: Uncooled VOx(vanadium oxide)
- TA32 Sensor Resolution(px): 384*288
- TA62 Sensor Resolution(px): 640*480
- TA32-LRF Sensor Resolution(px): 384*288
- TA62-LRF Sensor Resolution(px): 640*480
- Pixel size(µm): 12*12
- TA32 NETD(mK): ≤25mK（0.025℃）
- TA62 NETD(mK): ≤25mK（0.025℃
- TA32-LRF NETD(mK): ≤35mK（0.025℃）
- TA62-LRF NETD(mK): ≤25mK（0.025℃）
- Frame rate(Hz): 50
- TA32 Human detection distance(m): 800/1100/1400
- TA62 Human detection distance(m): 1200/1500
- TA32-LRF Human detection distance(m): 800/1100/1400
- TA62-LRF Human detection distance(m): 1200/1500
- TA32 Vehicle detection distance(m): 1800/2200/2600
- TA62 Vehicle detection distance(m): 2500/2900
- TA32-LRF Vehicle detection distance(m): 1800/2200/2600
- TA62-LRF Vehicle detection distance(m): 2500/2900
- TA32 Objective lens: 19/25/35
- TA62 Objective lens: 25/35
- TA32-LRF Objective lens: 19/25/35
- TA62-LRF Objective lens: 25/35
- TA32 Optical Magnification(x): 2x/2.6x/3.7x
- TA62 Optical Magnification(x): 1.6x/2.2x
- TA32-LRF Optical Magnification(x): 2/2.6/3.7
- TA62-LRF Optical Magnification(x): 1.6/2.2
- Digital zoom(x): 2x-4x-6x-8x
- PIP Zoom(x): 2X
- TA32 Continuous digital zoom: 2-32X/2.6-41.6X/3.7-59.2X
- TA62 Continuous digital zoom: 1.6-25.6X/2.2-35.2X
- TA32-LRF Continuous digital zoom: 2-32X/2.6-41.6X/3.7-59.2X
- TA62-LRF Continuous digital zoom: 1.6-25.6X/2.2-35.2X
- TA32 Field of view (HxV) Horizontal: 13.8°/10.5°/7.5°
- TA62 Field of view (HxV) Horizontal: 17.5/12.5°
- TA32-LRF Field of view (HxV) Horizontal: 13.8°/10.5°/7.5°
- TA62-LRF Field of view (HxV) Horizontal: 17.5/12.5°
- TA32 Field of view (HxV) Vertical: 10.4°/7.9°/5.6°
- TA62 Field of view (HxV) Vertical: 13.1°/9.4°
- TA32-LRF Field of view (HxV) Vertical: 10.4°/7.9°/5.6°
- TA62-LRF Field of view (HxV) Vertical: 13.1°/9.4°
- TA32 Field of view (HxV) Diagonal: 17.2°/13.1°/9.4°
- TA62 Field of view (HxV) Diagonal: 21.7°/15.6°
- TA32-LRF Field of view (HxV) Diagonal: 17.2°/13.1°/9.4°
- TA62-LRF Field of view (HxV) Diagonal: 21.7°/15.6°
- TA32 Eye relief(mm): 15
- TA62 Eye relief(mm): 15
- TA32-LRF Eye relief(mm): 20
- TA62-LRF Eye relief(mm): 20
- Diopter adjustment(D): ±5D
- TA32 Type: OLED
- TA62 Type: OLED
- TA32-LRF Type: AMOLED
- TA62-LRF Type: AMOLED
- Resolution(px): 1024*768
- Display Scene Mode: City,Rain,Forest
- TA32 Image mode: WT-HOT,BK-HOT,EDGE,RD-HOT,IN-HOT,Sky
- TA62 Image mode: WT-HOT,BK-HOT,EDGE,RD-HOT,IN-HOT,Sky
- TA32-LRF Image mode: WT-Hot,BK-Hot,RD-Hot,Fusion1,Fusion2,IronRed1,IronRed2
- TA62-LRF Image mode: WT-HOT,BK-HOT,EDGE,RD-HOT,IN-HOT,Sky
- TA32-LRF Photo resolution(px): 2592*1944
- TA62-LRF Photo resolution(px): 2592*1944
- Photo format: .JPG
- Video resolution(px): 1024*768
- Video format: .mp4
- Storage(GB): TF card(128 GB)(Max)
- Image Engine: Pard IREA
- TA32-LRF LRF detection range(yds): 1200yds
- TA62-LRF LRF detection range(yds): 1200yds
- PIP: Yes
- Loop recording: Yes
- Red dot: Yes
- Shutter: Mechanical shutter
- Microphone: Yes
- Firmware Upgrade: Yes
- USB Type-C: Yes
- HDMI Output: Yes
- WiFi: Yes
- Supported Apps: PardVision
- Battery type: Lithium Ion 18650*1
- Output voltage(V): 3.7V
- TA32 Operating time(h): ≤5h
- TA62 Operating time(h): ≤5h
- TA32-LRF Operating time(h): ≤6h
- TA62-LRF Operating time(h): ≤6h
- External power supply(V): Type-C
- Degree of protection: IP67
- TA32 Operating temp(°C): -20℃~50℃
- TA62 Operating temp(°C): -20℃~50℃
- TA32-LRF Operating temp(°C): -20℃~50℃/-4℉~122℉
- TA62-LRF Operating temp(°C): -20℃~50℃/-4℉~122℉
- Housing: Aluminium Alloy + Composite
- Objective lens: All-glass multi-coated lens
- TA32 Product dimension(L x W x H, mm): 165*68*44
- TA62 Product dimension(L x W x H, mm): 165*68*44
- TA32-LRF Product dimension(L x W x H, mm): 182*57*71
- TA62-LRF Product dimension(L x W x H, mm): 182*57*71
