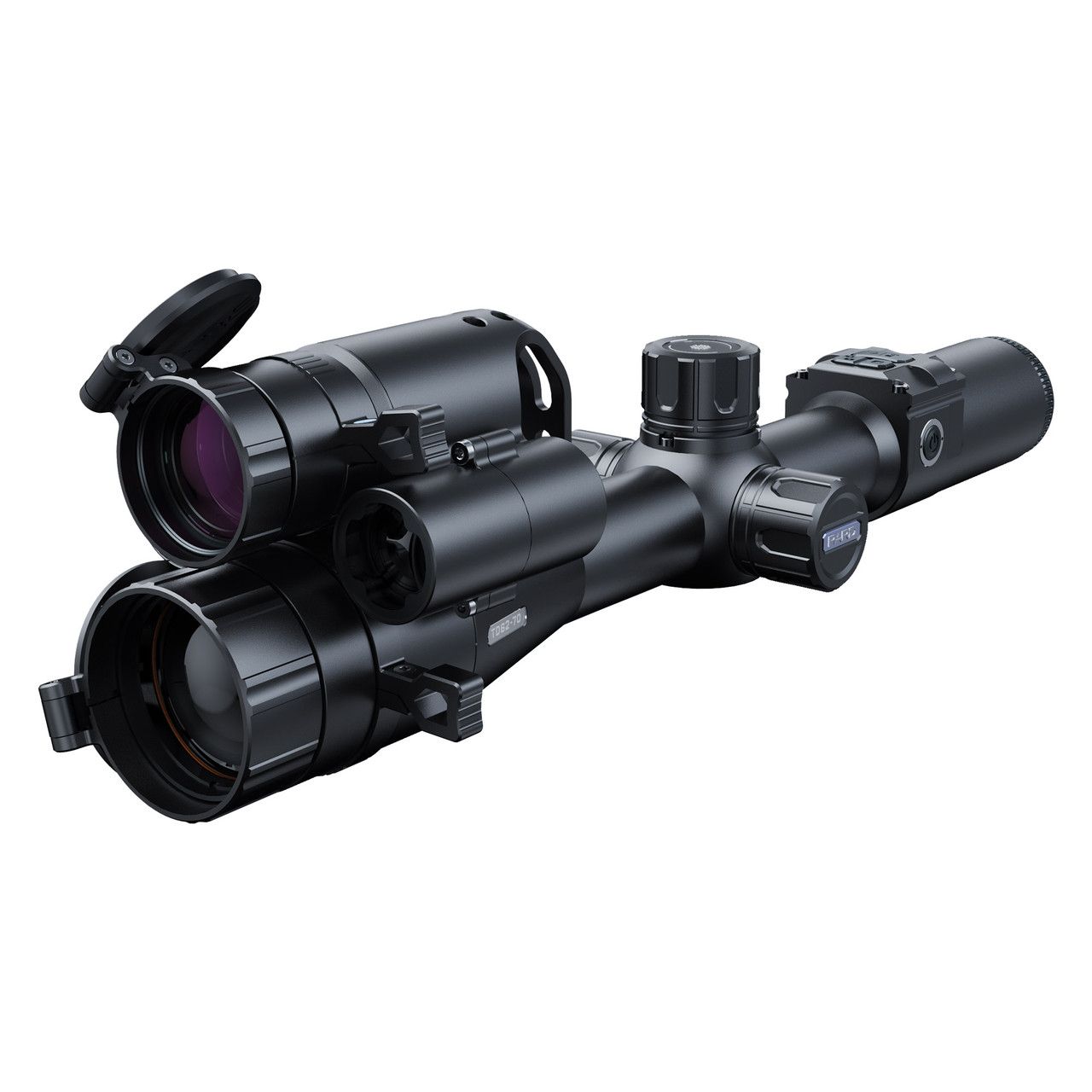

Pard TD32 (LRF) Multi-spectral Riflescope

The TD32 features a 384x288 thermal sensor, while the TD62 is equipped with a 640x512 uncooled Vox IR sensor—delivering sharp target identification and high-resolution detection. This advanced multispectral device combines thermal imaging with night vision, allowing users to view both simultaneously via a unique PIP mode on an 800x800 IPS LCD display. It includes a 1200-yard laser rangefinder that integrates with an onboard ballistics calculator, automatically adjusting reticle aim. The TD's visible light sensor (1920x1080 CMOS) offers performance down to 0.001 lux using a 70mm lens, while the VCSEL IR illuminator provides 3 intensity levels and a directional beam up to 383 yards (350m). Additional highlights include a removable 128GB Micro SD card, wireless connectivity via the PardVision app, USB-C & HDMI support, and rugged IP67 protection. Weighing just 28oz (800g), it's recoil-rated to 6000J and supports operation in temperatures from -4°F to 122°F.

Features

Specifications

• Model: TD32-70, TD62-70
• Classification: Multi-spectral Thermal/Night Vision Scope.
• Type: Uncooled Vox IR Sensor
• TD32-70 Resolution(pixel): 384*288
• TD62-70 Resolution(pixel): 640*512
• TD32-70 Pixel Size(µm): 12*12
• TD62-70 Pixel Size(µm): 12*12
• NETD: ≤25mK（0.025℃）
• Frame Rate(Hz): 50
• TD32-70 Human Detection Distance(m): 1400
• TD62-70 Human Detection Distance(m): 1800
• TD32-70 Vehicle Detection Distance(m): 2600
• TD62-70 Vehicle Detection Distance(m): 3300
• Image Engine: PARD IREA
• TD32-70 Objective lens(mm): 35
• TD62-70 Objective lens(mm): 45
• TD32-70 Optical Magnification(x): 3
• TD62-70 Optical Magnification(x): 2
• Thermal Sensor Digital Zoom(x): 2
• TD32-70 Continuous Digital Zoom(x): 3-6
• TD62-70 Continuous Digital Zoom(x): 2-4
• TD32-70 Field of View (HxV) Horizontal: 5.7°
• TD62-70 Field of View (HxV) Horizontal: 5.6°
• TD32-70 Field of View (HxV) Vertical: 5.7°
• TD62-70 Field of View (HxV) Vertical: 5.6°
• TD32-70 Field of View (HxV) Diagonal: 8°
• TD62-70 Field of View (HxV) Diagonal: 7.9°
• Focus range: 3m-∞
• Type: CMOS Sensor
• TD32-70 Resolution(pixel): 1920*1080
• TD62-70 Resolution(pixel): 2560*1440
• Pixel Size(μm): 2.9
• Sensitivity(lux): 0.001
• TD32-70 Frame Rate(Hz): 60/30
• TD62-70 Frame Rate(Hz): 30
• Image Engine: PARD VLEA
• Objective Lens(mm): 70
• TD32-70 Optical Magnification(x): 6.5
• TD62-70 Optical Magnification(x): 3.2
• Visible Light Sensor Digital Zoom(x): 2
• TD32-70 Continuous Digital Zoom(x): 6.5-13
• TD62-70 Continuous Digital Zoom(x): 3.2-6.4
• TD32-70 Field of View (HxV) Horizontal: 2.6°
• TD62-70 Field of View (HxV) Horizontal: 3.4°
• TD32-70 Field of View (HxV) Vertical: 2.6°
• TD62-70 Field of View (HxV) Vertical: 3.4°
• TD32-70 Field of View (HxV) Diagonal: 3.6°
• TD62-70 Field of View (HxV) Diagonal: 4.8°
• Visible Light Sensor Focus range: 3m-∞
• Type: IPS
• Resolution(pixel): 800*800
• Reticle Style: 6
• Reticle Color: 4(Red/White/Yellow/Green)
• Scene Mode: City/Rain/Forest
• Image Mode: WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
• Eye Relief(mm): 100
• Diopter Adjustment(D): -5~+3
• Photo Resolution(pixel): 2592*1944
• Photo Format: .JPG
• Video Resolution(pixel): Thermal: 1024*768/Night Vision: 1440*1080
• Video Format: .mp4
• Storage(GB): Micro SD card (Max. 128)
• LRF Detection Range(yd/m): 1200/1000
• PIP: Yes
• Gyroscope: Yes
• Loop Recording: Yes
• Red Dot: Yes
• E-compass: Yes
• Shutter: Mechanical shutter
• Microphone: Yes
• Firmware Upgrade: Yes
• IR Type: VCSEL
• IR power(W): 5
• IR Illuminating Level: 3 Levels
• IR Distance(m): 350
• IR Wavelength(nm): 850/940
• USB Type-C: Yes

• HDMI Output: Yes

• WiFi: Yes

• Supported Apps: PardVision

• Battery type: Li-ion 21700*1

• Output Voltage(V): 3.7
• Operating Time(h): ≤6

• External Power Supply Type: Type-C

• Degree of Protection: IP67
• Operating Temp(°C/°F): -20 ~ +50 / -4 ~ +122

• Recoil Resistance(J): 6000

• Housing: Aluminum Alloy

• Objective lens: All-glass multi-coated lens
• Product Dimension(L * W * H, mm): 350*91*95

• N.W/pcs(without battery, g): 800
