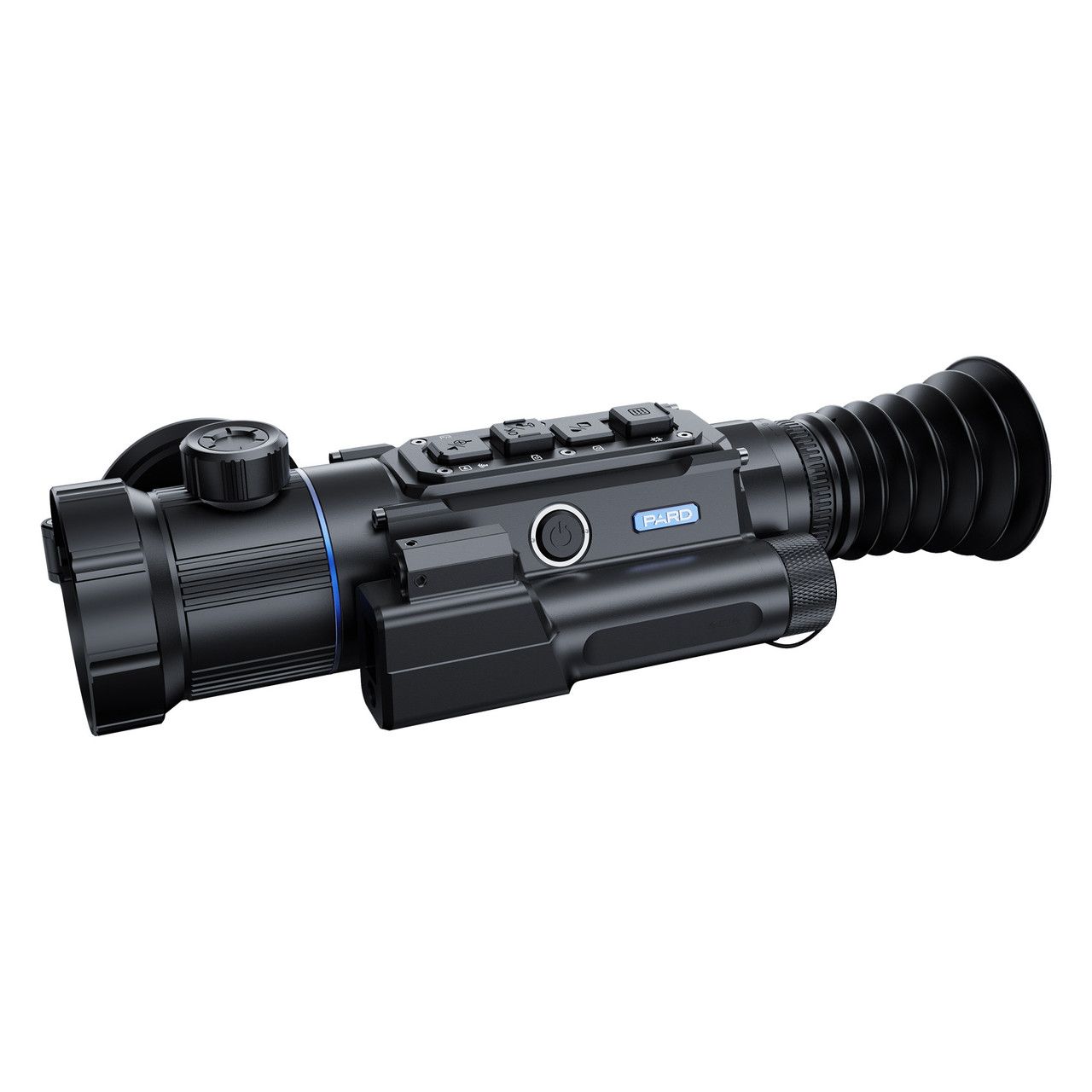

Pard Ocelot Thermal Imaging Scope
SKU OC6-50LRF
R46 086.96
In stock
1
Save this product for later
Pard Ocelot Thermal Imaging Scope
Product Details
The Ocelot family of thermal scopes offers compact, lightweight designs with lens options of 25 and 50mm lenses. Each scope provides 100mm (about 3.9 inches) eye relief and includes a laser rangefinder effective up to 1094 yards. Built from durable aircraft-grade aluminum, the scopes mount easily to a picatinny rail using a cantilever bracket. Base magnifications range from 2.1x to 3.0x, with 2-8x digital zoom. The 800x800 IPS display supports thermal sensors of 480x360 or 640x512, detecting targets between 2407 yards and 5468 yards depending on the model. Featuring next-gen vanadium oxide sensors, 12μm pixel pitch, 50Hz refresh rate, and a NETD of ≤20mK, the Ocelot performs well in low thermal contrast environments. It offers six thermal image modes, four reticle colors, six reticle styles, and three scene modes. Powered by a removable 18650 battery, it runs up to 5 hours and operates between -22° and 131°F. With an IP67 rating, it is fully protected against dust and submersion up to 3ft. Advanced features include a ballistics calculator, PIP mode, digital gyroscope, recoil-activated and loop recording, red dot indicator, hot target tracking, electronic compass, mechanical shutter, integrated microphone, and firmware updates. Bluetooth connectivity allows use with the PARDVision app. Images and videos can be saved to a 128GB micro SD card. All lenses are multi-coated for optimal performance and protection.
Features
- Reliable Thermal Detection with 12μm Pixels: With 480x360 or 640x512 resolution and 12μm pixel size, this sensor provides solid thermal performance. It captures temperature variations effectively, aiding in precise target recognition.
- World's First True Circular Display: This device proudly features the first true circular display ever developed, setting a new global standard in optical design. Combined with an extended 100mm eye relief, it delivers a more immersive, comfortable, and natural viewing experience—perfect for demanding tactical or outdoor use.
- Smart Ballistics, Reliable Rangefinding: This system pairs a powerful 1200-yard LRF with a built-in ballistic calculator for instant, intelligent aiming solutions. No guesswork—just real-time shooting data based on distance, bullet weight and so on. Ideal for precision shooters, hunters, and tactical professionals.
Specifications
- Model: Ocelot 480, Ocelot 640
- Classification: Thermal Imaging Scope
- Type: Uncooled VOx(vanadium oxide)
- Ocelot 480 Resolution(px): 480*360
- Ocelot 640 Resolution(px): 640*512
- Pixel Size(µm): 12*12
- NETD: ≤20mK（0.020℃
- Frame Rate(Hz): 50
- Ocelot 480 Human Detection Distance(m): 1800/2600
- Ocelot 640 Human Detection Distance(m): 2600
- Ocelot 480 Objective Lens(mm): 35/50
- Ocelot 640 Objective Lens(mm): 50
- Ocelot 480 Optical Magnification(x): 2.3/3.3
- Ocelot 640 Optical Magnification(x): 2.5
- Digital Zoom(x): 2/4/6/8
- Ocelot 480 Field of view (HxV) Horizontal: 7.1°/5.0°
- Ocelot 640 Field of view (HxV) Horizontal: 7.0°
- Ocelot 480 Field of view (HxV) Vertical: 7.1°/5.0°
- Ocelot 640 Field of view (HxV) Vertical: 7.0°
- Ocelot 480 Field of view (HxV) Diagonal: 10.0°/7.0°
- Ocelot 640 Field of view (HxV) Diagonal: 9.9°
- Eye Relief(mm): 100
- Diopter Adjustment(D): - 5~3
- Type: IPS
- Resolution(px): 800*800
- Reticle Style: 6
- Reticle Color: Red/White/Yellow/Green
- Scene Mode: City/Rain/Forest
- Image Mode: WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
- Photo Resolution(px): 1536*1536
- Photo Format: .JPG
- Video Resolution(px): 768*768
- Video Format: .mp4
- Storage: Micro SD card (128 GB,Max)
- Image Engine: Pard IREA
- LRF Detection Range: 1000m/1200yd
- Ballistic Calculator: Yes
- PIP: Yes
- Gyroscope: Yes
- Recoil-activated Recording: Yes
- Loop Recording: Yes
- Hot Track: Yes
- E-compass: Yes
- Shutter: Mechanical shutter
- Microphone: Yes
- Firmware Upgrade: Yes
- USB Tpye-C: Yes
- HDMI Output: Yes
- WiFi: Yes
- Supported Apps: PardVision2
- Battery Type: Lithium Ion 21700*1
- Output Voltage(V): 3.7
- Operating Time(h): ≤5
- External Power Supply: Type-C
- Protective Class: IP67
- Operating Temp(℃/°F)): -30 ~ +55 / -22 ~ +131
- Recoil Resistance(J): 6000
- Housing: Aluminum Alloy
- Objective Lens: All-glass multi-coated lens
- Ocelot 480 Product Dimension(with LRF, L * W * H, mm): Ocelot 480-35mm lens: 182*68*79 Ocelot 480-50mm lens: 182*68*79
- Ocelot 640 Product Dimension(with LRF, L * W * H, mm): 182*68*79
- Ocelot 480 N.W/pcs(with LRF&battery, g): Ocelot 480-35mm lens: 616.5g Ocelot 480-50mm lens: 647.5g
- Ocelot 640 N.W/pcs(with LRF&battery, g): 647.5g
