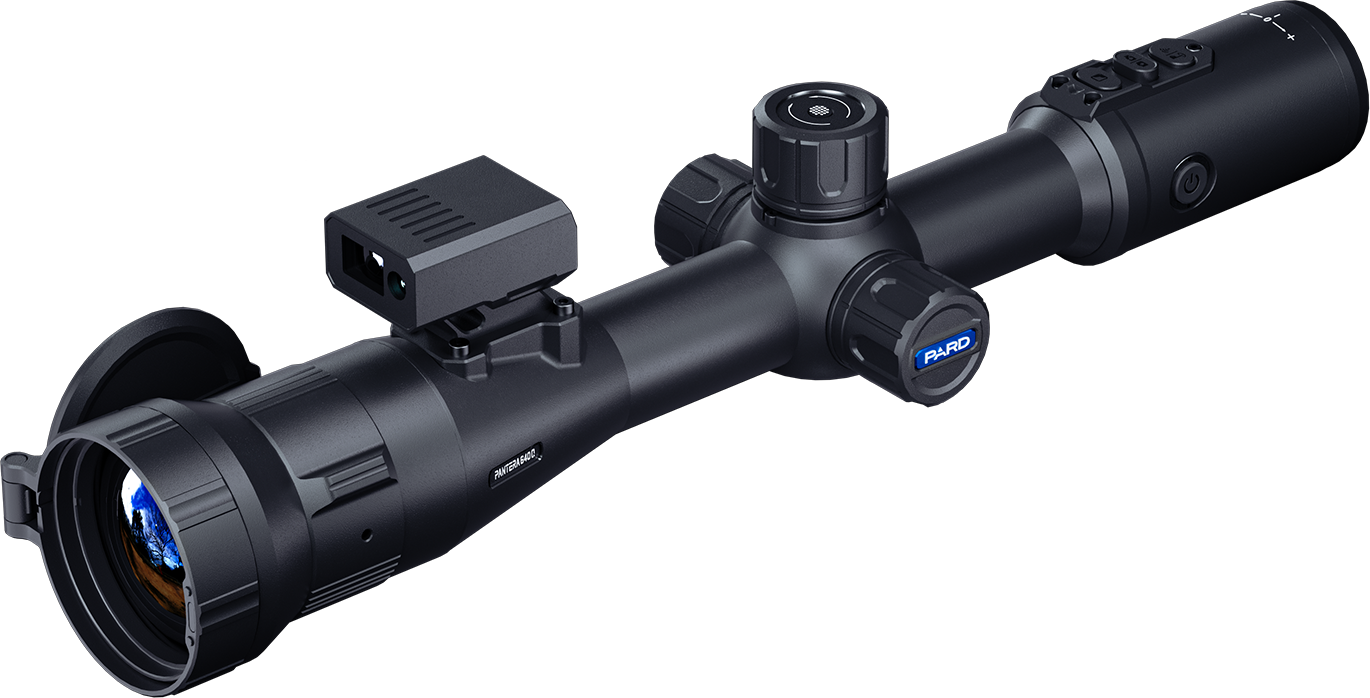

Pantera 480 Q (Thermal Scope with Rangefinder) 50mm LRF

Pantera Q refined design, enhanced clarity.

Features

• NETD≤18mK exceptionally sensitive: The high-sensitivity NETD≤18mK dramatically improves image quality, enabling clearer imaging and more precise detection of subtle temperature differences.
• 1600*1200 Quad screen, enhanced clarity: Upgraded 1600*1200 high-resolution display provides exceptional image clarity and fine detail, delivering a vivid and immersive viewing experience.
• Effortless focus with ergonomic design: Designed with an enlarged surface and a slight protrusion, the objective focus ring offers intuitive and comfortable adjustment, even when wearing gloves or operating in harsh conditions.
• Magnetic lens cap, quiet & convenient: The magnetic lens cap allows for silent and smooth opening and closing, minimizing prey disturbance and ensuring a more efficient hunting experience.
• Larger, high-low buttons for easy and comfortable use: The enlarged high and low button design provides enhanced tactile feedback for easy and accurate operation—even in low-light conditions.
• Removable & rechargeable 21700 battery, extended operating time: Equipped with a higher capacity 21700 battery, easily rechargeable and replaceable, ensuring extended operation time and reliable power throughout the hunting journey.
• 1000m Laser rangefinder & ballistic calculator: Experience unmatched precision with our laser rangefinder and advanced ballistic calculation technology, providing effortless target acquisition and shooting.
• Lightweight aluminium alloy body, robust and durable: Crafted from durable, lightweight aluminum alloy, offering superior scratch and wear resistance, designed to endure tough environments for lasting performance.
• 6 Image modes: In order to highlight targets, Pantera Q series features six image modes (WT-HOT/BK-HOT/H-Light/RD-HOT/IN-HOT/SKY) for users to choose according to preferences.
• 3 Scene mode: Three optional scene modes (City/Rain/Forest) provide outstanding adaptability across different environments.
• IP67 Rating: Super protection class ensures reliable performance even in extreme weather conditions.
• 7 Reticle shapes in 4 colour: Pantera Q series boasts 7 reticle shapes in Red/White/Yellow/Green, tailored for diverse hunting scenes and preferences.
• Recoil-activated recording: Recoil-activated recording provides an ongoing 20-second loop, when recoil is detected, the video is automatically moved to the Micro SD card.
• Hot track: Hot track enables swift detection and tracking of prey, ensuring they are never lost from sight.

Specifications

• Type: Uncooled VOx(vanadium oxide)
• Resolution(pixel): 480*360
• Pixel Size(µm): 12*12
• NETD: ≤18mK（0.018℃）
• Frame Rate(Hz): 50
• Detection Distance(m): 1800/2600
• Objective Lens(mm): 35/50
• Optical Magnification(x): 2.6/3.7
• Digital Zoom(x): 2/4/6/8
• Field of View (Horizontal): 9.4°/6.6°
• Field of View (Vertical): 7.1°/4.9°
• Field of View (Diagonal): 11.7°/8.2°
• Field of View (m @100m Horizontal): 16.5/11.5
• Field of View (m @100m Vertical): 12.3/8.6
• Focus Range: 10m-∞
• Eye Relief(mm): 60
• Diopter Adjustment(D): -5~+5
• Type: OLED
• Resolution(pixel): 1600*1200
• Reticle Style: 7
• Reticle Color: Red/White/Yellow/Green
• Scene Mode: City/Rain/Forest
• Image Mode: WT-HOT/BK-HOT/H-light/RD-HOT/IN-HOT/SKY
• Photo Resolution(pixel): 1600*1200
• Photo Format: .JPG
• Video Resolution(pixel): 1600*1200
• Video Format: .mp4
• Storage(GB): Micro SD card (Max. 128GB)
• Image Engine: Pard IREA
• LRF Detection Range(m/yds): 1000/1200
• Ballastic Caculator: Yes
• PIP: Yes
• Hot Track: Yes
• Gyroscope: Yes
• Recoil-activated Recording: Yes
• Loop Recording: Yes
• E-compass: Yes
• Shutter: Mechanical shutter
• Firmware Upgrade: Yes
• USB Type-C: Yes
• HDMI Output: Yes
• WiFi: Yes
• Supported Apps: PardVision2
• Battery Type: Lithium Ion 21700*1
• Output Voltage(V): 3.7
• Operating Time(h,max): ≤8
• External Power Supply(V): USB Type-C
• Degree of Protection: IP67
• Operating Temp(°C/°F): -30 ~ +55 / -22 ~ +131
• Recoil Resistance(J): 6000
• Housing: Aluminum Alloy
• Objective Lens: All-glass multi-coated lens
• Product Dimension/with LRF(L * W * H, mm): 345*86*80
• N.W/pcs(with battery, g): 723
