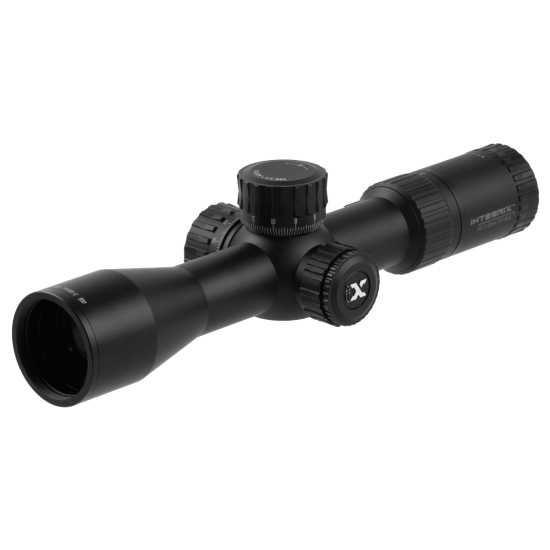

Integrix iX6 3-18x44 34mm FFP Mid Power Scope - A2 MOA

The INTEGRIX® iX6 3-18X44 reaches beyond the traditional 3-15X magnification range for more distance in a compact package. An ideal competition choice for mid-to-long range targets, the 34mm tube allows for extra adjustment range. Available in the simpler A2 crosshairs in minutes or the M1 Mil precision reticle. Suited for PRS competition, mid-to-long range shooting, or hunting when you require next-level precision and low light visibility.

Features

• Individually centration tested German SCHOTT glass and Japanese OHARA
• Multi-coated lenses for glare, reflection, and scratch resistance
• Over 92% light transmission for maximum low light performance
• Edge-to-edge HD image quality, contrast, and resolution with minimized aberrations
• Extra wide 38 to 6 ft FOV at 100 yards (13 to 2 m at 100 m) with large consistent eyebox
• Durable and reliable environmental performance rated from -40°F (-40°C) to 160°F (71°C)
• 3x Nitrogen purged for fog and IPX7 waterproofing
• Rated for .338 LAPUA Magnum with life fire testing and collimator confirmation onsite
• Red and green reticle Illumination with 8 brightness intensities and 12 hour automatic shutoff
• Intuitive lockable and zero resettable windage and elevation turrets
• Elevation turret equipped with patented zero stop, simple and easy to set
• Side adjustable parallax turret for smooth adjustment from 30 yds / 27 m to infinity
• Ultra compact and lightweight combined with the expanded versatility of 6 power
• Serrated power ring and rear adjustable eyepiece
• Effortless magnification transitions with oversized throw lever included

Specifications

• Auto Shutoff: 12 hrs
• Ballistic Drop Compensation: No
• Battery Loading: Left Side Turret
• Battery Type: CR2032 3V
• Brightness Mode(s): Manual
• Brightness Settings: 8
• Caliber Rating: .338 Lapua Magnum
• Click Value: 1/4 MOA
• Diopter Adjustment: -3D to +2D
• Diopter Type: Friction Secured
• Elevation Travel: 90 MOA (Up 60 MOA / Down 30 MOA)
• Exit Pupil: 11 - 2.5 mm
• Eye Relief: 3.94 in (100 mm)
• Field of View (Angular FOV:) 7.2° - 1.2°
• Field of View (Linear FOV): 37.7 - 6.3 ft @ 100 yds (12.6 - 2.1 m @ 100 m)
• Focal Plane: FFP (First Focal Plane)
• Illuminated: Yes
• Light Transmission: 92%
• Magnification Max.: 18X
• Magnification Min.: 3X
• Materials: 6061-T6 Aluminum
• Parallax: 30 yds (27.4 m) - Infinity
• Parallax Control: Left Side Adjustable Turret
• Range Estimation: No
• Reticle: A2 MOA
• Reticle Color: Red and Green
• Reticle Type: Etched Glass
• Surface Finish: Anodized
• Temperature Operating Range: -40⁰F to +160⁰F (-40⁰C to +71⁰C)
• Travel Per Revolution: 24 MOA
• Waterproof Rating: IPX7
• Weight: 29.7 oz (841 g)
• Windage Travel: 48 MOA
• Zero Stop: Yes

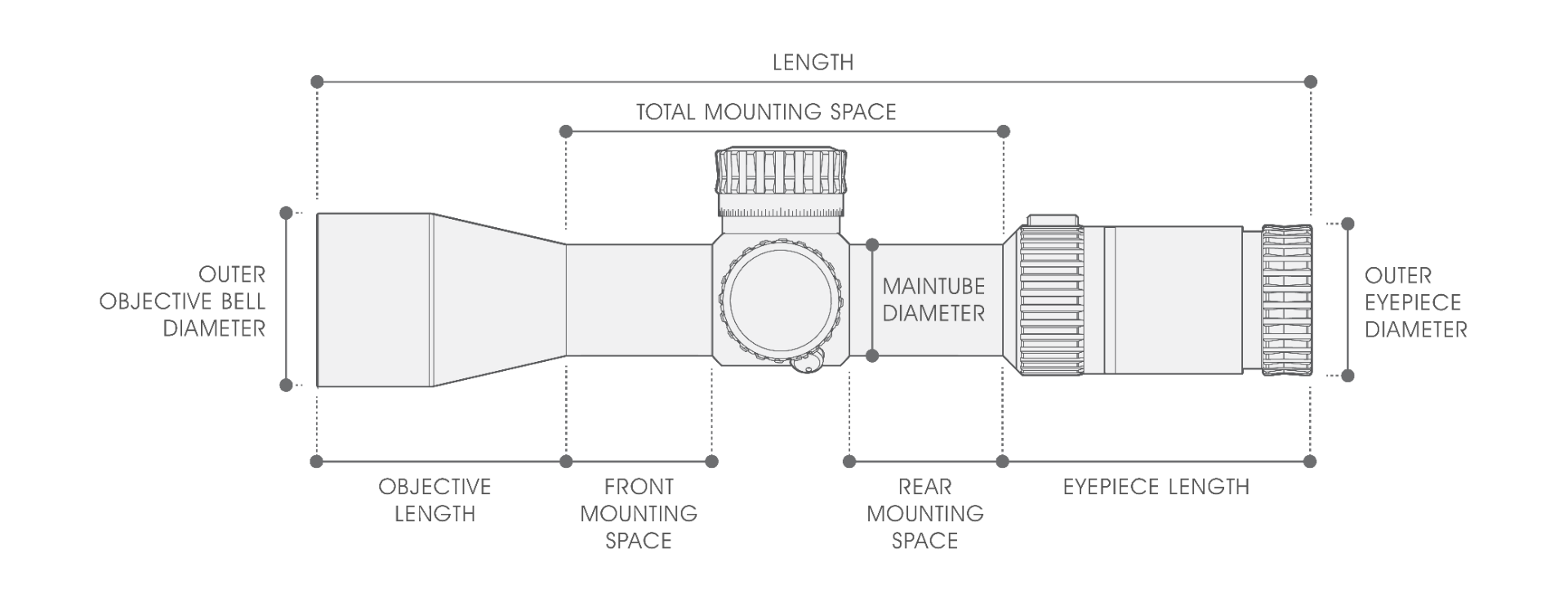

• Elevation Turret Diameter: 1.65 in (42 mm)
• Elevation Turret Height: 1.84 in (47 mm)
• Eyepiece Diameter: 1.81 in (46 mm)
• Front Mounting Space: 1.77 in (45 mm)
• Length: 11.89 in (302 mm)
• Objective Diameter: 2.09 in (53 mm)
• Objective Lens Diameter: 44 mm
• Objective Tube Length: 3.15 in (80 mm)
• Ocular Tube Length: 3.46 in (88 mm)
• Parallax/Illumination Turret Diameter: 1.50 in (38 mm)
• Parallax/Illumination Turret Height: 1.82 in (46 mm)
• Rear Mounting Space: 1.85 in (47 mm)
• Total Mounting Space: 5.28 in (134 mm)
• Tube Diameter: 34 mm
• Windage Turret Diameter: 1.65 in (42 mm)
• Windage Turret Height: 1.82 in (46 mm)

Reticle Breakdown as per image
