We didn't invent crossbow scopes... We perfected them. Scopes designed to withstand the rigours of crossbows with reticle systems guaranteed to make you a better shot!

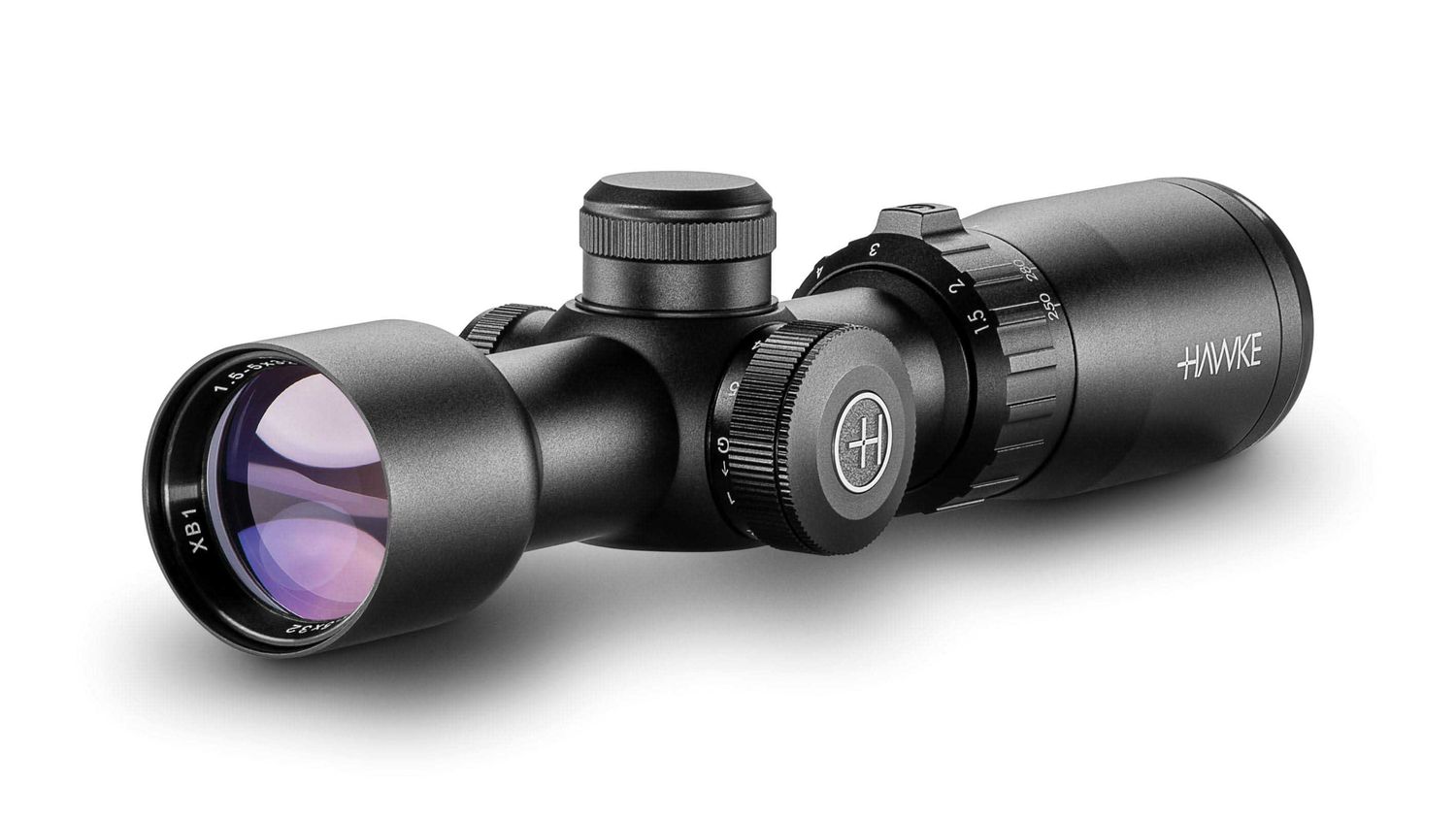

XB1 SR Reticle: 10yd aim points from a 20yd zero out to 100yds. Bracketing of 4 or 8 inches and aim marks measuring 1.5 inches across at the corresponding distances. Speeds from 250 to 425 fps.
Features
Capped Low-Profile Turrets
1 Inch Mono-tube chassis
Illumination
1⁄2 MOA low-profile fingertip turrets
Fixed parallax at 45 metres
11 layer Fully Multi-Coated lenses
High torque zoom ring
Fast focus eyebell
Suitable speeds 250fps - 425fps
Nitrogen purged
Shockproof
Waterproof
Fog proof
Specifications
Objective Lens: 32mm
Reticle: XB1 SR
Illumination: 5 Levels (Red & Green)
Illumination Control: Stepped Rheostat
Parallax: Fixed
Magnification: 1.5 - 5x
Optical System: System H2
Focal Plane: SFP (Second Focal Plane)
Scope Tube: 1 Inch
Field of View: 75 - 22.5ft @100yds | 25 - 7.5m @100m
Field of View (°): 14.3 - 4.3
Eye Relief: 3in | 76mm
PX/Focus: 50yds | 46m
Exit Pupil: 0.84 - 0.25″ | 21.3 - 6.4mm
Click Value: 1⁄ 2MOA
Elevation Turret Clicks (max): 120 MOA
Windage Turret Clicks (max): 120 MOA
Ocular Type: Fast Focus
Power Selector: Knurled Posi-Grip
Lens Coating: Fully Multi-Coated
Calibration (Speed): 250fps - 425fps
Length: 8.3in | 211mm
Weight: 13oz | 368g
Turret Type (Elevation): Capped. Low-Profile. Resettable
Turret Type (Windage): Capped. Low-Profile. Resettable
