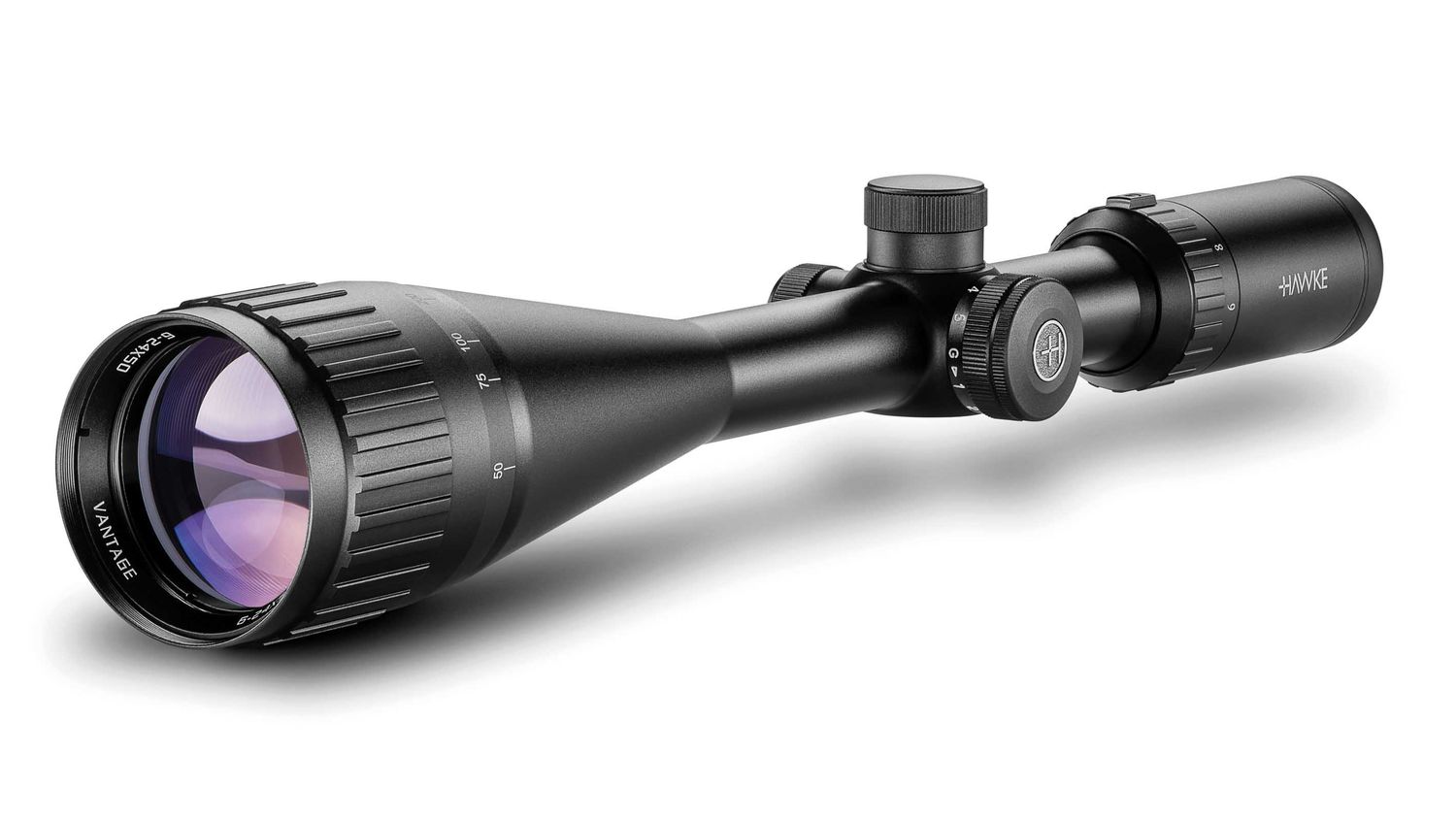

An extensive range of scopes to suit all calibres and disciplines. All Vantage riflescopes feature our H2 optics in a variety of configurations. IR models feature precision glass etched reticles with multi-stage illumination in both red and green.
Mil Dot Illuminated Reticle: The classic Mil Dot features multiple aim points for hold-over and hold-under. Accurate mil spacing on 10x, featuring 4 Mil Dots in each direction. Glass etched reticle that has 5 brightness levels of illumination in both red and green, or can be turned off for a solid black reticle.
Features
Capped Low-Profile Turrets
1 Inch Mono-tube chassis
Adjustable Objective For Parallax Correction
Illumination
11 layer Fully Multi-Coated lenses
High torque zoom ring
Fast focus eyebell
Nitrogen purged
Shockproof
Waterproof
Fog proof
All calibre rated
Specifications
Objective Lens: 50mm
Reticle: Mil Dot IR
Illumination: 5 Levels (Red & Green)
Illumination Control: Stepped Rheostat
Parallax: Adjustable Objective
Magnification: 6 - 24x
Optical System: System H2
Focal Plane: SFP (Second Focal Plane)
Scope Tube: 1 Inch
Field of View: 15.1 - 4.2ft @100yds | 5 - 1.4m @100m
Field of View (°): 2.9 - 0.8
Eye Relief: 3.5in | 90mm
PX/Focus: 15yds - ∞ | 14m - ∞
Exit Pupil: 0.33 - 0.08″ | 8.3 - 2.1mm
Click Value: 1⁄ 4MOA
Elevation Turret Clicks (max): 60 MOA
Windage Turret Clicks (max): 60 MOA
Ocular Type: Fast Focus
Power Selector: Knurled Posi-Grip
Lens Coating: Fully Multi-Coated - 11 Layers

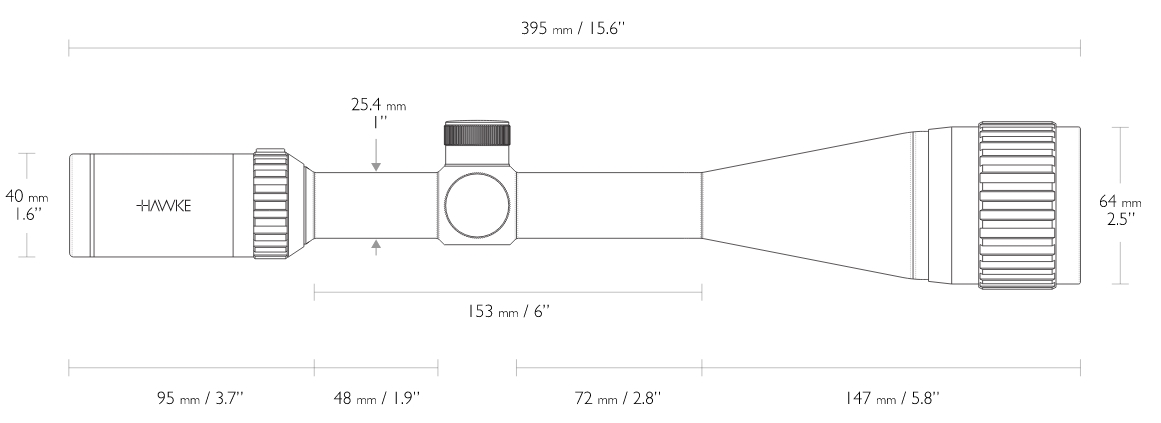

Length: 15.6in | 395mm
Weight: 22oz | 625g
Turret Type (Elevation): Capped. Low-Profile. Resettable
Turret Type (Windage): Capped. Low-Profile. Resettable
