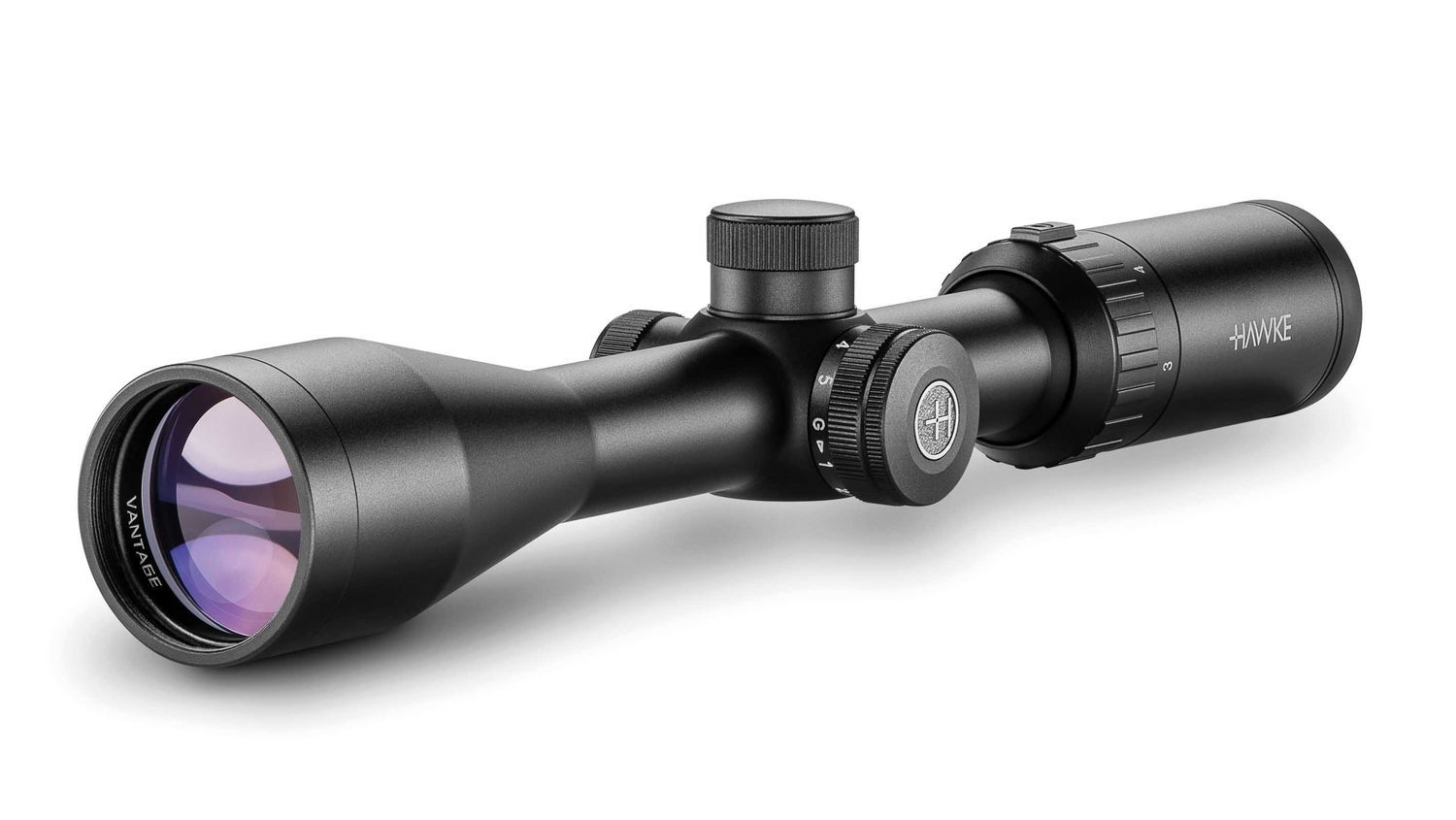

The Hawke Vantage 3-9 x 40mm features 11 layers of fully multi-coated optics for excellent clarity and has a 1inch mono-tube chassis for superior strength.
| Chassis | 1" Mono-tube |
| Optical System | 3-9× |
| Objective | 40 mm |

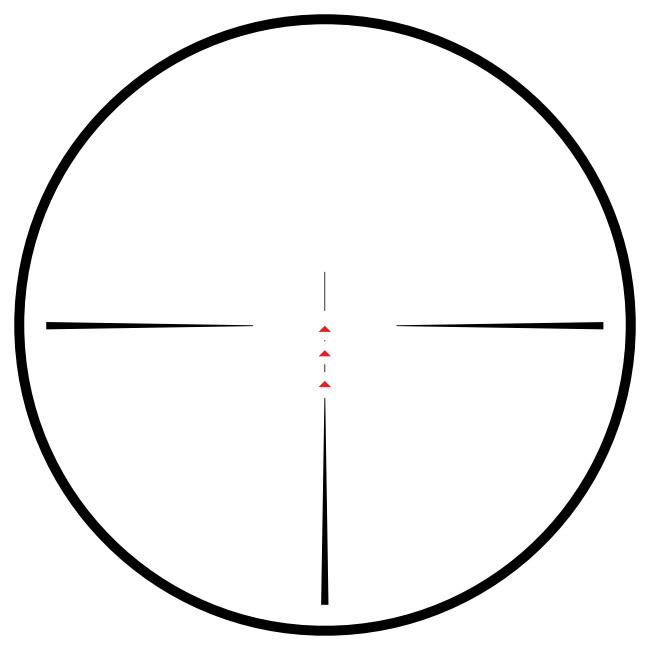

| Reticle | 30/30 Centre Cross |
| Illumination | Red / Green - 5 Levels |
| Focus/Parallax | Fixed - 91 m / 100yds |
| Field of View: m @ 100 m/ ft @ 100yds | 13 - 4.2m / 39 - 12.7ft |
| Eye Relief | 89 mm / 3.5″ |
| Length | 315 mm / 12.4″ |
| Weight | 430g / 15.2oz |
| Material | Aluminium |
| Exit Pupil | 13 - 4 / 0.5 - 0.2″ |
| Ocular Type |
Fast Focus
|
| Lens Coating | Fully Multi-Coated - 11 Levels |
| Power Selector Style | Knurled Posi-Grip |
| Focal Plane | Second Focal Plane (SFP) |
| Elevation Increment | ¼ MOA |
| Elevation Adjustment Range | 100 MOA |
| Windage Increment | ¼ MOA |
| Windage Adjustment Range | 100 MOA |
| Turrent Caps | Yes |
| Turrent Type | Low Profile |
