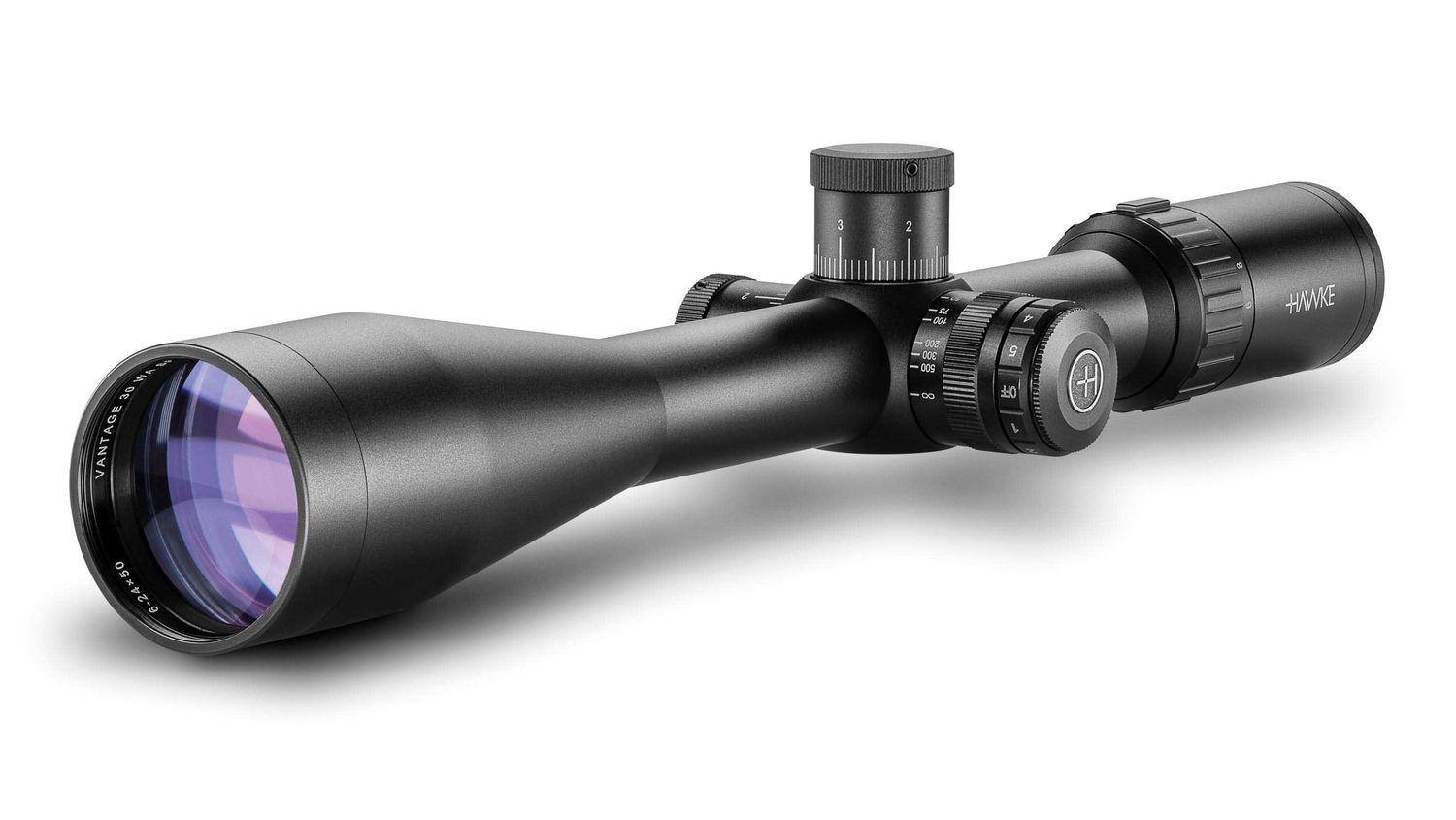

An extensive range of scopes to suit all calibres and disciplines. All Vantage riflescopes feature our H2 optics in a variety of configurations. IR models feature precision glass etched reticles with multi-stage illumination in both red and green.
10x Half Mil Dot Reticle: Accurate mil spacing on 10x. Features dots and ties at half mil spacing, ensuring that there is always an aim point available. Glass etched fully floating reticle. One of the additional benefits of the 10x Half Mil Dot is the mil spacing and 0.2 mil spacing segments of the hollow bars which can be used to accurately range find targets.
Features
Exposed Locking Turrets
30mm Mono-tube chassis
Wide Angle
Side Focus
Illumination
11 layer Fully Multi-Coated lenses
High torque zoom ring
Fast focus eyebell
Nitrogen purged
Shockproof
Waterproof
Fog proof
All calibre rated
Specifications
Objective Lens: 50mm
Reticle: 10x Half Mil Dot
Illumination: 5 Levels (Red & Green)
Illumination Control: Stepped Rheostat
Parallax: Side Focus
Magnification: 6 - 24x
Optical System: System H2
Focal Plane: SFP (Second Focal Plane)
Scope Tube: 30mm
Field of View: 20.7 - 5.4ft @100yds | 6.9 - 1.8m @100m
Field of View (°): 4 - 1
Eye Relief: 3.5in | 90mm
PX/Focus (Error free from): 10yds - ∞ | 9m - ∞
Exit Pupil: 0.33 - 0.08″ | 8.3 - 2.1mm
Click Value: 1⁄ 10MRAD
Elevation Turret Clicks (max): 20 MRAD
Windage Turret Clicks (max): 20 MRAD
Ocular Type: Fast Focus
Power Selector: Knurled Posi-Grip
Lens Coating: Fully Multi-Coated - 11 Layers
Length: 15.4in | 390mm
Weight: 26.3oz | 745g
Turret Type (Elevation): Exposed. Locking. Resettable
Turret Type (Windage): Exposed. Locking. Resettable
