DESCRIPTION

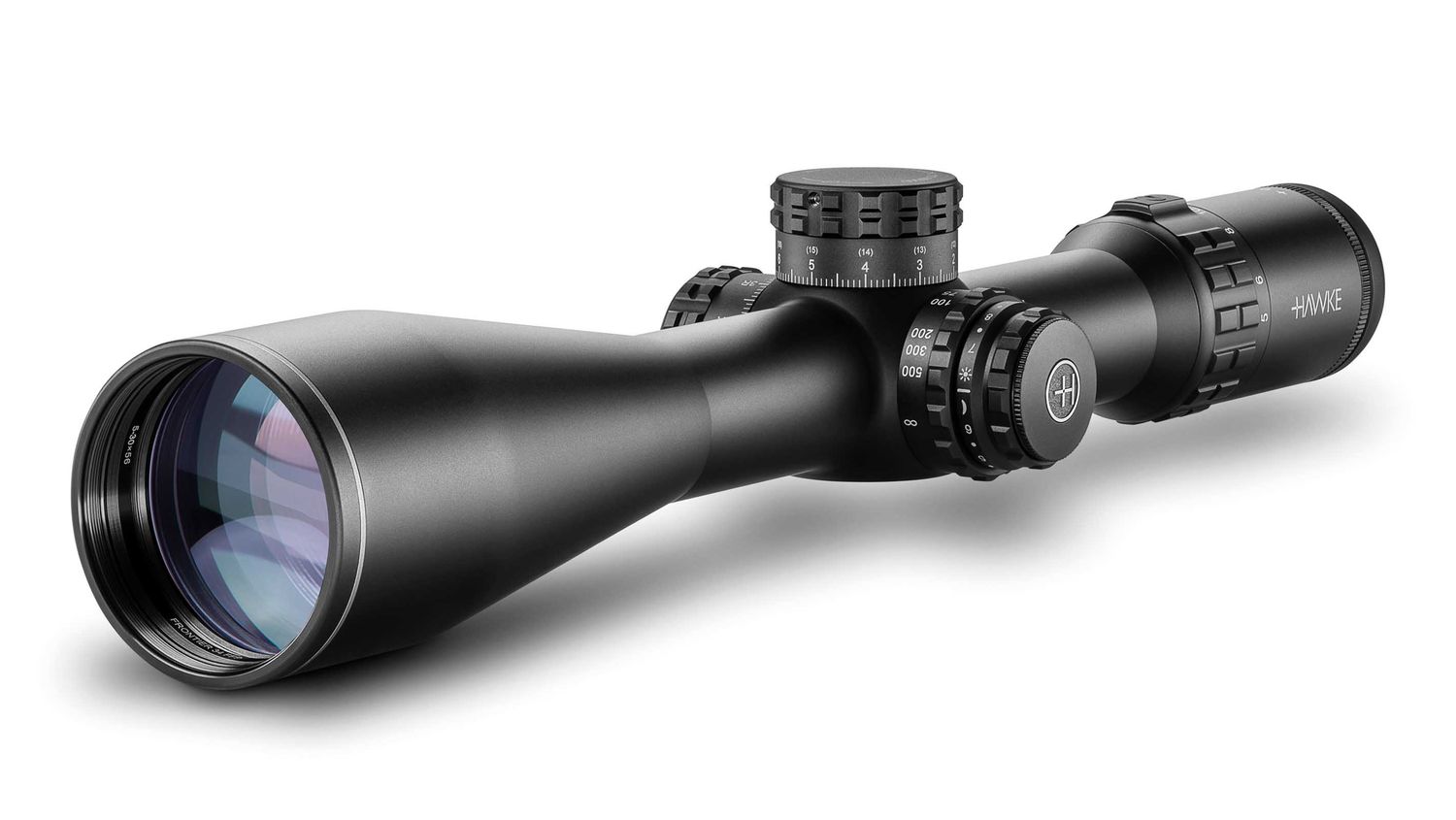

All models feature Hawke's new H7 optics with high zoom ratio, supreme clarity and light transmission.
Precision build components and larger 34mm monotube construction designed for extreme long range shooting.
FEATURES
RETICLE
FFP Mil Pro Ext. Reticle (30x)
The FFP Mil Pro Ext. reticle was developed specifically for first focal plane optical systems and based around the common principles of Mil spaced reticles. With Mil spaced markings extending out to 15 Mil of holdover, the FFP Mil Pro Ext is a versatile reticle that provides aim points no matter how extreme the distance.
All reticle measurements are Mil spaced and offer 1 Mil, 0.2 Mil and 0.1 Mil brackets for range finding. Every Mil spacing on the lower section is numbered to ensure quick and easy acquisition of target and ease of reference.
The thick outer posts are hollowed to ensure they can be seen at all magnifications, without blocking out too much of the view.
The FFP MOA Pro Ext. reticle was developed specifically for first focal plane optical systems and based around the common principles of MOA spaced reticles. With MOA spaced markings extending out to 60 MOA of holdover, the FFP MOA Pro Ext. is a versatile reticle that provides aim points no matter how extreme the distance. All reticle measurements are MOA spaced and offer 1 MOA and 0.5 MOA brackets for range finding. Every fourth MOA spacing on the lower section is numbered to ensure quick and easy acquisition of target and ease of reference.
The thick outer posts are hollowed to ensure they can be seen at all magnifications, without blocking out too much of the view.
SPECIFICATIONS
Length |
392mm / 15.4" |
Weight | 830g / 29.3oz |
Eye Relief | 102mm / 4" |
Focus/Parallax - Fixed Focus | 14m - ∞ / 15yds - ∞ |
Field of View | 7.5 - 1.3m @100m / 22.5 - 3.8ft @100yds |
Exit Pupil | 11.2-1.9mm / 0.44-0.07" |
Chassis | 34mm Mono-tube |
Optical System | 5-30x |
Objective |
56mm |
Illumination |
Red (11 Levels with Off Positions In-between) |
Reticle | Mil Pro Ext / MOA Pro Ext |
Elevation Increment | 1⁄10 MRAD / 1⁄4 MOA |
Elevation Adjustment Range | 29 MRAD / 99 MOA |
Windage Increment | 1⁄10 MRAD / 1⁄4 MOA |
Windage Adjustment Range | 15 MRAD / 53 MOA |
Material | Aluminium |
Ocular Type | Locking Fast Focus |
Lens Coating |
Fully Multi-Coated - 21 Layers |
Power Selector Style | Removable Zoom Lever |
Focal Plane | First Focal Plane (FFP) |
Turret Caps | No |
Turret Type |
Exposed Zero Lock 'n' Stop Turrets |
