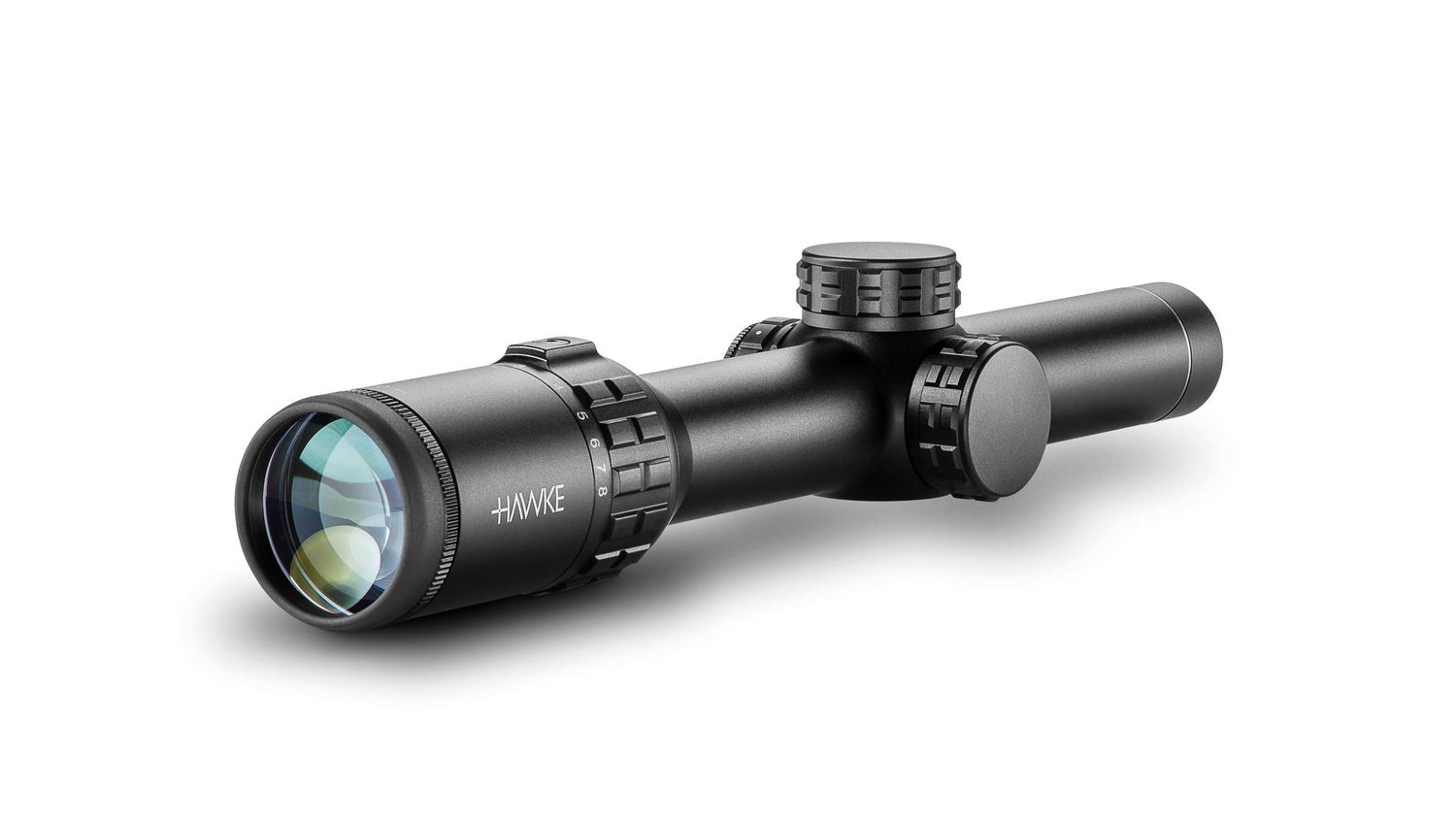

All models feature Hawke’s H7 optics with high zoom ratio, supreme clarity and light transmission. Supreme accuracy for rifle shooting, driven and hunting applications.
L4A Fiber Dot Reticle: The unprecedented Fiber Dot reticles give an intensely bright red illuminated center dot that really can be called daylight bright. The classic L4A Dot reticle gives a clean and uninterrupted view of your target. Combined with the Fiber Dot illumination, you can be guaranteed that you won't miss a thing.
Features
Capped Low-Profile Turrets
30mm Mono-tube chassis
Fibre Optic Illumination
Wide Angle FOV
High volume eyebox
100mm eye relief
High grade, low dispersion Crown glass
21 layer Fully Multi-Coated lenses
Zoom magnification throw lever (removable)
Fast focus eyebell with lock ring
Supplied with Professional metal flip-up covers.
Nitrogen purged
Shockproof
Waterproof
Fog proof
Specifications
Objective Lens: 24mm
Reticle: L4A FD (4x)
Illumination: 11 Levels (Red)
Illumination Control: Stepped Rheostat
Parallax: Fixed
Magnification: 1 - 8x
Optical System: System H7
Focal Plane: SFP (Second Focal Plane)
Scope Tube: 30mm
Field of View: 116.3 - 14.6ft @100yds / 38.8 - 4.9m @100m
Field of View (°): 21.9 - 2.8
Eye Relief: 4in / 102mm
PX/Focus: 100yds / 91m
Exit Pupil: 0.94 - 0.12″ / 24 - 3mm
Click Value: 1⁄ 2MOA
Elevation Turret Clicks (max): 300 MOA
Windage Turret Clicks (max): 300 MOA
Ocular Type: Locking Fast Focus
Power Selector: Knurled Posi-Grip with Removable Zoom Lever
Lens Coating: Fully Multi-Coated - 21 Layers
Length: 10.9in / 278mm
Weight: 18.3oz / 520g
Turret Type (Elevation): Capped. Low-Profile. Resettable
Turret Type (Windage): Capped. Low-Profile. Resettable
