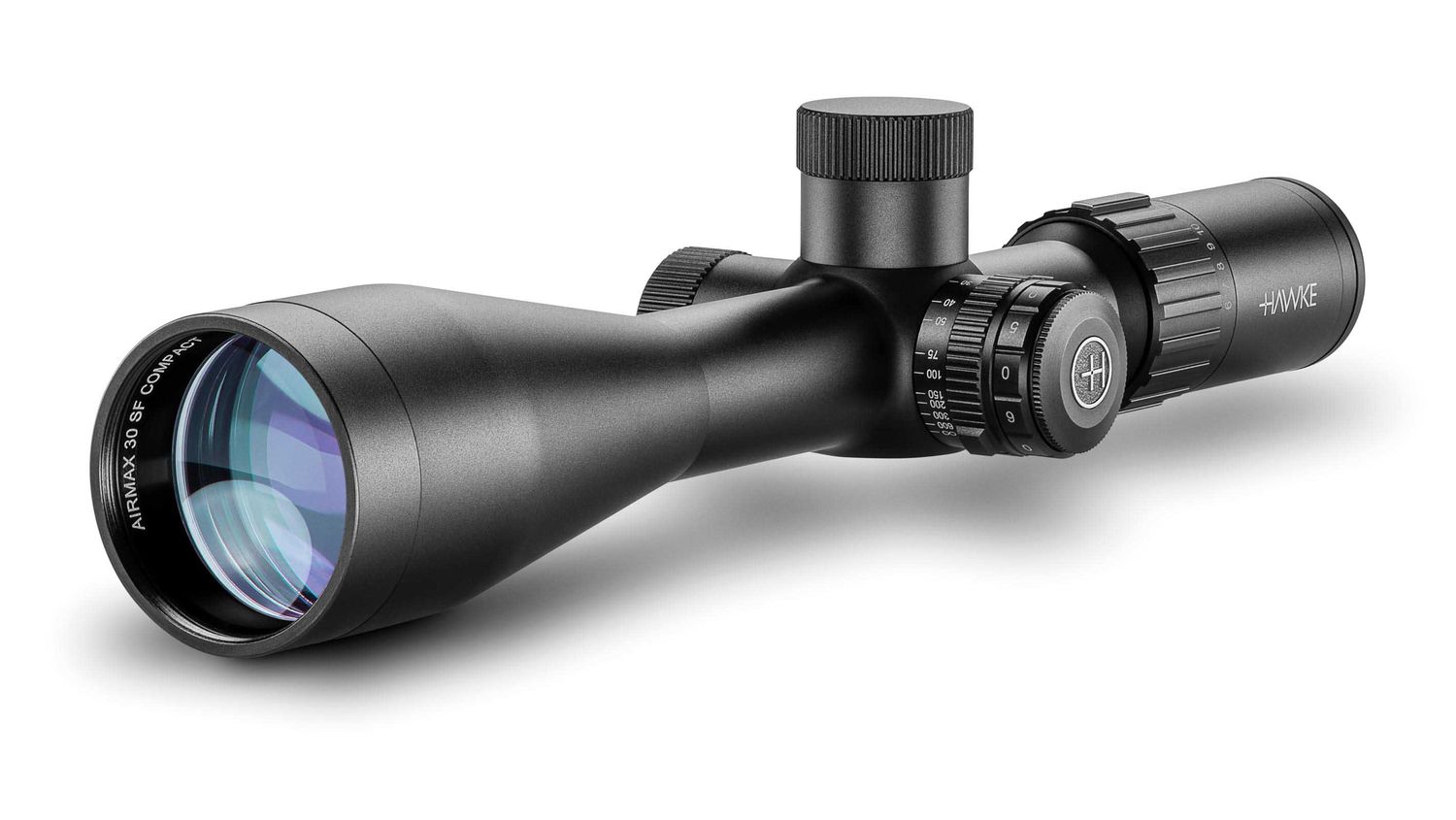

Hawke Airmax 30 SF Compact 6-24x50
SKU SHAWKE13220
R6 337.55
Reticle
In stock
1
Hawke Airmax 30 SF Compact 6-24x50
Product Details
Specialist scopes designed by airgunners for airgunners! Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.
AMX Reticle: Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories. Half Mil Dot spacing on the lower post provides increased aim points for long shots. The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
Features
- Capped Target Turrets
- 30mm Mono-tube chassis
- Wide Angle
- Side Focus
- Illumination
- 16 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
- AMX reticle designed for airguns
- Nitrogen purged
- Shockproof
- Waterproof
- Fog proof
- All calibre rated
Specifications
- Objective Lens: 50mm
- Reticle: AMX IR
- Illumination: 6 Levels (Red)
- Illumination Control: Stepped Rheostat with Off Positions In-between
- Parallax: Side Focus
- Magnification: 6 - 24x
- Optical System: System H2
- Focal Plane: SFP (Second Focal Plane)
- Scope Tube: 30mm
- Field of View: 21.9 - 5.5ft @100yds | 7.3 - 1.8m @100m
- Field of View (°): 4.2 - 1.1
- Eye Relief: 3in | 76mm
- PX/Focus (Error free from): 10yds - ∞ | 9m - ∞
- Exit Pupil: 0.33 - 0.08″ | 8.3 - 2.1mm
- Click Value: 1⁄ 10MRAD
- Elevation Turret Clicks (max): 16 MRAD
- Windage Turret Clicks (max): 16 MRAD
- Ocular Type: Fast Focus
- Power Selector: Knurled Posi-Grip
- Lens Coating: Fully Multi-Coated - 16 Layers
- Length: 13in | 329mm
- Weight: 23.6oz | 670g
- Turret Type (Elevation): Target. Capped. Resettable
- Turret Type (Windage): Target. Capped. Resettable
