Name: Pard Ocelot Zoom Thermal Imaging Scope | Pro-Outdoor
Brand: PARD
SKU: OC6Z-25/50LRF
Price: 71739.13 ZAR
Availability: InStock

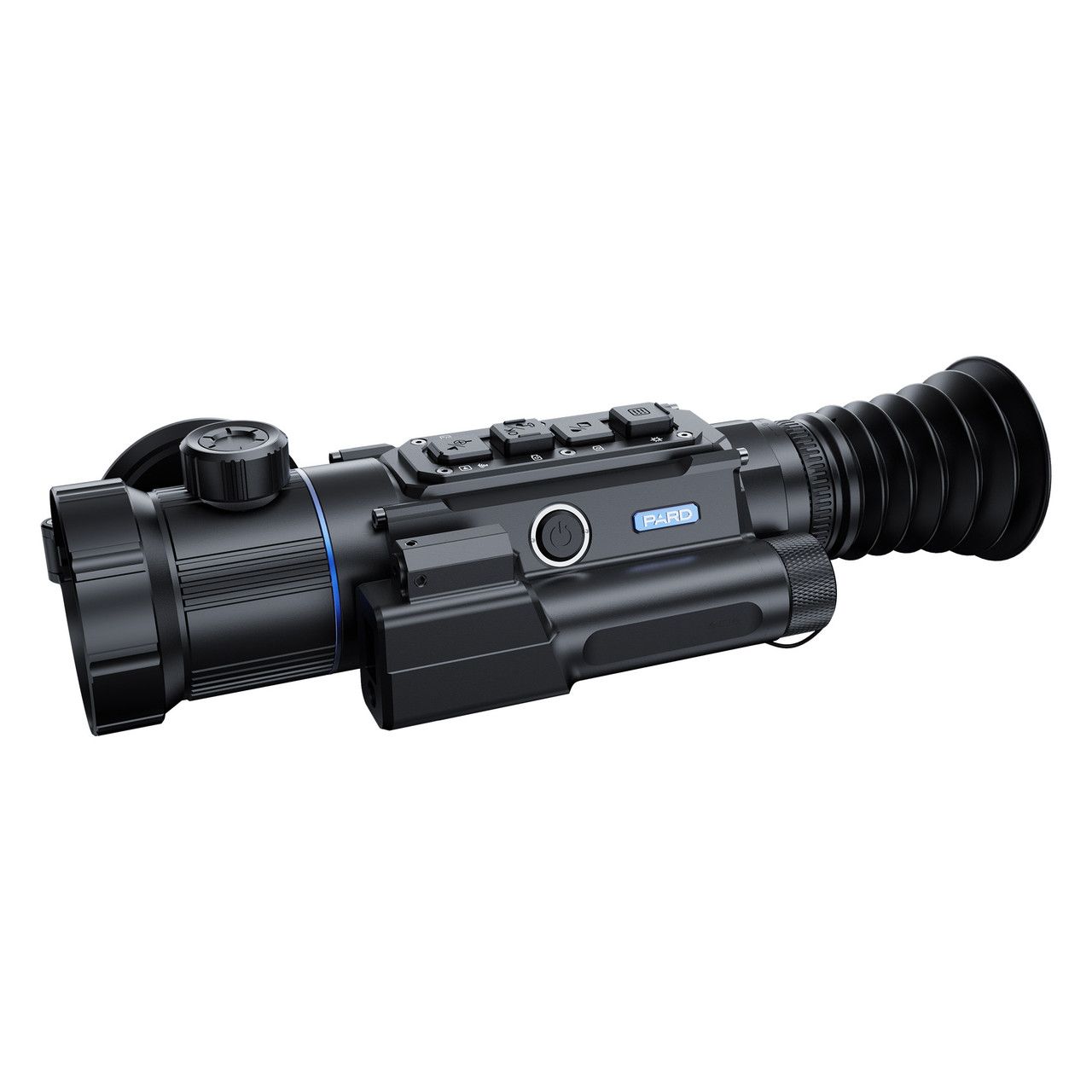

Pard Ocelot Zoom Thermal Imaging Scope

Product Details

The Ocelot 640-Zoom features 1.3x–2.5x optical zoom with 8x digital zoom and 640x512 sensor resolution. It has the world’s first true circular display with 100mm eye relief and a built-in laser range finder (LRF) with a 1200-yard range, integrated with a ballistic calculator for accurate targeting.

Features

Versatile Zoom, Tailored to Your Needs: Select from 1.3x or 2.5x optical base magnification to suit different engagement ranges. The built-in 2/4/6/8× digital zoom enhances your ability to observe fine details—giving you the flexibility to adapt instantly in the field.
World's First True Circular Display: This device proudly features the first true circular display ever developed, setting a new global standard in optical design. Combined with an extended 100mm eye relief, it delivers a more immersive, comfortable, and natural viewing experience—perfect for demanding tactical or outdoor use.
Smart Ballistics, Reliable Rangefinding: This system pairs a powerful 1200-yard LRF with a built-in ballistic calculator for instant, intelligent aiming solutions. No guesswork—just real-time shooting data based on distance, bullet weight and so on. Ideal for precision shooters, hunters, and tactical professionals.

Specifications

Model: Ocelot Zoom
Type: Uncooled VOx(vanadium oxide)
Resolution(pixel): 640*512
Pixel Size(µm): 12*12
NETD: ≤20mK（0.02℃）
Frame Rate(Hz): 50
Detection Distance(m): 1200/2600
Objective Lens(mm): 25/50
Optical Magnification(x): 1.3/2.5
Digital Zoom(x): 2/4/6/8
Field of view Horizontal: 14.0°/7.0°
Field of view Vertical: 14.0°/7.0°
Field of view Diagonal: 19.8°/9.9°
Eye Relief(mm): 100
Diopter Adjustment(D): -5~+3
Type: IPS
Resolution(pixel): 800*800
Reticle style: 6
Reticle color: 4(Red/White/Yellow/Green)
Scene Mode: City/Rain/Forest
Image Mode: WT-HOT/BK-HOT/RD-HOT/IN-HOT/SKY
Photo Resolution(pixel): 1536*1536
Photo Format: .JPG
Video Resolution(pixel): 768*768
Video Format: .mp4
Storage: Micro SD card(Max 128GB)
Image Engine: Pard IREA
LRF Detection Range(m/yd): 1000/1200
Ballistic Calculator: Yes
PIP: Yes
Gyroscope: Yes
Recoil-activated Recording: Yes
Loop Recording: Yes
Red Dot: No
Hot Track: Yes
E-compass: Yes
Shutter: Mechanical Shutter
Microphone: Yes
Firmware Upgrade: Yes
USB Type-C: Yes
HDMI Output HDMI: Yes
WiFi: Yes
Support Apps: PardVision2
Battery Type: Lithium 21700*1
Output Voltage(V): 3.7
Operating Time(h): ≤6
External Power Supply: Type-C
Protective Class: IP67
Operating Temp(℃/°F): -30 ~ +55 / -22 ~ +131
Recoil Resistance(J): 6000
Housing: Aluminum Alloy
Objective Lens: All-glass multi-coated lens
Product Dimension/with LRF(L*W*H,mm): 182*68*79
N.W/pcs(with LRF&battery,g): 709
