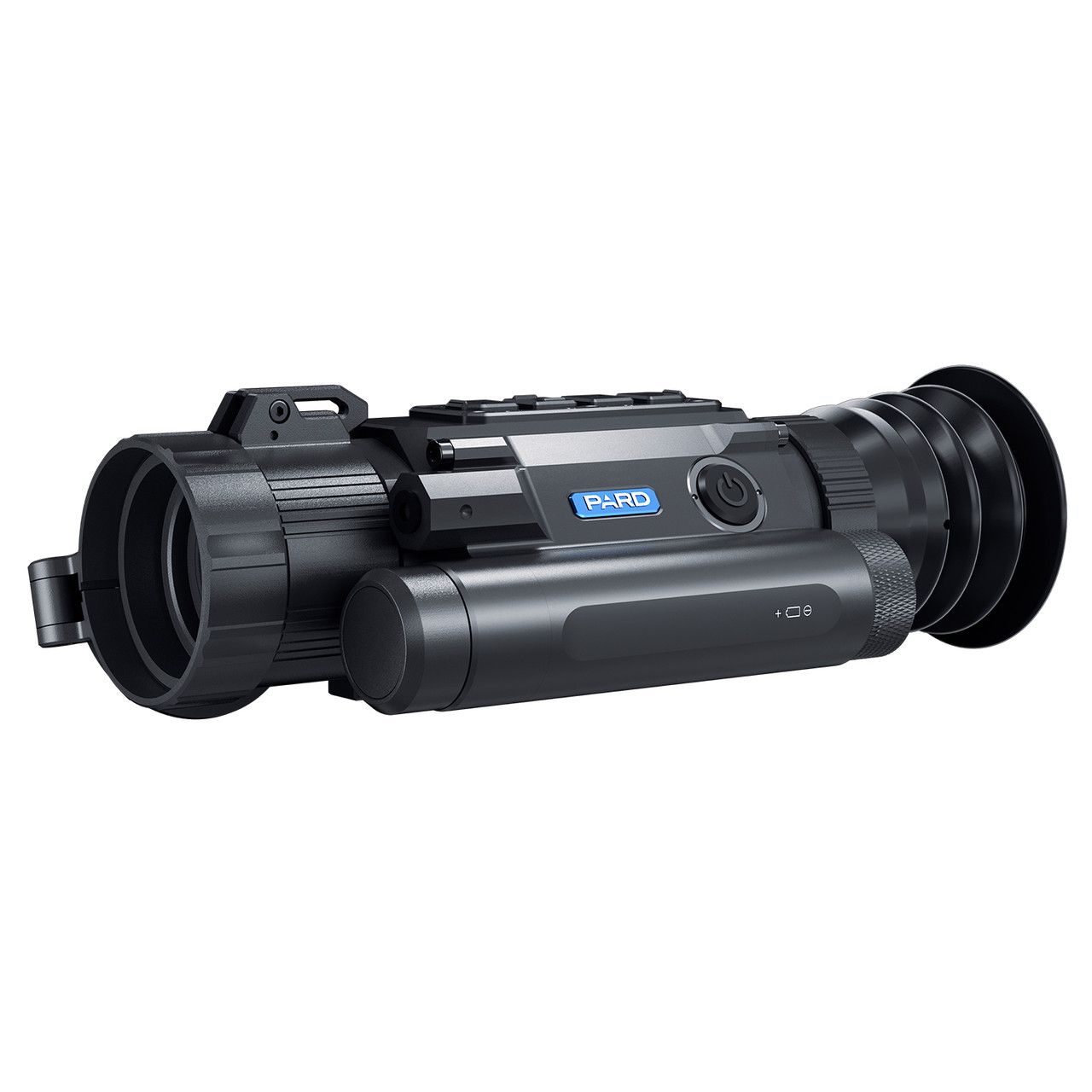

Pard Ocelot 256 Thermal Imaging Scope

Product Details

The Ocelot 256 19mm thermal monocular offers a compact and ergonomic design, weighing just 14.8 ounces and measuring 182 × 68 × 79mm for easy handling in the field. Equipped with a high-sensitivity sensor (NETD ≤ 25mK), it delivers clear thermal images even in low-contrast environments. The variable magnification ranges from 3.2x to 25.6x, providing flexibility for both close-up observation and long-range spotting.

Features

Ultra-Compact and Lightweight Design: Weighing just 14.8oz and measuring 182x68x79mm, this device is an ultra-compact design for easy carry. Perfect for field missions or mobile tasks, it minimizes bulk without sacrificing functionality—ideal when space and efficiency are important.
Crystal-Clear Thermal Imaging: Featuring a high-sensitivity sensor with NETD ≤ 25mK, the device delivers exceptionally sharp thermal images. It detects even the slightest temperature changes, providing enhanced clarity and detail—crucial for identifying targets, tracking movement, and making accurate decisions in challenging visual conditions.
Flexible Magnification Range: With 3.2x to 25.6x variable magnification, this device adapts seamlessly to various observation distances. Whether scanning wide terrain or zooming in for close-up detail, users enjoy smooth transitions and precise focus—ideal for target identification.

Specifications

Type: Uncooled VOx(vanadium oxide)
Resolution(pixel): 256*192
Pixel Size(µm): 12*12
NETD: ≤25mK（ 0.025℃)
Frame rate(Hz): 50
Human Detection Distance(m): 900
Objective Lens(mm): 19
Optical Magnification(x): 3.2
Digital Zoom(x): 2/4/6/8
Field of View (Horizontal): 9.2°
Field of View (Vertical): 6.9°
Field of View (Diagonal): 11.5°
Focus range: 3m-∞
Diopter adjustment(D): -5~5
Eye Relief(mm): 30
Type: OLED
Resolution(pixel): 1024*768
Reticle Style: 5
Reticle Color: 4(Red/White/Yellow/Green)
Scene Mode: City/Rain/Forest
Image Mode: WT-HOT/BK-HOT/IN-HOT/RD-HOT/SKY
Photo resolution(pixel): 1024*768
Photo Format: .JPG
Video Resolution(pixel): 1024*768
Video Format: .mp4
Image Engine: Pard IREA
PIP: Yes
Gyroscope: Yes
Loop Recording: Yes
E-compass: Yes
Storage(GB): Built-in EMMC (32 GB)
Shutter: Mechanical shutter
Microphone: Yes
Firmware Upgrade: Yes
USB Type-C: Yes
WiFi: Yes
Supported Apps: PardVision2
Battery Type: Lithium Ion 18650
Output Voltage(V): 3.7
Operating Time(h): ≤5
External Power Supply: Type-C
Protective Class: IP67
Operating Temp(°C/°F): -30 ~ +55 / -22 ~ +131
Housing: Aluminium Alloy
Objective Lens: All-glass multi-coated lens
Product Dimension(with LRF, L * W * H, mm): 180*65*40
N.W/pcs(with LRF&battery, g): 420
